Steel reinforced rubber fire resistant conveyor belt
Steel reinforced rubber fire resistant conveyor belt to Coal Power Plant

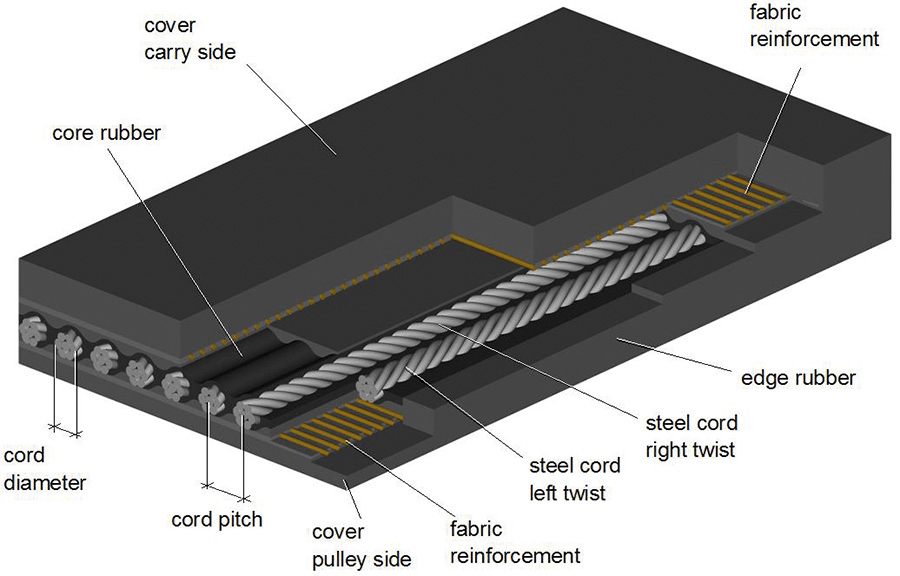

The Steel reinforced rubber fire resistant conveyor belt is a rubber belt with steel cord as the skeleton. Good tensile strength, good impact resistance, long service life, small elongation, into a good groove, has the advantages of good flexure resistance, suitable for long distance and large haul and high speed transportation of materials. The product is made up of cored rubber, steel , cover layer and side glue.
Steel reinforced rubber fire resistant conveyor belt is suitable for coal, mining, port, electric power, metallurgy, building materials and other industries, and requires material transportation under tearing condition. It can be used for long distance, long span, large volume and high speed material transportation.Steel cord conveyor belt is composed of core rubber, steel wire rope, cover layer and edge rubber, anti mildew, moth proofing, anti aging, good heat resistance, high tear strength and surface broken can be refurbished etc.. The characteristic tensile strength is large. Impact resistance, long service life, little elongation, into a good groove, good flexure resistance suitable for long distance, large fortune, high speed transportation of materials.
STANDARDS GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
Technology performance
(1) the performance accords with GB9770;
(2) if there are special requirements for the performance of the covering adhesive, please contact us.
(3) the impact resistance and tearing resistance can be increased by 1~2 times, and the tearing resistance is increased by 0.5 to 1 times.
(4) the minimum working temperature of cold resistant type is -60 C.
| Product name:High Flexibility Standard Weave rough top Fire resistant pvc conveyor belt | |
| Number of fabric: 2 | Color: Black |
| Number of fibre: 2 | Fibre type: Polyester,with lateral stability |
| Material topside: PVC | Profile topside: Weave rough top |
| Material bottomside: Low noise | |
| * TECHNICAL DATA * | |
| Total thickness(mm): 5.0 | Cover thickness(mm): 3.0 |
| Weight(Kg/M2): 4.2 | Maximum production width(mm): 3000 |
| Maximum tension(N/mm): 150 | Tensile force for 1% elongation (N/mm): 10 |
| Hardness toplayer(Shore A): 55 | Temperature article(℃): -10/+80 |
| Minumum pulley diameter flection(mm): 80 | Lateral stability: Yes |
Classification
1, according to the structure: common type and anti impact, tearing resistant type.
2, according to the use: in addition to the common type, there are also wear resistant, heat-resistant, cold resistant, acid and alkali resistant, flame retardant, tearing proof, refractory, ozone resistance and other types.
3 varieties: according to cover the performance can be divided into: ordinary steel wire rope core conveyer belt, flame retardant steel cord conveyor belt, heat resistant steel wire rope core conveyer belt, wear-resistant steel wire rope core conveyer belt, cold steel wire rope core conveyer belt, acid type steel wire rope core conveyer belt, oil resistance steel wire rope core conveyer belt, flame retardant steel cord conveyor belt etc.. The strength is higher than that of the ordinary transport belt, and the length is longer. It can reduce the transfer point station and save power and management.
