250lb solid woven PVC ORG

250lb solid woven PVC ORG C x C

250lb solid woven PVC, We are one of the reputed manufacturers of Industrial Conveyor Belt in China which is in high demand not only in the homeland but across the globe. We have got numerous repeated orders for the Industrial Conveyor Belt from our clients. That has been possible due to the unmatched quality and unsurpassable performance of our conveyor belts. Our range of conveyor belts are highly appreciated by our clients due to its high abrasionfeature and availability in various sizes and designs. These are dimensionally accurate as per international standards.

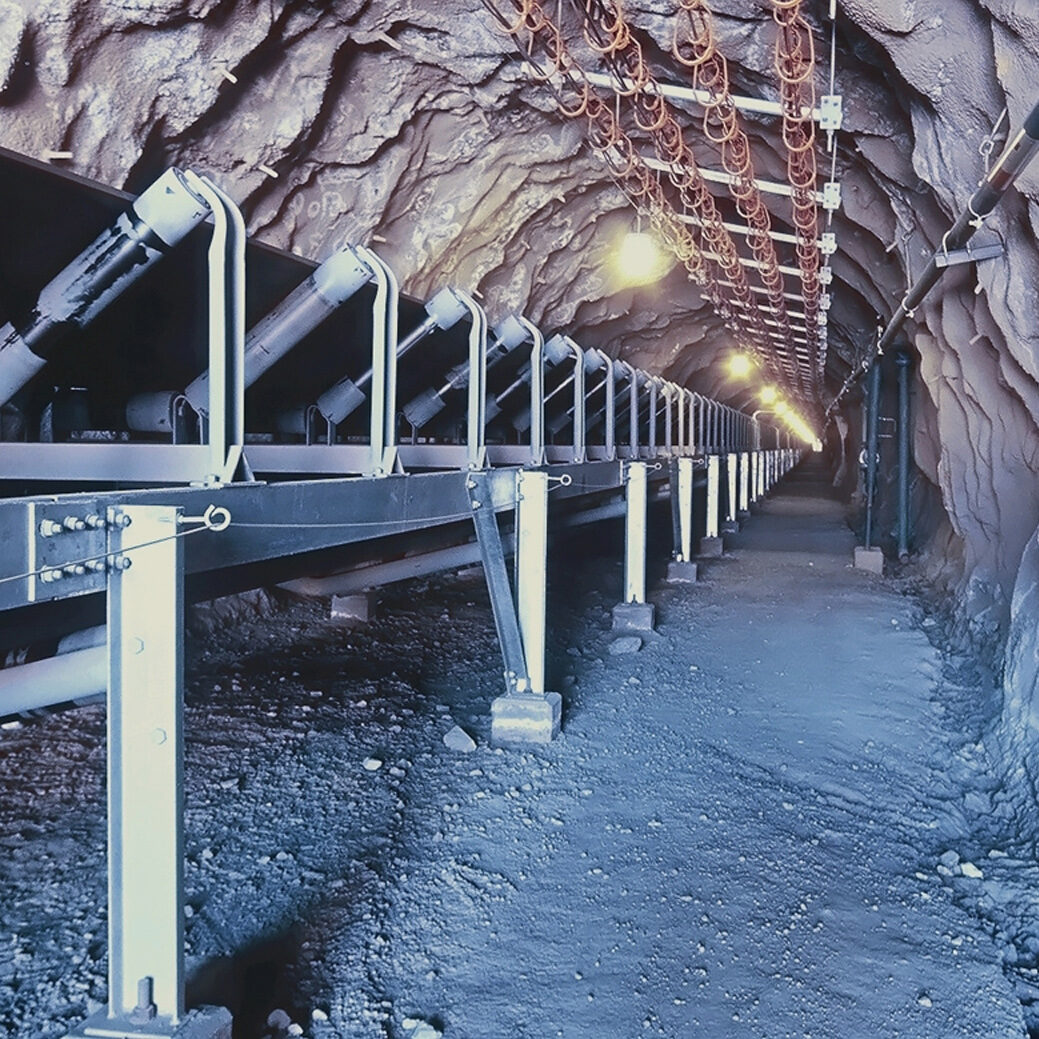

DELIVER CONVEYOR SYSTEM FOR NEW UNDERGROUND COPPER MINE

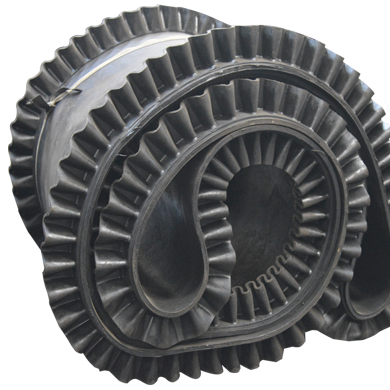

endless sideall belting

PVC conveyor belt professional manufacturer

1800mm, 20000mm, 2200mm Extra Wide Conveyor Belt used by the multi-layer polyester (or to the polyester, polyester weft for amine) bond canvas with a certain way, up and down the high-strength plastic cover, good wear-resistant flexible rubber.

This product is mainly applied to the underground coal transport, but also can be used for metallurgy, chemical industry materials transport.

nylon conveyor belt with high quality at competitive price

PVC680 belting

Nylon conveying belt is made with the nylon canvas woven with polyanide fiber as the framework material and coated with rubber of high performance,It has the features of thin belt carcass,high tensile strength,abrasion proof,impactresistance,strong adhesion between layers,good traction,and long service life.It is suitable to convey materials in medium and long distance,high load,and at high speed,and finds wide applications in mines,metallurgy,construction,and ports.

Product Features:

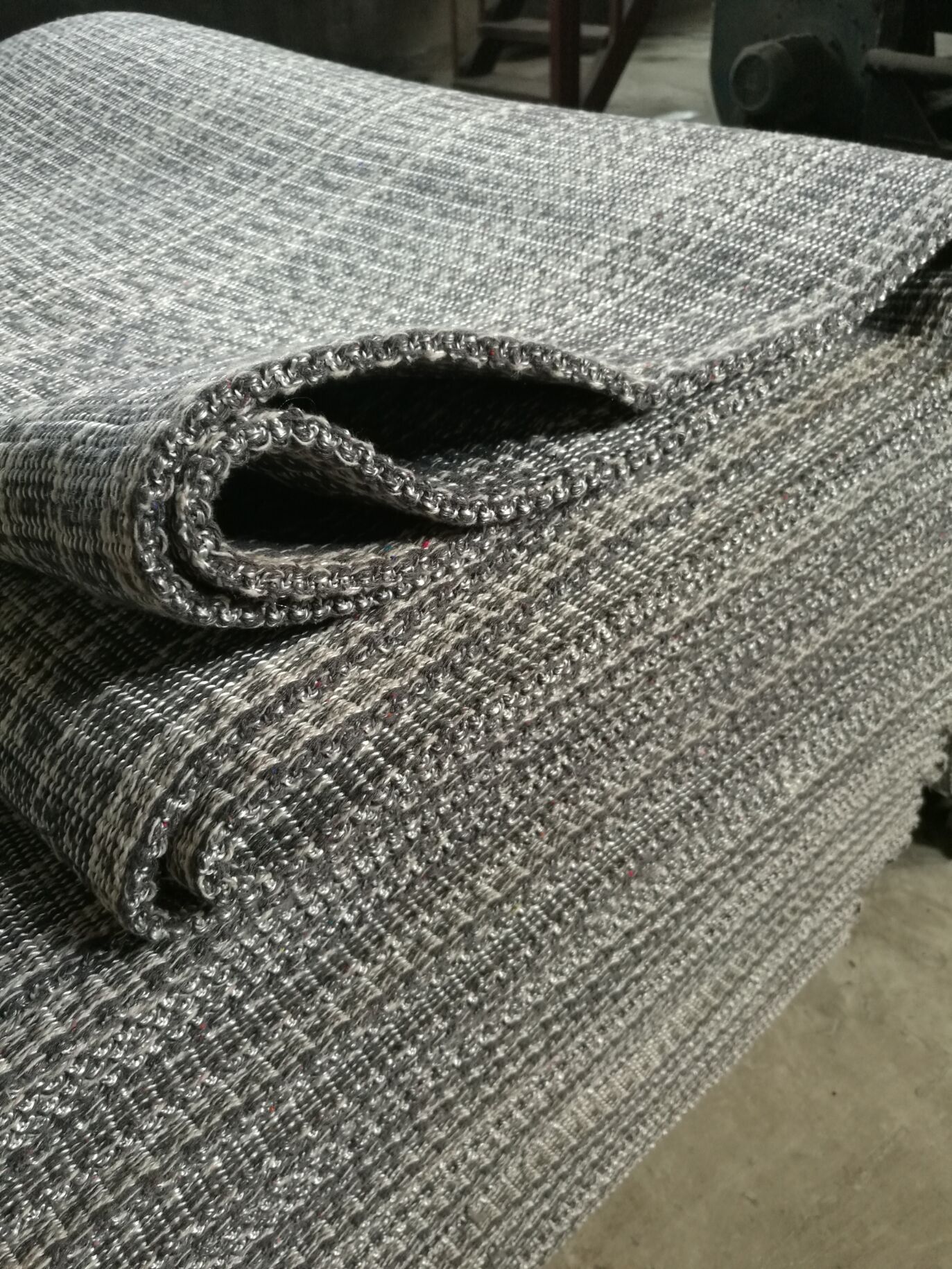

The product consists of solid woven fabric dipped in PVC paste and adding PVC or PVG cover which are combined together by vulcanizing. The belt has good flame resistant and anti-static properties, with high tensile strength in proportion to weight, good integrity and no delimitation, excellent impact and rip resistance. The belt is much suitable to service in the conditions needing fire resistant and antistatic properties as coal mines, power stations, chemical and metallurgy industries.

Note: The following standards are usually applied: DIN22109,AS4606,BS3289,BC158

Classification of solid woven belt

PVC stands for the solid woven belt with PVC cover.

Non pressed PVC type is suitable for applications in dry conditions at a slope angle of no greater than 16 degrees. The belt is non-pressed with cover no more than 0.8mm.

Pressed PVC type, both top and bottom covers are PVC, thickness of each side can be up to 4mm, the belt has much more advantages than non pressed PVC belt on impact resistance, water soaking, with longer service life, higher fastener holding.

PVC 450 solid woven PVC ORG
abrasion-resistant PVC solid woven belt
Monster belting | 250lb solid woven PVC ORG

PVG solid woven belt with PVG cover (nitrile rubber)

PVG type is covered with covers mainly composed of rubber, which further improves the troughability, resistance to wetness and slip, resistance to low temperature, elongation and wear resistance of the belt. Both top and bottom cover are PVG, the belt can be used to carry materials mixing some water at the slope no more than 20°,elongate life of belt
