Anti-tear Fabric Conveyor Belt

Basic Info

Model NO.: ST2500 anti-tearing steel cord conveyor belt
Advantage: Experiences, High Tensile Strength, Impact Resistant
Certificate: ISO9001
Width: 800-2000mm
Coulor: Black Transport
Package: Common or as customer’s requiement
Specification: Customized
Origin: Shandong, China
HS Code: 40101100

Steel Vertical Conveyor Belt

product category

  • HG/T 3646-2014 General purpose anti-tear steel wire rope core conveyor belt
  • HG/T 3973-2007 General purpose Anti-tear Fabric Conveyor Belt flame retardant conveyor belt
  • Embedded coil anti-tear type steel wire rope core conveyor belt

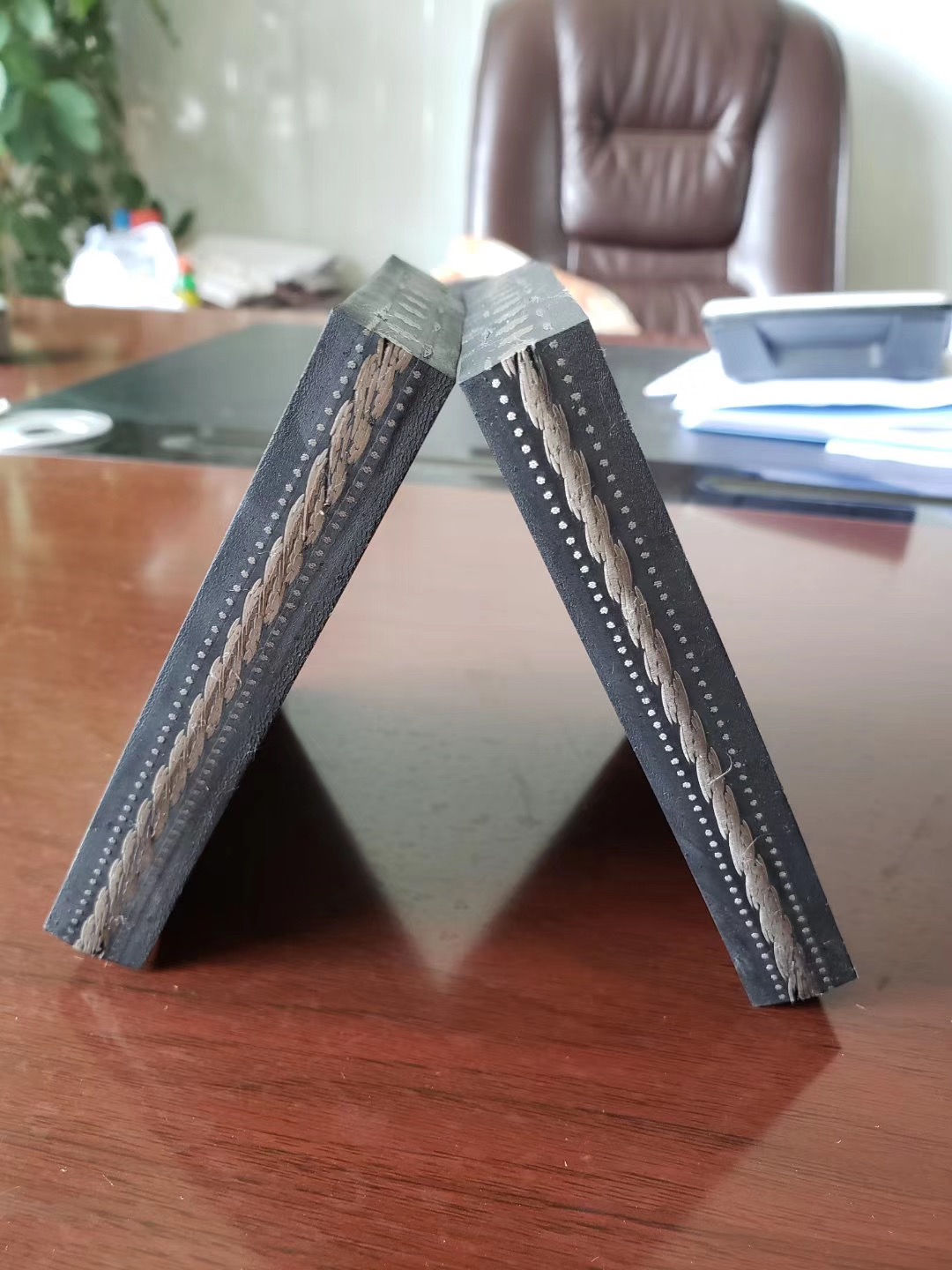

Anti-tear conveyor steel cord belt

Main Features&Benefits

Anti-tear Fabric Conveyor Belt , One of the most important characteristics of services is the participation of the customer in the service delivery process. A customer has the opportunity to get the services modified according to specific requirement.

ST2500 st2000 st1000

Anti-tear Fabric Conveyor Belt _Cover grade

Grade Tensile Strength min.(IOS37) Mpa Elongation at break min.(IOS37) % Abrasion max.(IOS4649) mm3
H 24 450 120
D 18 400 100
L 15 350 200
Ka 15 350 200
Note:Kafor flame-resistant and anti-static belts in accordance width ISO340 and ISO284

Using high strength galvanized steel cord and special compound which is with excellent elasticity, not easy to corrode and giving a longer service life

Serial number Main Features Benefits
1) Zinc galvanized open construction steel cord. Steel cord belts are designed by selecting cord construction to provide the best specification for a particular application. The cords, made up of many wire filaments, are constructed to provide high flexibility, low elongation and permit efficient and high strength splice designs. The galvanized zinc coating produces a bonding agent between the cord and insulation gum and provides an important barrier against corrosion.
2) High tension. Steel cord belts can satisfy the most demanding and abusive conveyor applications. we have continued to advance the technology for high tension belt to meet need for long overlands, high lifting conveyor systems.
3) Lower take-up travel. Steel cord belts are the preferred belt on long overlands and short stacker systems where minimum belt elongation is a critical design consideration. Steel cord reinforcement elongates a maximum of 0.25% at rated tension, allowing for acceptable take-up travel design on long overlands, as well as short Stacker/Reclaimer systems.
4) Longer splice life. Dynamic splice test as prescribed in DIN22131 part 3 proves that the splice life can be as long as best life.
5) High lmpact resistance. Extensive rubber compounding technology has enabled the development of superior insulation gum bonding rubber and cover rubber. The former penetrates and adheres to the steel cord. The result is excellent adhesions, corrosion resistance and high impact resistant cover.
6) Lower cost-per-ton of material conveyed. With stronger and longer per roll steel cord belts, the result is less transfer stations, reduced number of splices, lower take-up traver, and lower inventory. These greatly decreases investment cost. Long splice life reduces maintenance downtime and lower cost-per-ton of material conveyed.
