Aramid belt with cord and straight-warp textile layer

Aramid Belt with Cord and Straight-Warp Textile Layer

Straight Warp (CFW) Textile Conveyor Belt
Straight Warp (CFW) Textile Conveyor Belt

Introducing our advanced Aramid belt (Aramid Breaker Conveyor Belt), engineered for superior performance in demanding applications. This cutting-edge belt combines the strength and durability of aramid cord with the innovative design of a straight-warp textile layer, ensuring exceptional resistance to impact, wear, and cut. Ideal for use in mining, electricity, and ports industries, our belt sets a new standard for conveyor solutions.

The Aramid Belt with Cord and Straight-Warp Textile Layer represents the pinnacle of conveyor belt technology. Its combination of aramid cord and straight-warp textile layer provides unmatched performance in terms of cut and impact resistance, tensile strength, and operational efficiency. Upgrade your conveyor systems with our state-of-the-art belt and experience the difference in performance and reliability.

For more information or to place an order, please contact us. Our team of experts is ready to assist you in finding the perfect conveyor belt solution for your needs.

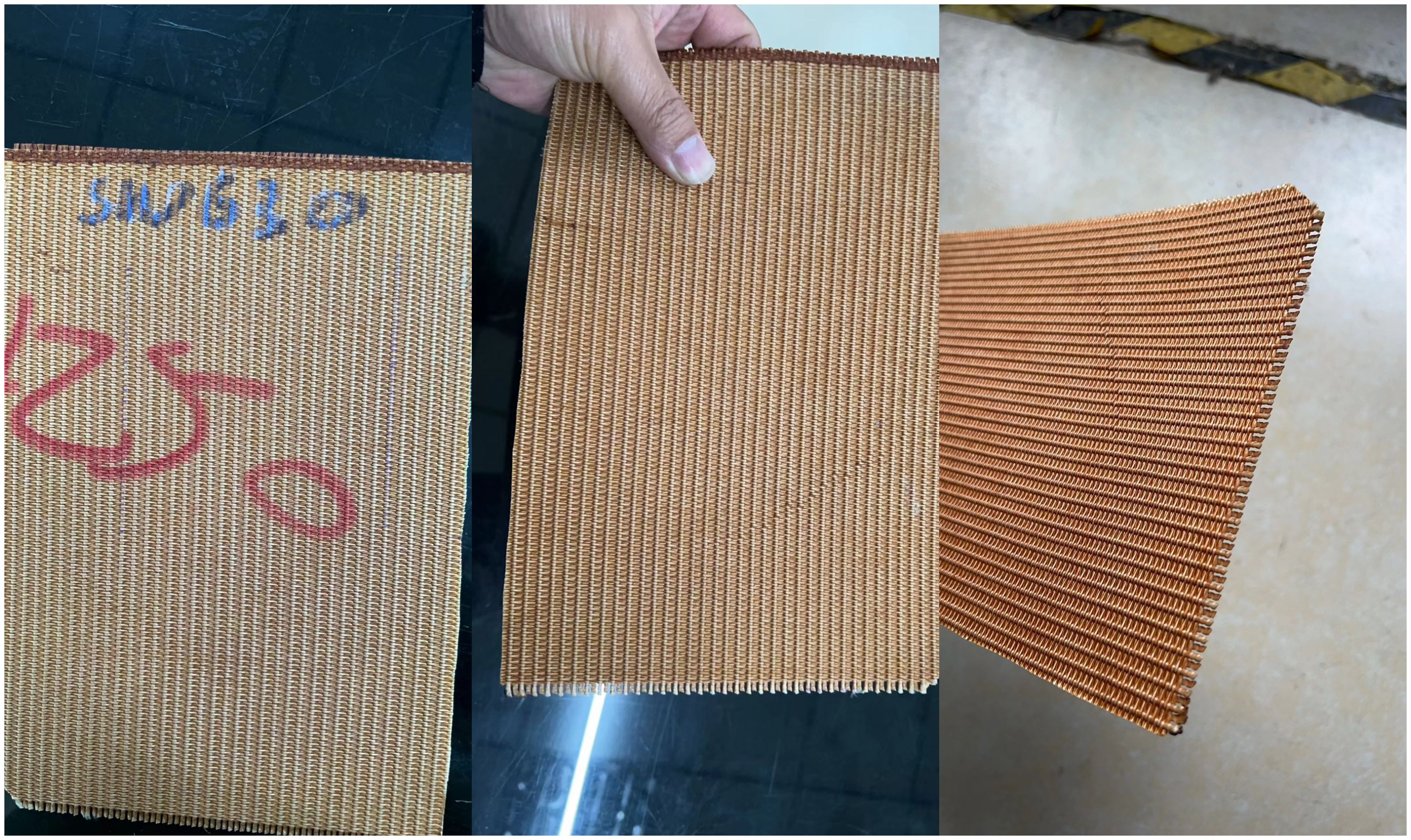

SW Conveyor Belt Straight Warp Conveyor Belt

Key Features and Benefits

1. Superior Cut Resistance: Our Aramid belt with cord and straight-warp textile layer with Cord and Straight-Warp Textile Layer is specifically designed to handle the toughest materials. The incorporation of aramid fibers offers outstanding cut resistance, significantly enhancing the belt’s durability and lifespan.

2. Exceptional Impact Resistance: The unique straight-warp (CFW) textile structure of our conveyor belt absorbs impact forces more effectively than traditional EP or Nylon fabrics. This feature makes it ideal for applications with large drop heights, heavy loads, and high-speed operations.

3. Enhanced Flexibility: The belt’s design allows for the use of 1-2 plies of SW canvass to replace multiple plies of EP or Nylon canvass. This not only reduces the belt’s full thickness by 7-17% but also improves its flexibility, enabling it to run smoothly over smaller pulleys and reach lengths of 400-500 meters, thus reducing production downtime and costs.

4. High Tensile Strength: Thanks to the special weaving method of the SW fabric layer, our conveyor belt exhibits superior tensile strength. This results in lower working elongation, ensuring a more stable and efficient operation over extended periods.

5. Improved Sinuosity: The advanced design of our Aramid Belt improves its sinuosity, allowing it to perform efficiently in applications with complex conveyor routes and multiple curves. This adaptability ensures consistent performance and minimizes the risk of belt damage.

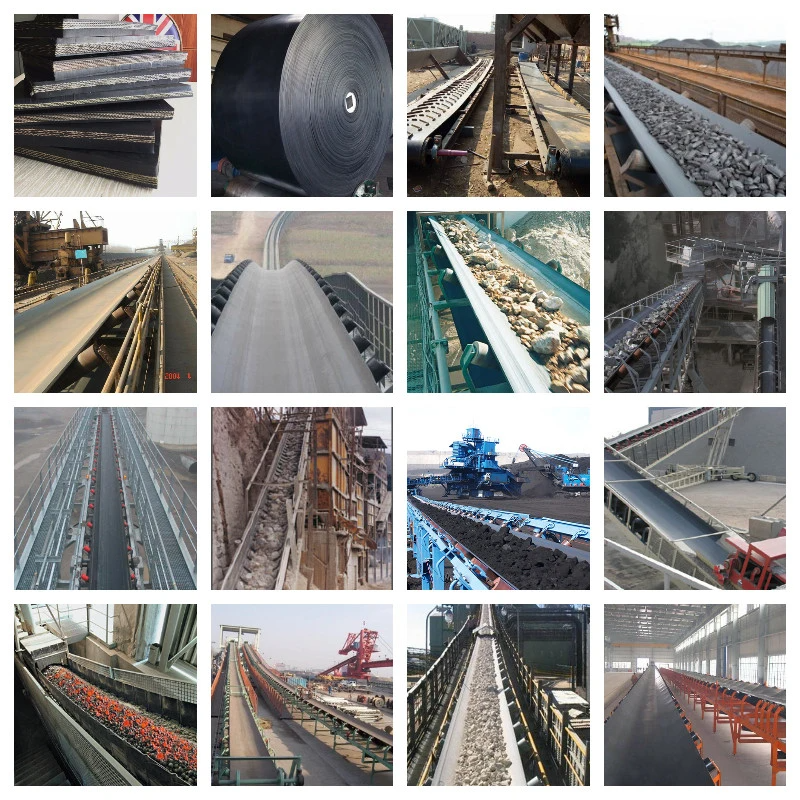

Application:

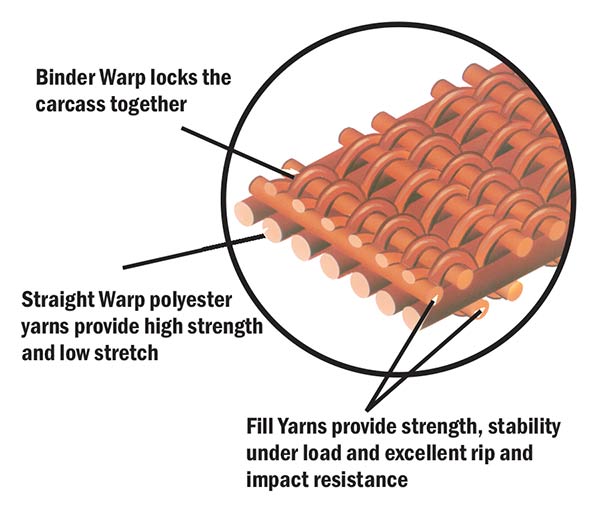

Aramid belt with cord and straight-warp textile layer with Single-ply Belting possesses a unique straight-warp carcass , unlike Conventional crimp weave fabrics. The carcass developed is a total departure from the traditional plies belt concept and constructions.it is designed to carry a large capacity of material and hasa Superior endurance performance in rugged environment.

Monster belting | Aramid belt with cord and straight-warp textile layer

Single-Ply Straight Warp Fabric :
Tension Rating (PIW) 175 220 280 330 440
Fabric Type SW315 SW400 SW500 SW630 SW800
Approx. Carcass Gauge 0.098 in. 0.100 in. 0.110 in. 0.118 in. 0.142 in.



Comparison between reinforcement fabric and common fabric:

SW CFW EP NN
Impact resistant excellent Very good Medium good
weight Light Medium Heavy Light
Trough ability Exellent Medium Medium good
operation stability excellent good good good
Adhesive Ply-ply excellent medium medium medium
Elongation very low less less more
Flexibility excellent Medium Medium Good
Thickness thin medium medium thinner
Applu to smaller diameter pulley excellent Medium Medium good
fatigue durability excellent medium medium good
The kinetic energy saving small medium medium less
Length per roll Ordinary Long Long ordinary

Product Parameters

Technical indexes of CFW Fabric

Fabric Type Breaking strength Elongation at break weight thickness width Peel strength
N/mm % g/m2 mm mm N/mm
CFW200 warp >240 >15 650 0.85 800~2400 ≥8
weft >80 ≤45
CFW250 warp >330 >15 810 1.1 ≥8
weft >90 ≤45
CFW300 warp >350 >15 890 1.25 ≥8
weft >100 ≤45
CFW350 warp >400 >15 1050 1.30 ≥8
weft >105 ≤45
CFW400 warp >460 >15 1080 1.40 ≥8
weft >110 ≤45
CFW500 warp >570 >15 1350 1.55 ≥8
