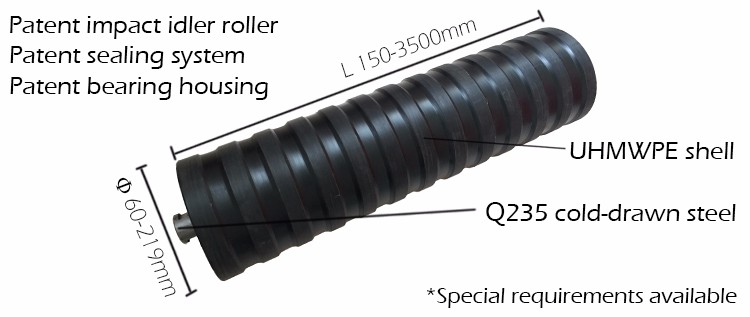

Belt carrier impact roller for underground mining

Belt carrier impact roller for Underground Mining

MONSTER BELTING Top UHMWPE Conveyor Roller Manufacturer Since 1998  including the impact roller, are UHMWPE (ultra-high molecular weight polyethylene), which is a better replacement of rubber, PVC, nylon, HDPE, steel and stainless steel (better abrasion, corrosion, impact resistance. Wided used as bullet proof vest)

impact roller

Belt carrier impact roller  have extremely resistant to abrasion, impact, most corrosive chemicals, microorganisms, static, and flame. Operating temperatures: -40℃to 80℃.  About 50% lighter than steel roller. Ultra-low coefficient of friction (≤0.1mm3) and rotation resistance (≤2.0N). Self-lubricating shell. Lower noise and energy saving. Suitable for High Humidity and High Pollution Environments

Belt carrier impact roller Technical Data

Item Rubber conveyor roller
Certificate ISO9001:2008, BV, Patents
Surface Rubber ring

Inside Pipe

1) Material: roller pipe/carbon steel/Q235

2) Diameter: 51, 60, 63.5, 76, 89, 108, 127, 133, 159mm

3) Thickness:  1.8, 2.0, 2.2, 2.5, 2.75, 3.0, 3.25, 3.5, 3.75, 4.0mm

 Shaft 1) Material: A3/45#steel

2) Diameter: 20, 25, 30, 35, 40mm

Bearing 1) Type: Deep groove ball bearing with C3/C4

2) Size: 6104,6204,6205,6305,6206,6306,6307,6308

3) Brand: C&U/HRB/LYC/ZWZ/NWH/SKF/NSK

Bearing housing Pressed housing, cast iron bearing housing, polymer housing
Seals 1) Type: general use(nylon), Double labyrinth seal,TR seal

2) Grease: Lithium grease lubricant

3) Feature: multiple labyrinth seal, water proof, dust proof

Welding Automatic double end weld bearing housing
Color Black
MOQ 50 pieces
Packaging Wooden package box,  iron shelf or as require
Loading port Any China seaport
Delivery time 7-15 working days according to the quantity
Transport method by air, sea, express mail, etc.
Application Coal mining industry,cement,steel,harbor,etc
Production  capacity 30000pieces/month
Belt carrier impact roller
