Bucket Elevator lift belting

Bucket Elevator lift belting

Pumping belt

The Bucket Elevator lift belting is designed for the vertical transportation and is mainly used in handling powder or granular materials. It can shorten the distance of transportation by using the buckets fixed on the belt for vertical transportation.

Configuration:
Bucket Elevator lift belting is composted of rubber belt and elevator-bucket. The core of belt has two kinds of structures’ fabric core and steel cord, which can be used for vertical elevated conveying, the requirements need the belt with high strength and low elongation, thus the elevator-bucket belt uses steel core or polyester (polyester fiber) canvas as strength ply of belt.

Specification:
Steel cord elevator-bucket belt  Intensity: 630N/mm~4000N/mm
Customers may select the width of elevator-bucket belt with steel cable core and elevator-bucket with polyester canvas core.

Product data

Bucket Elevator Rubber Belt for Handling Powder or Granular Materials



Performance type
Tensile strength/MPa>
Elongation at break/%≥
Abrasion rate/mm3<
H
24
450
120
D
18
400
100
L
15
350
200
Note: H is used to transport sharp and abrasive materials that strongly damage the belt body, D is used to transport highly abrasive materials: L is used to transport moderately abrasive materials.
 model
Minimum roller diameter/mm
belt model
Minimum roller diameter/mm
ST500
500
ST25OO
1250
ST63O
500
ST28OO
1250
ST800
500
ST315O
1400
ST1000
630
ST4000
1600
ST125O
800
5T4500
1600
ST1400
1000
ST5000
1800
ST1600
1000
ST54OO
1800
ST1800
1000
ST63OO
1800
ST2000
1000
ST7000
2000
ST225O
1000
ST75OO
2200

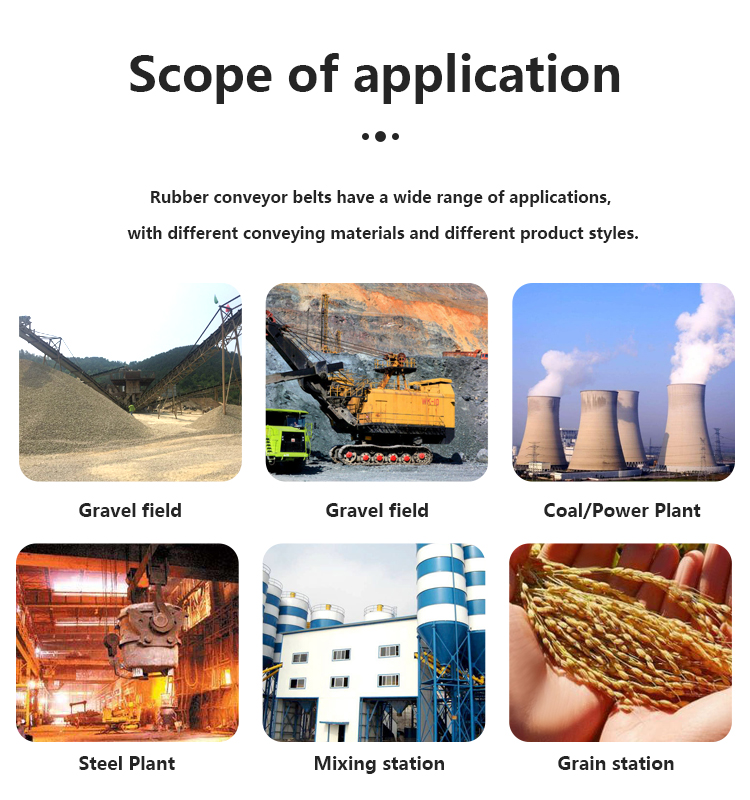

Application:

  • Grain Silos
  • Metallic and Non-Metallic ores
  • Rock products
  • Food Products
  • Chemical Processing products
  • Pulp and Paper products
  • Recycling, compost, mineral processing plants
  • Docks, ship loading and unloading
Cross Stabilized Conveyor Belts (1)
Cross Stabilized Conveyor Belts (1)

Inquiry example:

Polyflex Textile Conveyor Belt with Moulded Edges
2845mm wide; EP630/3, 3Ply, 8+3mm Covers, Grade — X

Additional Information :
Spillage Conveyor and Belt
Belt Manufacturer :          Monster Belting
Designation / Construction :        EP 6300
Design Capacity : tph,90
Belt Speed          : m/s 0.5
Belt Width           : mm 2845
Top Cover / Bottom Cover :   mm 8/3
Belt Overall Thickness    :     mm 17
Splice Type                         : Hot Vulcanized
Centre Distance btw Pulleys       : mm 24814
Takeup Type                      : Screw
Takeup Travel    : mm 300 max

Bucket Elevator lift belt Application
