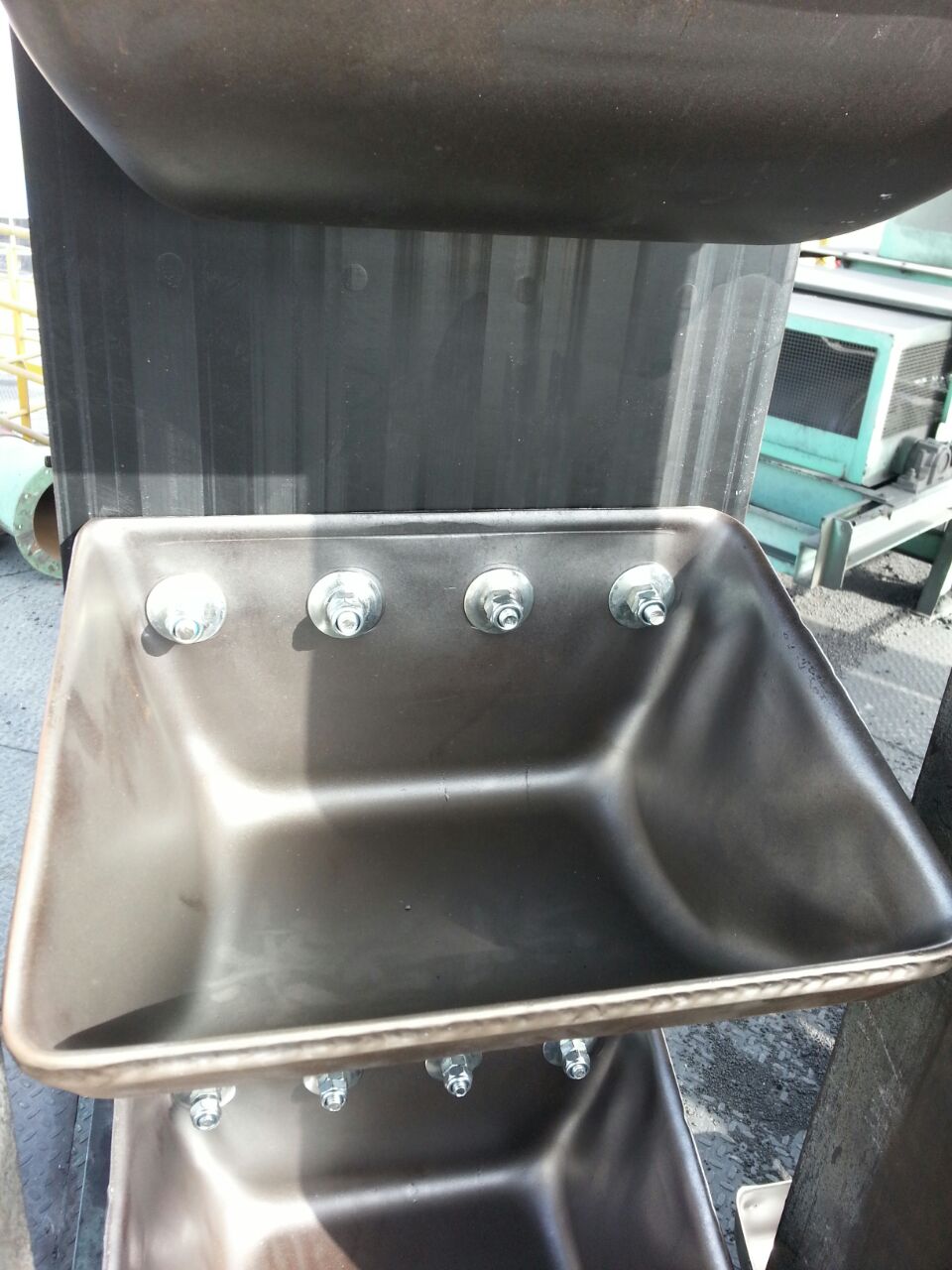

Bucket Elevator Sidewall Belt

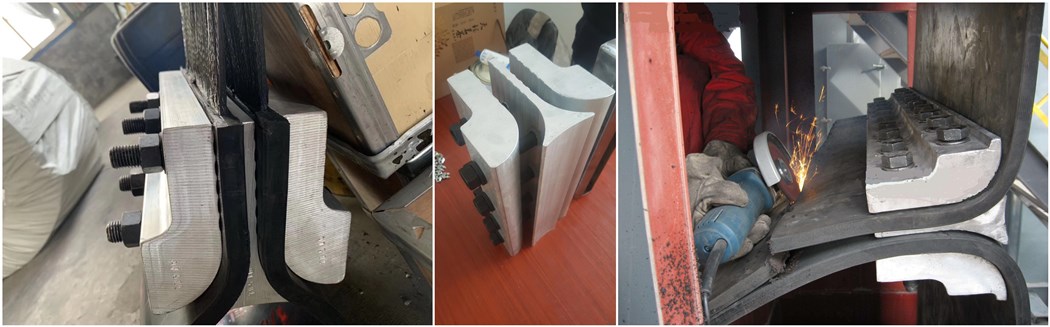

Belt clamping suitable for belt joint,

Bucket Elevator Sidewall Belt

Bucket elevator belt punching hole
Bucket elevator belt punching hole

Specifications

Type: Bucket Elevator Sidewall Belt

Application:Vertical transport/mining/metallurgy/industry

Dimension(L*W*H): Customized Size

  • Abrasion resistant
  • Heat resistant
  • Fire resistant
  • Acid/Alkali resistant
  • corrosion prevention
  • Impact resistant
  • Cold resistant
  • skid resistant
  • Anti-static
  • ozone resistant

Product Features

Small elongation, large conveying capacity, stable operation, convenient maintenance, and good adaptability to bulk materials. This special belt is completely different from the traditional steel cord belt in terms of thickness, steel wire density, warp and weft arrangement, steel wire thickness, etc. This belt forms a steel skeleton in the vertical and horizontal directions, so it can ensure the safe connection of the hopper and the balanced load distribution. The belt is punched by machinery or rhinestones, and the holes have been drilled before leaving the factory. The use effect shows that this special steel wire tape can meet the large conveying volume, ultra-high usage requirements.

Main Technical Parameters

Bucket width (mm) 250 315 400 500 630 800 1000 1250 1400 1600
Bucket volume(L) 5 6.5 14.6 18 29 37 58 73 99 114
Conveying Capacity m3/H Φ100% 85 117 225 280 450 570 950 1255 1547 1780
Φ75% 63 88 168 210 338 428 712 941 1160 1335
Lifting height(m) >100 >100 >100 >120 >120 >120 >130 >130 >130 >130

Notes: 1. The bucket volume is the volume when taking water, Φ is the material filling ratio.
2. The maximum lifting height is the center distance C between the head shaft and the tail shaft.

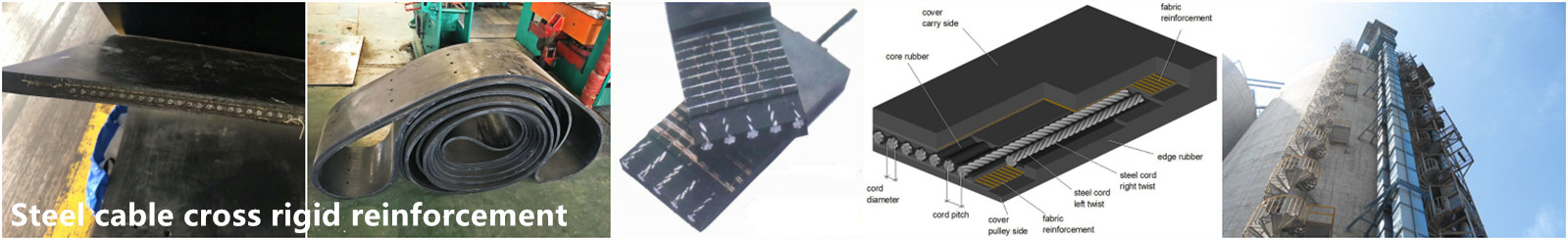

STEEL FABRIC REINFORCED ELEVATOR BELT

Performance:
Bucket Elevator Sidewall Belt is the belt fitted with buckets, it is best suitable for vertical transportation of light or heavy materials, which are widely used in mines, construction, agriculture, chemical, electricity and other light industry.

By difference materials of belt, we can offer:

  1. Steel cord bucket elevator belt
  2. Fabric bucket elevator belt

Technical Data:

Belt Type Belt Type Carcass Type Cover Thickness(mm) Width Range
Top Rubber Bottom Rubber
Conventional
Type
Nylon Belt NN100 – NN400 1.5 1.5 300 – 2200
EP Belt EP100 – EP400 3.0 3.0
Reinforcement
Type
Nylon Belt NN100 – NN400 4.5 4.5 300 -2200
EP Belt EP100 – EP400 6.0 6.0
Steel Cord Conveyor
Belt
ST630 – ST5000
