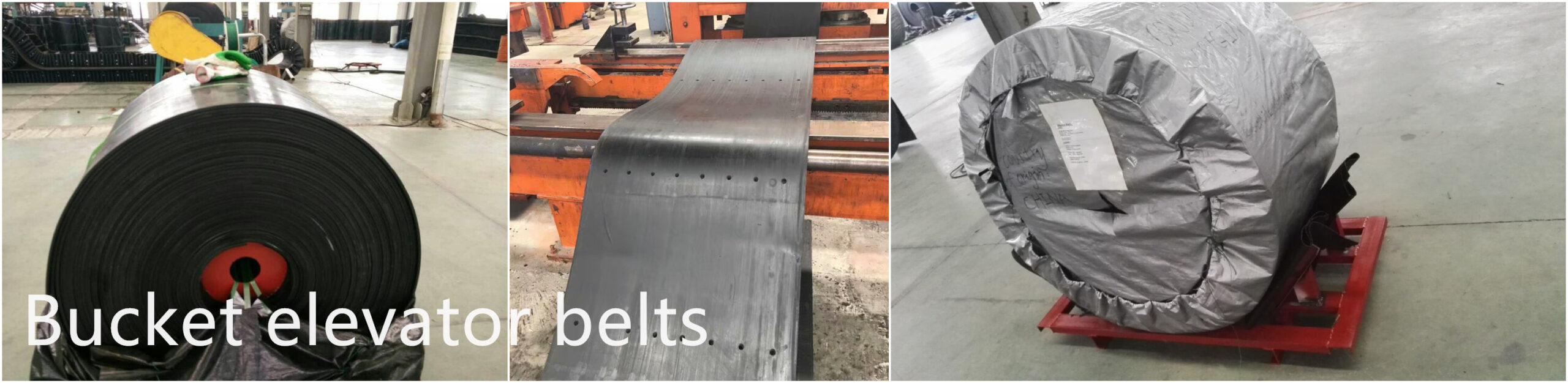

Bucket Elevators Belt
Installation method of belt bucket elevator
Bucket elevator is often used in dry mortar production line equipment. Its specific function is that the bucket elevator is driven by motor to make spiral rotation and push material to achieve the purpose of conveying. Therefore, the installation method of belt bucket elevator is more stringent . The installation method is as follows:
Installation of wire rope belt bucket elevator connector (see photo) the wire rope belt bucket elevator joint device is a special fixture for connecting the steel cord conveyor belt. The installation quality of bucket elevator joint device will directly affect the safe and reliable operation of bucket elevator.
Therefore, installing the connection device is very important.
One end of the rope belt of the bucket elevator has been used to connect the splice hole of the splice device. The other end does not connect the device hole. When the ends of the rope belt are pulled to the top end of the hoisting machine, the lower part of the rope belt is mentioned to the highest position. Position the wire rope adhesive belt joint in the middle of the top roller top. Measure the location of the connection hole at the other end of the adhesive belt with the joint device, and line the hole.

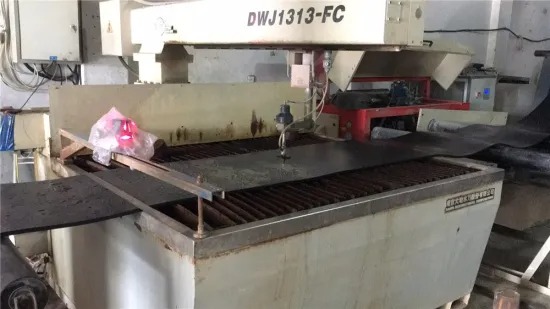

A. put one end of the line, and use the bucket elevator connection device to make the same size hole for the drill drill and the connection device. Note that the center line of the hole should be perpendicular to the center line of the belt. The distance between the two sides of the belt is equal to the distance from the joint device. After drilling the hole at the other end of the belt.
B. place the rubber belt pad in the middle of the two adhesive belt. The two belt splint is placed outside the belt, and put on the high-strength bolt and screw the nut. Adjust the position of the connection device and the adhesive belt to ensure that the joint device is perpendicular to the center line of the adhesive belt, and the two ends are equal to the distance from the adhesive belt. Then tighten the first nut with the spanner and tighten the other nut.
C. the outer part of the joint device is stripped out of the excess adhesive belte and the end of the belt end is longitudinally separated from the outer side of the splint to retain the 100mm long wire rope, and the excess wire rope is cut off.
D. according to figure 1, put the backing plate over the belt end of the wire rope to the upper part of the bucket elevator connecting device.
MONSTER Bucket Elevators, tailor made and continuously developed to suit ever increasing plant and process requirements, offer this availibility combined with performance, flexibility and service life.
Bucket Elevators have become a synonym for efficient vertical
transport of any kind of bulk material under severe operating
conditions and in continuous operation.
• Limestone
• Aggregates
• Clinker
• Slag
• Cement
• Gypsum
• Coal
• Ores
• Fly ash
• Raw meal
• others
