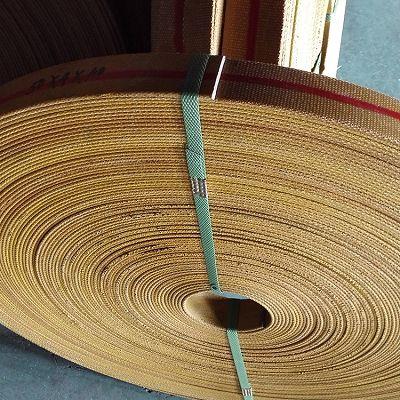

CANVAS TRANSMISSION BELT
High quality flat rubber CANVAS TRANSMISSION BELT drive.

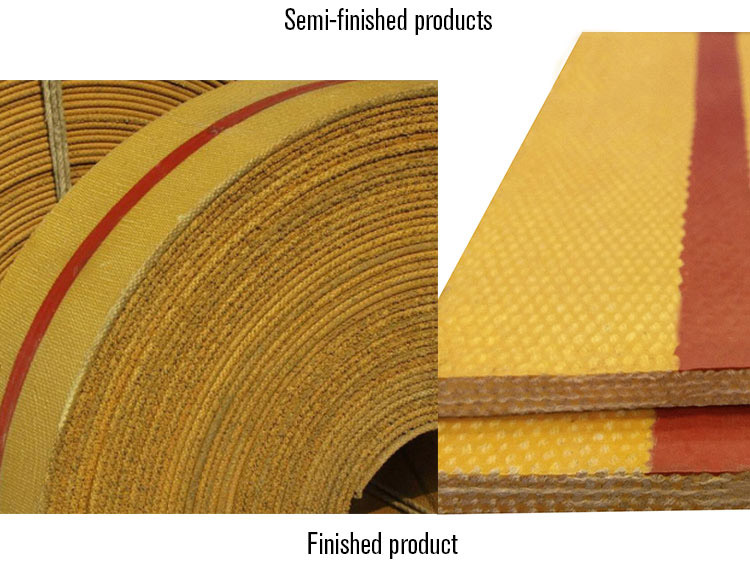

Features: Also called flat rubber belt, which select high quality cotton canvas as its skeleton layers. The surface of the canvas is scrubbed or coated with appropriate rubber, and then several layers of rubber canvas adhere together to form the flat rubber belt. The finished flat belt is jointed end to end by hot vulcanization, then forms endless flat belt. The belt core strength of joint can reach 90% of belt body strength, no obvious jointing defects on the belt surface.
CANVAS TRANSMISSION BELT includes 28OZ, 32OZ and 36OZ. And it can be divided into two types according to structure: Fold edge type & cut edge type.

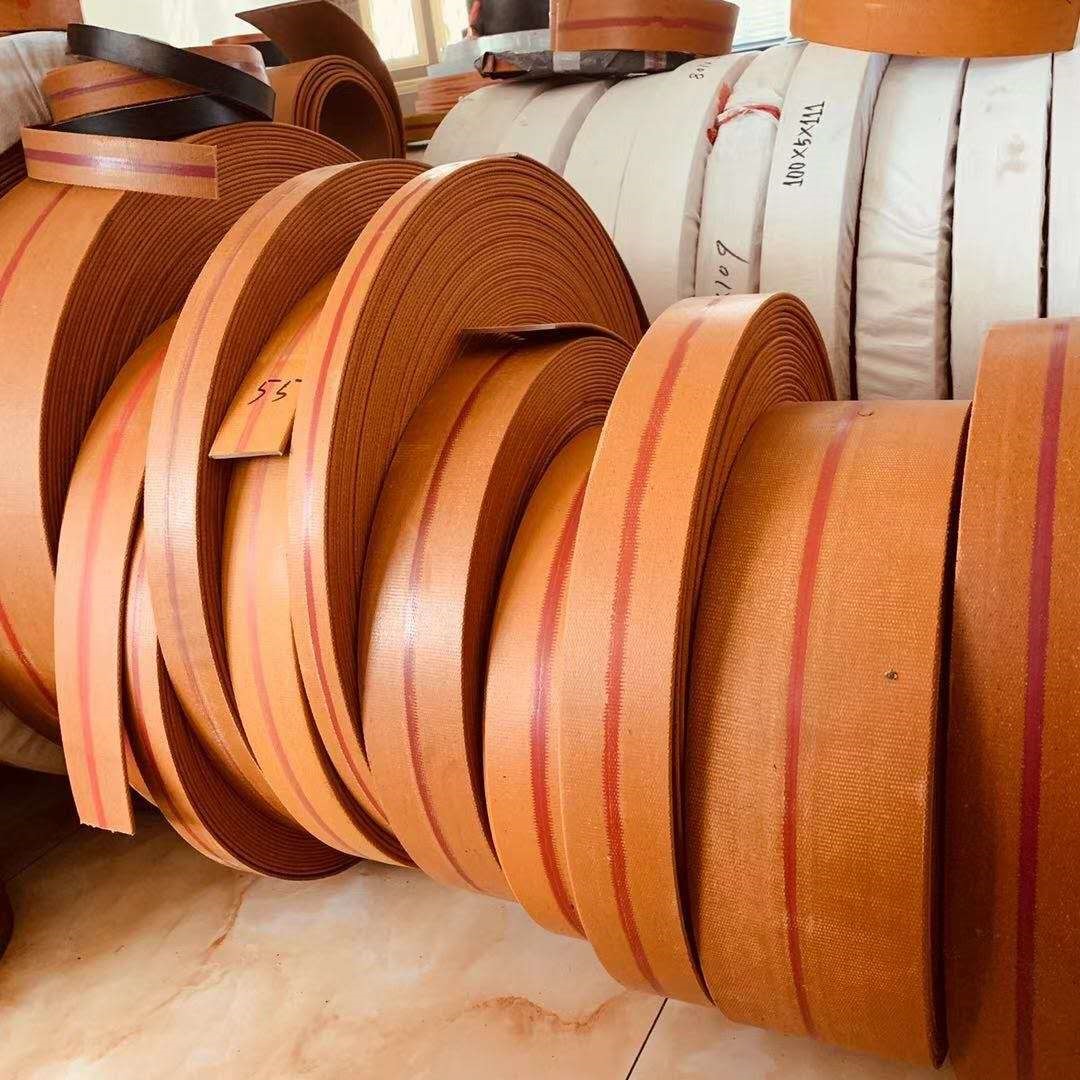

Colors: Sandy beige, bright yellow, orange, black etc.
Usage: Mainly used in machinery transmission, high power rice- flour processing, Agricultural irrigation, wood cutting, combine harvester and related industrial and agricultural power equipment.
Techincal Data GB524-89
| Tensile Strength Specifications | Longitudinal Min.value | Crosswise Min.value |
| N/mm | Kn/m | Kn/m |
| 190 | 190 | 75 |
| 240 | 240 | 95 |
| 290 | 290 | 115 |
| 340 | 340 | 130 |
| 385 | 385 | 225 |
| 425 | 425 | 250 |
| 450 | 450 | / |
| 500 | 500 | / |
| Model Number: | 28OZ/32OZ/36OZ |
| Edge: | Molded edge / Cut edge |
| Color: | Yellow, Black, Green, Orange, Brown etc |
| Thickness: | 1.0mm/ply~1.6mm/ply |
| Width: | 25mm~1400mm 1 inch~55 inch |
| Ply: | From 2ply to 12ply |
| Model type: | 28OZ/32OZ/36OZ |
| Types of fabric: | CC56-TC70 |
| Standard: | ISO 9001:2008,CAS, |

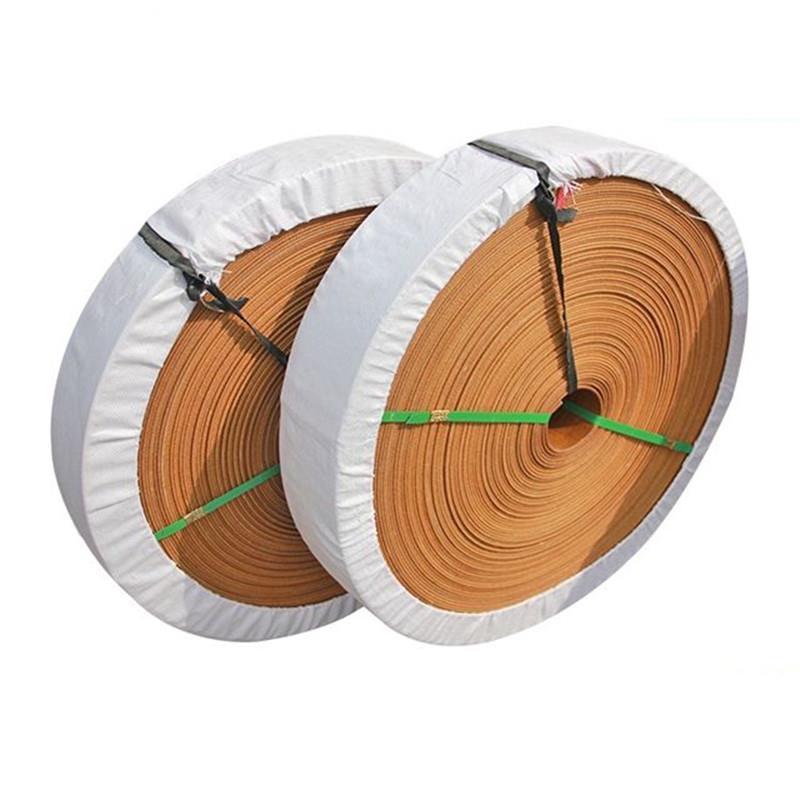

| Length | 100M,106M per roll |
| temperature range | -35C° ~ 65 C° |
