Chevron Rubber belt

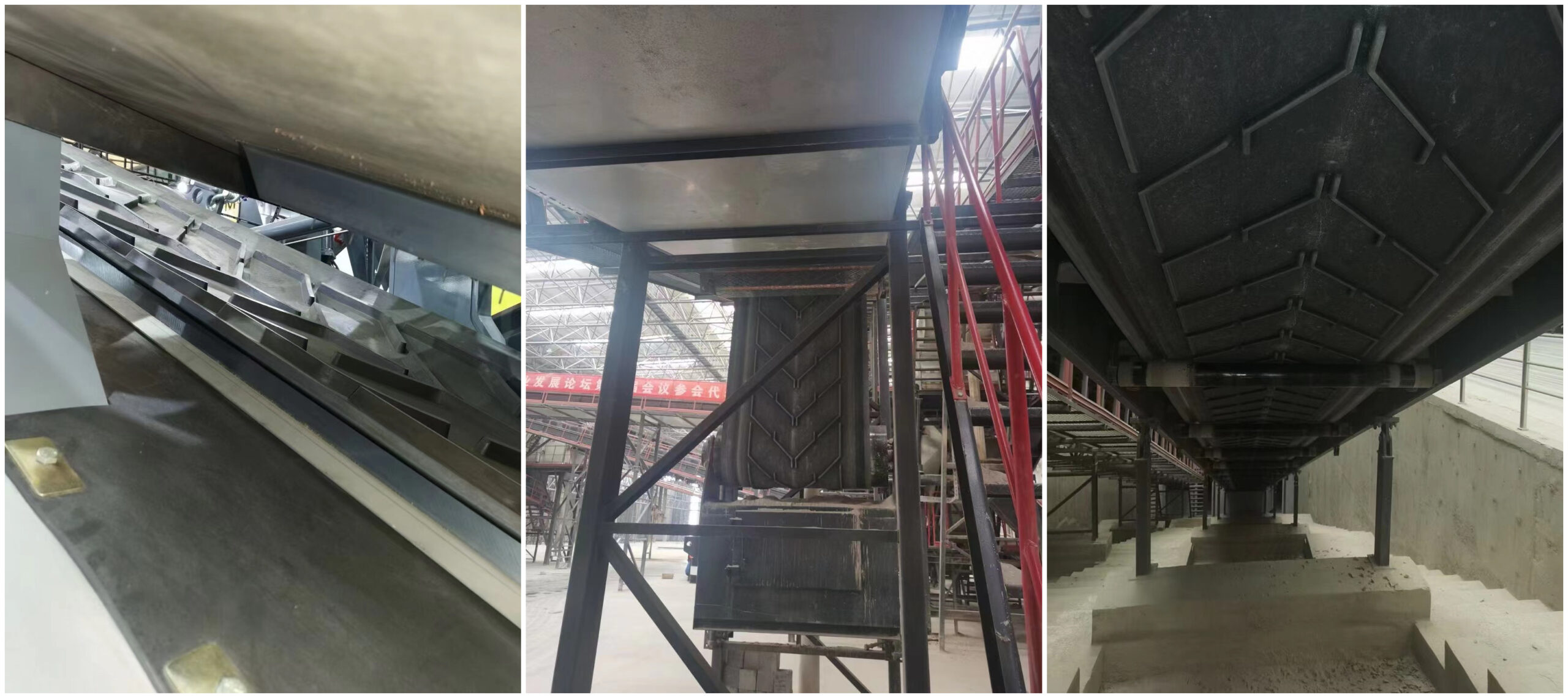

Chevron conveyor belts are used for transporting wet materials and bulk (coal and ores, powders like sand, fine coal and granular materials) in inclined plane. The chevron conveyor belt pattern prevent or reduce slipping and increase the quantity of conveyed product. Can carry bulk materials at 17-18° angles and packed materials at 30-50° angle.

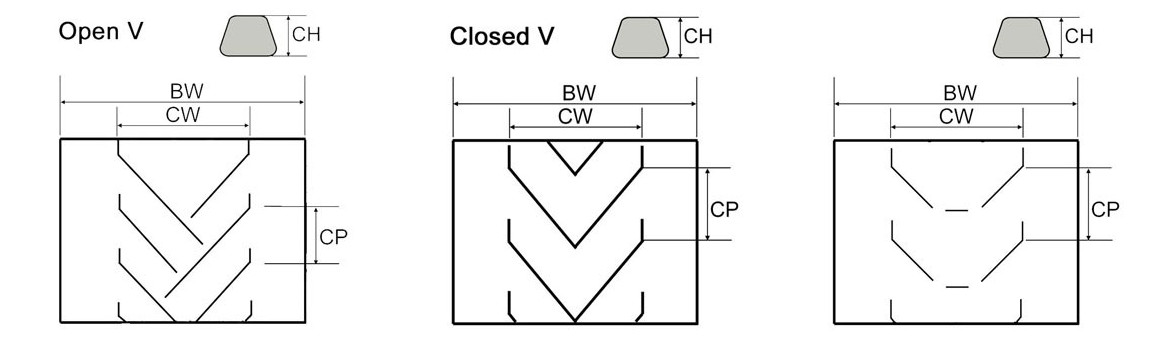

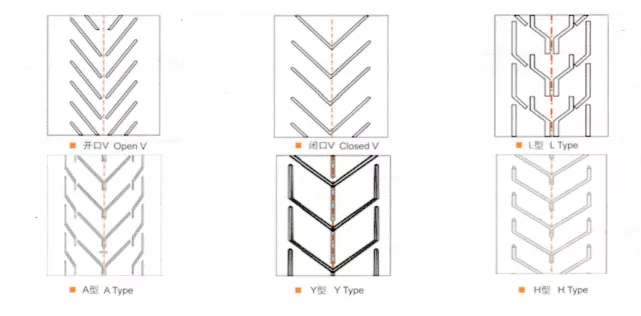

Chevron belt specification : Open V,Closed V,L Type,H Type,Y Type,A Type and F Type,etc. And we also can Design the Chevron Types Based customers.

Y32 chevron belt coal and ores, powders like sand

Advantages

Cleats and pitches are designed to keep balanced for the return path. Cleats and the base belt are vulcanized as a whole,which shows a good performance of adhesion and generate a long working life. The Patterns on the surface can keep the carrying materials from slide and largely increase the efficiency of conveying.it’s used in quarries,sandpits,cement industry,lime industry,farms,salt mines,as well as mobile crushers and screening equipment.

Chevron conveyor belts can be used at temperatures from -30°C to +150°C.

Chevron conveyor belts carcass

Chevron conveyor belts layer is manufactured from the following fabrics: insertions of polyamide/polyester (EP), polyester/polyester (EE) and polyamide/polyamide (PP).

We can manufacture on demand a diversified range of Pattern conveyor belts, our factory have a plenty of pattern molds.

Type of covers, category of covers	General use				Temperature resistant		Oil resistant
Type of covers, category of covers	W	X	Y	Z	T2	T3	MOR	G	ROS
Tensile strength, daN/cm2, min	180	250	200	150	150	120	150	140	150
Elongation at break, %, min	400	450	400	70	450	350	350	350	350
Abrasion resistant, mm3, max	90	120	150	250	150	200	200	200	150
Resistance at oils	No	No	No	No	No	No	Medium	Good	Very good
Maximum temperature of the material, C0聽[max]	70	70	70	70	120	150	70	70	70

Our workshop

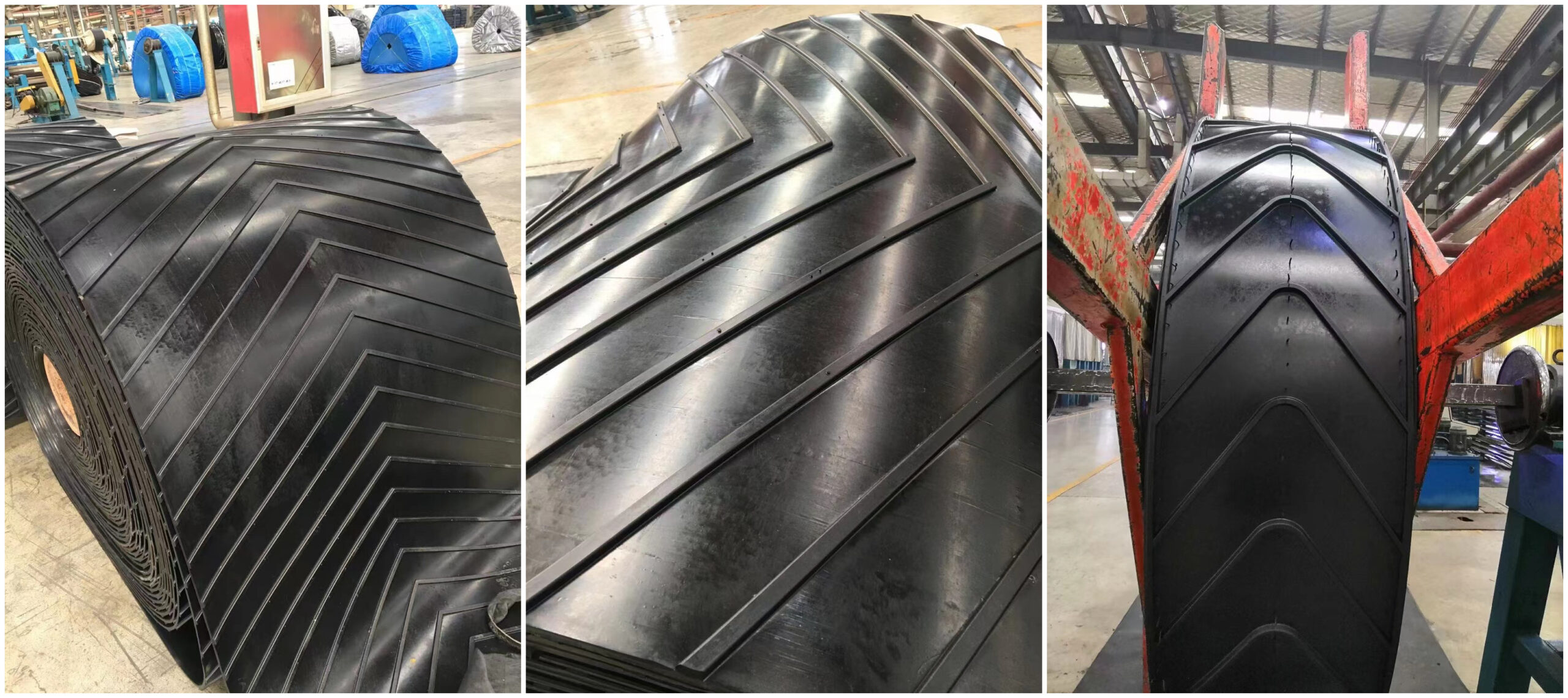

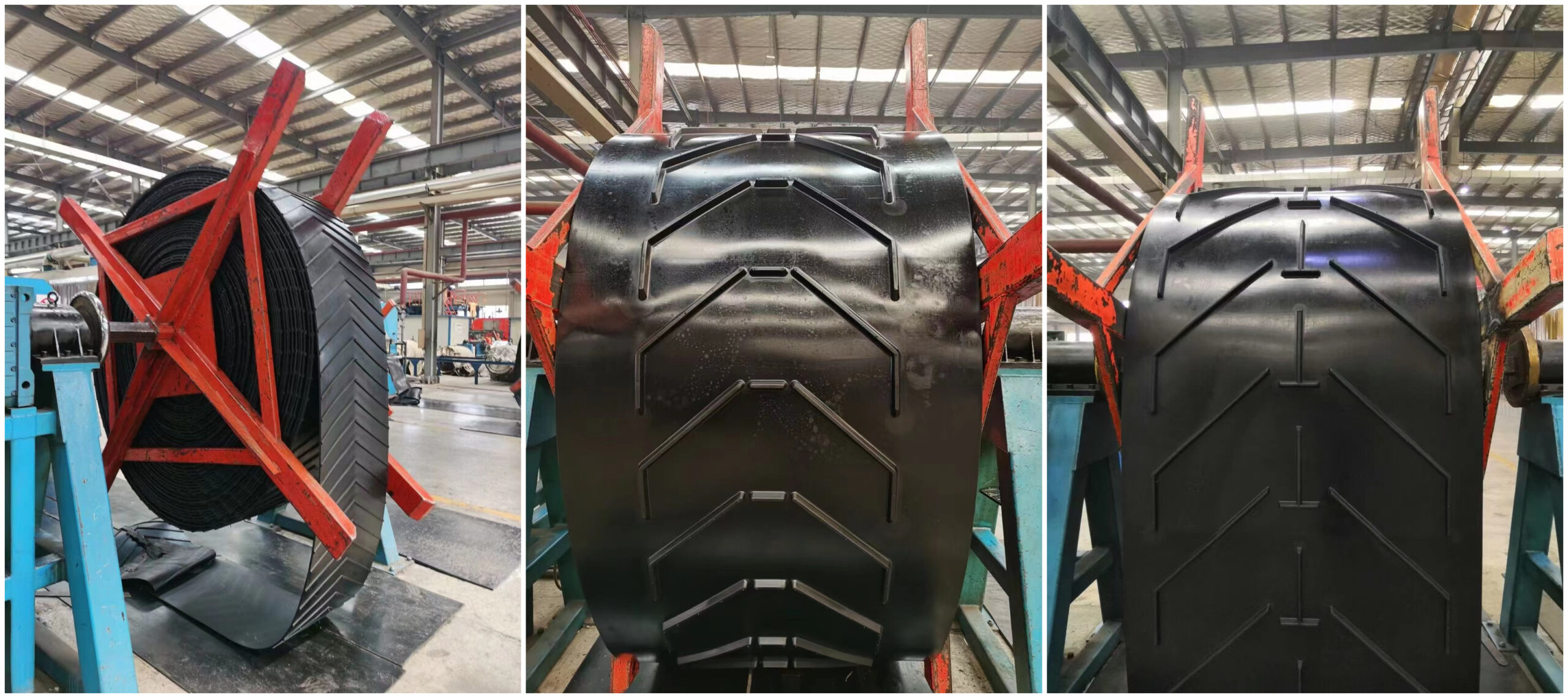

Pattern Type V & C

Selections:

Selection the type and height of cleats depends on the material to be conveyed and the angle of inclination:

Type of material	Material example	Max. angle of inclination
		Height of cleats
		H(mm): 14	H(mm): 16	H(mm): 25	H(mm): 32
Powdery	Flour, etc.	25°	25°	28°	30°
Loose flowing	Corn, barley, wheat, rye, etc.	20/25°	20/25°	25/30°	25/30°
Loose rolling	Gravel, ground stone, etc.	25°	25°	28°	30°
Sticky	Wet sand, ash, wet loam, etc.	30°	30/35°	35/40°	40/45°
Packed	Sacks, paper sacks, etc.	30/35°	30/35°	35/40°	35/40°
