Coal mine nn-100 rubber conveyor belting

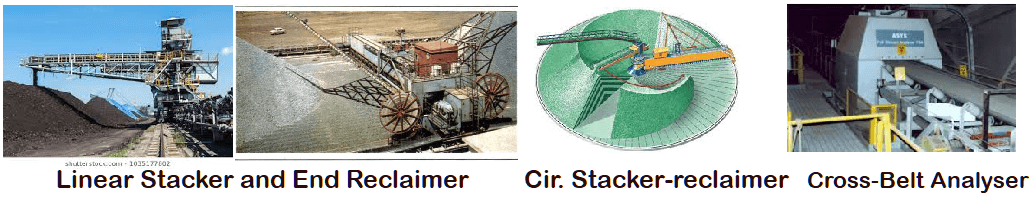

Pre-Homogenization(Stacking and Reclaiming) belt

staking and reclaiming

Stacker
Receives crushed material from the crusher. It consists of a movable carriage which moves on rails along the planned piles. Stacker belt goes over this movable carriage and drops material it is carrying on a cross belt which reaches up to the center of the stock pile and which can move upward and downwards. Material is dropped from this belt, as the main belt moves rate along the pile. When cross belt reaches the end of travel, carriage starts moving in reverse and drops another layer on the pile. Pile thus gets built up in layers with hourly material variation distributed along the pile length to accomplish blending of material.

Reclaimer
Reclaimer consists of a hoe or a rake which extricates crushed material in layers of small thicknesses. Extricated material falls on conveyor running across the width of the pile and drops it on a belt to take it to respected feeding hoppers of grinding section. Thus the hoe and conveyor also move on rails for entire length of the pile. Speed of travel of carriage can be varied as required. Angle of hoe may also be adjustable to suit angle of repose of the material reclaimed from the pile.

1) Fabric cloth: EP100 EP125 EP150 EP200 EP250 EP300 EP400
2) Tensile strength: 8MPA 10MPA 12MPA 15MPA 17MPA 20MPA 25MPA
3) Belt width (mm): 200 – 1600
4) Tension resistant body:
Canvas woven by polyester in warp and nylon in weft.

Features:
Cover Compounds: Grade P, Fire-resistant, Oil resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.Steel cord conveyor belt
1. High tensile strength:Steel cord conveyor belt is suitable for large span,long distance transportation of materials
2. Small elongation in use:It need only a very short take-up stroke distance.
3. Small diameter of drive pulley:Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue.Therefore,drive pulley of smaller diameter can be used to make the equipment smaller.

Steel Cord Conveyor Belt ,EP/NN/CC Conveyor Belt , Chevron Conveyor Belt ,Sidewall Conveyor Belt , Bucket Elevator Belt, Endless Conveyor Belt

Cover rubber propertiesDIN22102

Item

Unit

Cover Rubber Properties

W

X

Y

Z

Tensile Strength≥

N/mm2

18

25

20

15

Elongation at Break≥

%

400

450

400

350

Abrasion≤

mm3

90

120

150

250

AdhesionDIN22102N/mm

Item

Cloth to Cloth

Rubber to Cloth

Cover Rubber≤1.5mm

Cover Rubber>1.5mm

Maximum≤

20

20

20

Average≥

5

3.5

4.5

Minimum≥

4

2.5

3.5

Recommended minimum pulley diameter (for information only)
