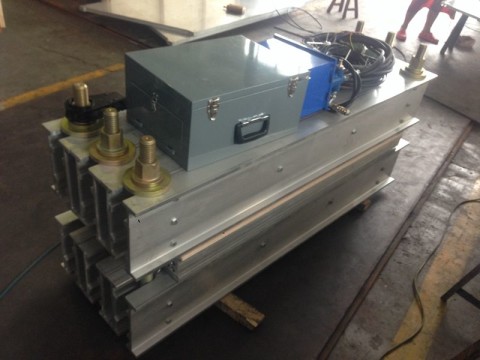

Conveyor belt Hot Vulcanizing Joint machine
Qingdao Monster belt vulcanizing machine, one-time completion of the vulcanization process. Our conveyor belt vulcanizing are used to hot splicing two pieces same type coveyor belt together. No matter fabrics conveyor belt steel-cord convyor belt or other heavy duty conveyor are suitable. The conveyor belt can be 650-2200mm in width, and the curing lenth is according to the conveyor belt and customer request.
800X500 conveyor-belt-joint-vulcanizing-machine
1000X830 conveyor-belt-joint-vulcanizing-machine
1200X1000 conveyor-belt-joint-vulcanizing-machine
1200X800 conveyor-belt-vulcanizing-joint-machine
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
NO.1 INTRODUCTION OF CONVEYOR BELT VULCANIZER
Conveyor belt vulcanizer, also called conveyor belt vulcanizing press or belt vulcanizing press machine. It’s vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).
NO.2 TECHNICAL PARAMETERS
1. Vulcanization pressure 1.0-2.0 MPa;
2. Vulcanization temperature 145°C;
3. Difference in surface temperature of vulcanized plate ± 2°C;
4. Heating up time ( at normal temperature to 145°C )<25 minutes;
5. Voltage 220V/ 380V/415V/440V/480V/550V/660V, 50/60HZ, 3PHASES;
6. Temperature adjustment range 0 to 199°C;
7. Timer adjustment range 0 to 99 minutes;
| Model | Belt width (mm) | Power KW | Dimension (L×W×H)mm | Weight KG |
| ZLJ-800 | 800 | 11.2 | 1280×830×630 | 650 |
| ZLJ -1000 | 1000 | 14.1 | 1480×830×630 | 700 |
| ZLJ -1200 | 1200 | 16.5 | 1680×830×710 | 900 |
| ZLJ -1400 | 1400 | 18.6 | 1930×830×760 | 1100 |
| ZLJ -1600 | 1600 | 21.1 | 2140×830×800 | 1320 |
| ZLJ -1800 | 1800 | 23.3 | 2300×830×850 | 1480 |
| ZLJ -2000 | 2000 | 25.6 | 2600×830×950 | 1860 |
| ZLJ -2200 | 2200 | 27.3 | 2830×830×980 | 1980 |
And more products , we have similar types of Vulcanizing Equipment For Steelcord Belts, 200PSI Pressure With Fast Water Cooling System ,With Hydraulic Construction, Cross Beam Profiles With Hydraulic Pressure System, Without Pressure Bag. Spot Conveyor Belt Repair Presses, Light Weight, Used For Rubber Conveyor Belt Spot Repair; Avaiable In All Desired Dimensions ;Pressure C-Clamps Made Of Aluminium Alloy,Maximum Resistance To Bending With Minimum Weight
