Conveyor belts with cleats and corrugated sidewalls

Conveyor belts with cleats and corrugated sidewalls. We offer cold and hot vulcanised corrugated sidewalls, cleats and guide profiles, depending on the application.

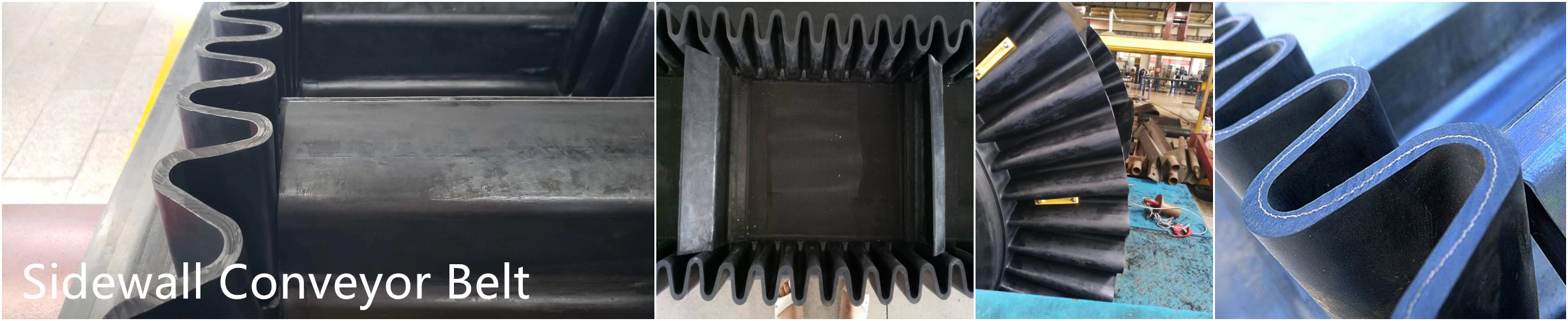

The concept comprises a cross rigid standard belt with flexible
corrugated sidewalls and transverse cleats, which create “compartments” between cleats along the belt length. Compartment dimensions vary depending on the size of the material conveyed and required belt capacity.

The advantages of Conveyor belts with cleats and corrugated sidewalls:
• Capacity increased by up to four times compared to a conventional
conveyor belt of the same belt width
• Space-saving solution – the belt can run at an angle of 90 degrees
(i.e. vertically)
• Protects material from friction and impact
• Possible to change belt direction without switching to a new belt
• Innumerable combinations of standard belting, corrugated sidewalls and
cleats – the sky is the limit
corrugated sidewalls are available in heights from 40 to 600 mm. The sidewalls are extremely rigid in the transverse direction, which is significant for direct return support. In combination with lateral flexibility and strong resistance to wear-and-tear, the sidewalls are extremely wear-and impact-resistant, ensuring extended belt service life.

Cleat Type	Mould	Height(mm)	Width(mm)	Weight(kg/m)	Min Pulley Dia(mm)	Production Length(mm)
	NS	35	55	0.5	100	3000
C	HX	55	65	0.72	125	3000
	NS	55	75	1.5	125	3000
	HX	75	90	1.24	150	3000
	NS	75	95	2	150	3000
	NS	90	110	2.3	250	3000
	HX	110	100	2.59	315	3000
	NS	110	110	2.95	315	3000
	NS	140	150	5.68	400	2500
TC	HX	36	55	1	100	3000
	HX	55	65	1.13	125	3000
	HX	75	65	1.23	150	3000
	NS	75	85	2.03	150	3000
	HX	90	100	1.8	250	3000
	NS	90	110	2.96	250	3000
	HX	110	100	2.32	315	3000
	NS	110	110	3.67	315	3000
	HX	140	110	3.33	400	2500
	NS	140	150	5.96	400	2500
	HX	180	110	4.53	500	2500
	NS	180	148	7	500	2500
	HX	220	140	7.73	630	2500
	HX	230	140	8.8	630	2500
	NS	230	157	9	630	2500
	HX	240	160	11.81	630	2500
	NS	280	160	13.44	800	2500
	HX	20	40	0.28	75	3000
	NS	20	40	0.28	75	3000
	HX	25	40	0.3	75	3000
T	NS	25	40	0.3	75	3000
	HX	35	55	0.55	100	3000
	NS	35	55	0.55	100	3000
	HX	40	70	0.79	125	3000
	NS	40	70	0.79	125	3000
	HX	55	80	1.48	125	3000
	NS	55	80	1.6	125	3000
	HX	75	65	1.52	150	3000
	NS	75	100	1.68	150	3000
	NS	90	110	2.5	250	3000
	HX	110	105	1.76	315	3000
	NS	110	110	2.63	315	3000
	HX	140	108	2.32	400	2500
TCS	HX	180	110	4.63	500	2500
	NS	35	110	1.6	100	3000
	NS	40	110	1.76	100	3000
	HX	180	105	7.91	500	3000
	HX	220	105	8.87	630	3000
	HX	280	105	11.13	800	3000
	NS	280	105	15.41	800	3000
	HX	360	225	21.2	1000	3000
	NS	360	225	22.6	1000	3000
	NS	470	225	30.3	1250	3000
	NS	500	225	32.2	1250	3000
	NS	600	225	38.7	1600	3000

Reinforcement Material
N/N (Nylon )
EP

Complete cleats and corrugated sidewalls belt
Range Of Production
Belt width: 300-2400mm
Annual production capacity: 50000m
Belt strength: 250-6000N/mm
Cleat height: 35-600mm Capacity range :0-6000m³/h
Vertical lift height: 1-500m

Hot Vulcanization Assembling

Sidewall, cleat and base belt are jointed through twice low-temperature hot vulcanization, which ensures high adhesion value, flatten and no fall off. And the adhesion value won’t be influenced by high temperature material.

Assembling way	Traditional cold bonding	Hot vulcanization assembling
Adhesion Value	10-12N/mm	20N/mm
