Conveyor Idler & Conveyor Pulley
Product description:

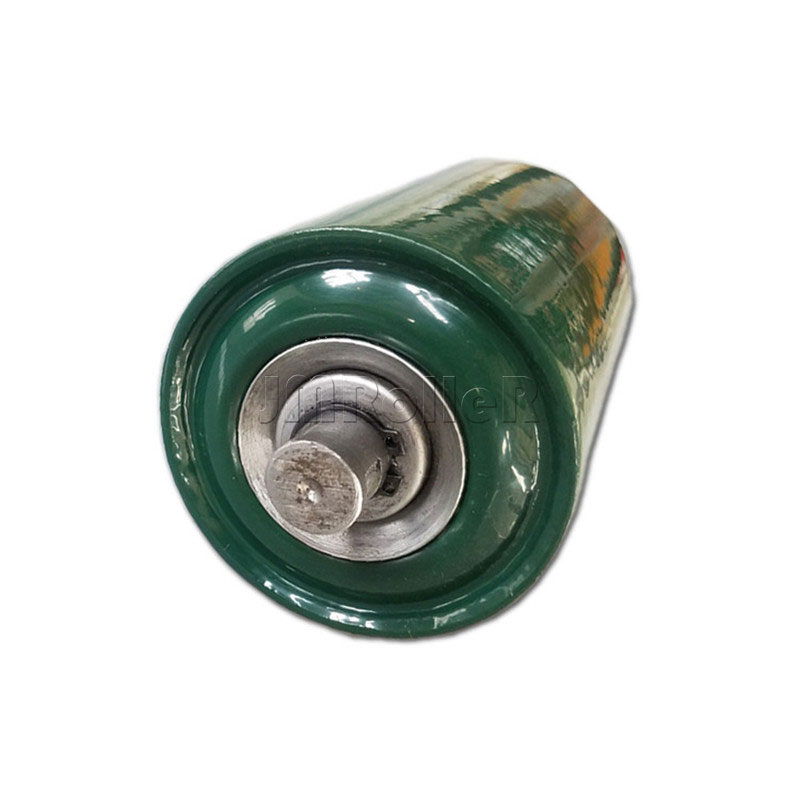

1. Carrying Idler (Conveyor Idler & Conveyor Pulley):
Stable running, good quality, free maintenance.
Small vibrating and long lifespan.
The flexibility of sealing methods.
Several seals achieve dust proof and waterproof.
High accurate steel pipes ensure the rollers with low vibration and noise.
| Name: Conveyor Idler& Conveyor Pulley | |
|---|---|
| Pipe Thickness | 2.5-6.0mm |
| Bearing | Famous Bearing Brand or as your requirements |
| Paint | Powder coated & spray paint & baked paint. |
| Seal | Labyrinth seal,dust-proof and water-proof. |
| Packing | Wooden Box |
| Standard | GB, CEMA, DIN,SABS |
| Pipe Diameter (Φ D) | 89,108,133,159,194 |
| Shaft Diameter(Φ G) | 20,25,30,35,40,45 |
| Bearing No. | 6204/6205/6206 /6304/6305/6306/6307 2RS |
2. Roller

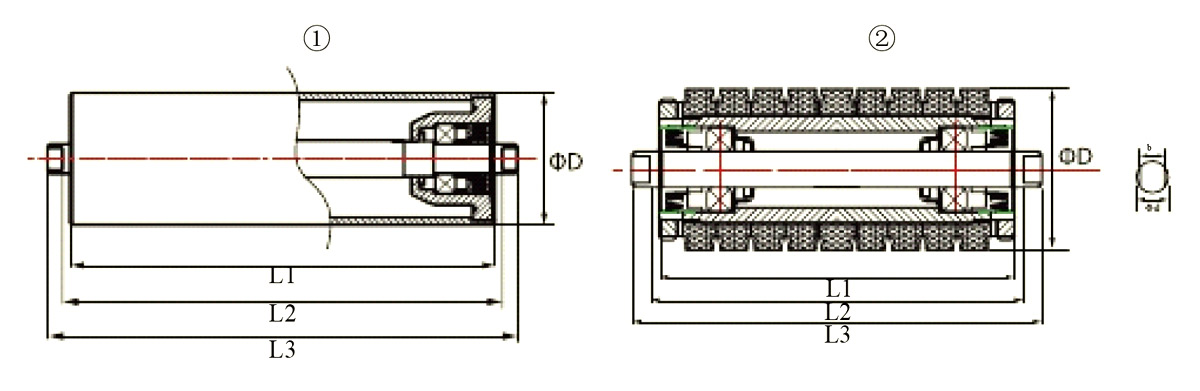

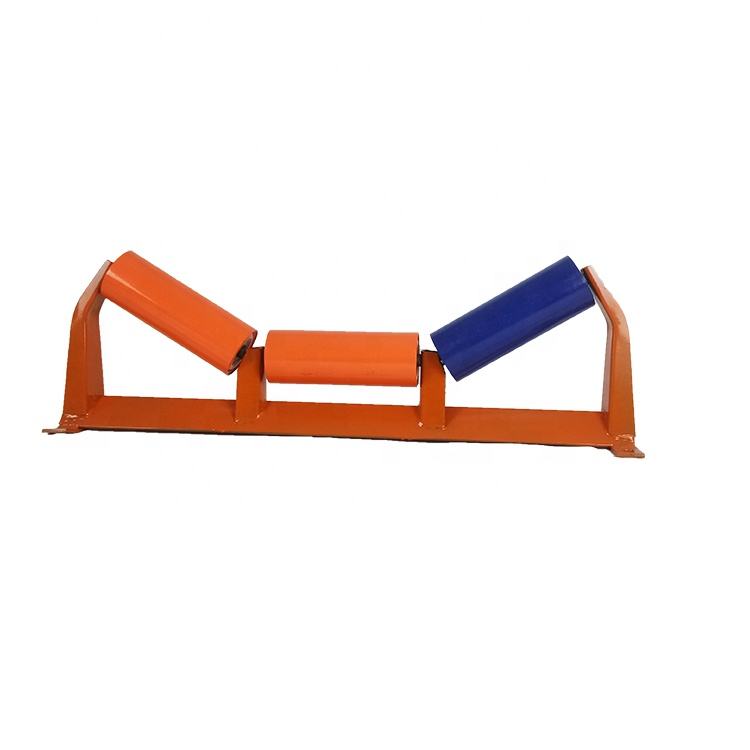

Carrier troughed roller
| 型号Model | 带 宽 Belt width | 图 号 ① Drawing NO. | 图 号 ② Drawing NO. | 轴承型号Bearing No | ||||||
| （B） | D | d | L1 | L2 | L3 | b | ||||
| 89*190 | 500 | TD1C1.1 | TD1C9.1 | 190 | 200 | 220 | ||||
| 89*240 | 650（600） | TD2C1.1 | TD2C9.1 | 89 | 20 | 204 | 240 | 250 | 270 | 15 |
| 89*305 | 800 | TD3C1.1 | TD3C9.1 | 305 | 315 | 335 | ||||
| 108*375 | 1000 | TD4C1.1 | TD4C9.1 | 375 | 385 | 408 | ||||
| 108*455 | 1200 | TD5C1.1 | TD5C9.1 | 108 | 25 | 305 | 455 | 465 | 488 | 18 |
| 108*525 | 1400 | TD6C1.1 | TD6C9.1 | 525 | 535 | 558 |

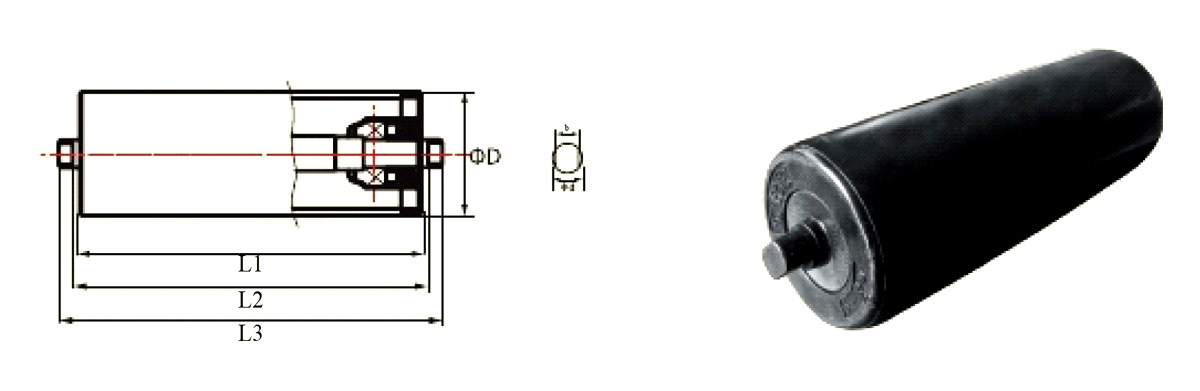

Return roller
| 型号Model | 带 宽 Belt width | 图号Drawing NO. | 轴承型号Bearing No | ||||||
| （B） | D | d | L1 | L2 | L3 | b | |||
| 89*600 | 500 | TD1C2.1 | 600 | 610 | 640 | ||||
| 89*750 | 650（600） | TD2C2.1 | 89 | 20 | 204 | 750 | 760 | 790 | 15 |
| 89*950 | 800 | TD3C2.1 | 950 | 960 | 990 | ||||
| 108*1150 | 1000 | TD4C2.1 | 1150 | 1160 | 1200 | ||||
| 108*1400 | 1200 | TD5C2.1 | 108 | 25 | 305 | 1400 | 1410 | 1450 | 18 |
| 108*1600 | 1400 | TD6C2.1 | 1600 | 1610 | 1650 |
Features:
· Rollers are designed for smooth rotation, low noise, and long service life.
· Diameter range: 76 mm to 219 mm, other diameters available on your request.
· Pipe length: 100mm to 3000 mm.
· Water proof and dust proof.
· Each roller come out through strict inspection and test to ensure high level quality.
· Roller Surface Colour : Any colour as per customer request.
Minimum Order Quantity: 50 Piece
