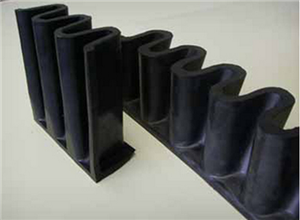

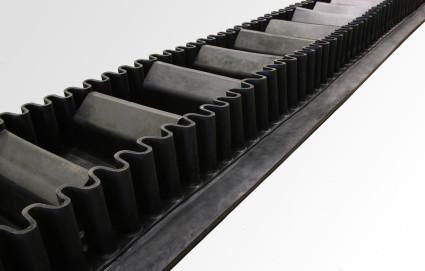

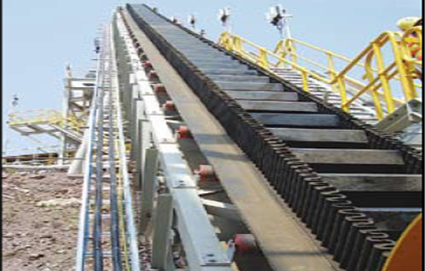

Corrugated Sidewall Conveyor Belt

800mm width durable rubber chevron pattern conveyor belts
China Supplier EP or NN Patterned Chevron Conveyor Belt
endless belt monster

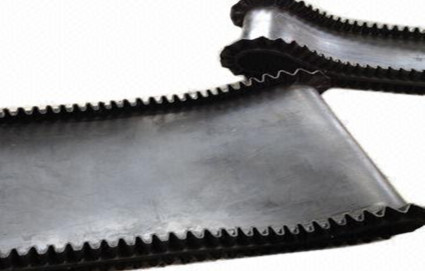

Corrugated Sidewall Conveyor Belt

Corrugated Sidewall Conveyor Belt Sidewall types:

Type S Standard Construction in heights from 40mm to 120mm.
Type SR Standard construction but with Diagonal Fabric Reinforcement.
Type HDSR Heavy duty construction including fabric reinforcement as standard in heights from 120mm to 300mm.The fabric reinforcement is of the diagonal type ensuring maximum flexibility with high vertical stability. If required these can be supplied without fabric reinforcement to special order, Ref: HDS.
Type XHDSR Heavy duty Special design including fabric reinforcement as standard in heights from 300mm to 630mm.
sidewall 800mm belt width 24Mpa EP400 rubber belt used in mining machinery
sidewall cleats bucket elevator rubber conveyor belt

Cleat:

The cleat is produced by fiber load materials.With large anti-shock ability and impact resistance,thus avoid the distortion of stress.The cleat has T,TS,C,TC,TCS five types.TS and TCS types are mosaic pattern.The conveyor angle is small than 40°,using T or TS cleat;the conveyor angle is bigger than 40°,using C,TC or TCS cleat.

Corrugated sidewall plate:

According to the carrying capacity,there are three types corrugated sidewall:Light type(N),Medium type(S),Heavy type(ES).

Characteristics:

1.      To save time
Because of large angle transporting,thus can be shortened the horizontal length and save the space of laying area.
2.       Strong transporting capacity
Compared with common conveyor belt,with large carrying cross section,has stronger transporting capacity than same width conveyor belt.
3.       Without sidewall plate
Because without sidewall plate,thus avoid the local abrasion.
4.       Impossible to use small roller
Impossible to use the traditional size of small roller.
5.       Because the base belt uses special canvas core to improve the canvas,then improve the anti-broken ability of belt at the same time.
6.       The sidewall plate and diaphragm are adhesive with base belt through heat vulcanization method,thus ensure the bonding strength.

Parameter and specifications of corrugated sidewall Conveyor Belts:

ISO standard high quality corrugated sidewall conveyor belts supplier in China

Sidewall conveyor belt specification

Base belt

width

Sidewall

height

CIeat heiqht

Sidewall

width

Effective belt

width

Free edge

300
40
35
25
180
35
60
55

50

50

120

180

40

60

80
75
400
60
55
80
75
100
90
500
80
75
50
250
75
100
90
120
110
650
100
90
50
350
100
120
110
800
160
140
75
300
120
110
50
460
160
140
75
410
120
200
180



Base belt

width

Sidewall

height

CIeat heiqht

Sidewall

width

Effective belt

width

Free edge

1000
160
140
75
560
150
200
180
240
220
1200
160
140
75
690
180
200
180
240
220
300
260
105
630
1400
200
180
75
830
210
240
220
300
260
105
770
400
360
1600
200
180
75
970
240
240
220
300
260
105
910
400
360
1800
240
220
75
1110
270
300
260
105
1050
400
360
500
460
125
1010



Ideal for Use in Construction and Other Industries

The corrugated sidewall conveyor belt comes in various types, each offering different function for use. Using fiber load material for each cleat, the design ensures an anti-shock ability and impact resistance for support against stress. Browse below to know about this product’s characteristics and specifications.
