Cross Stabilized Conveyor Belt

Cross Stabilized Conveyor Belt

Cross Stabilized Conveyor Belt design:

It is based in the following main components:

(1) Cross-stabilised Base Belts

(2) Sidewalls

(3) Cleats

Sidewall Conveyor blet has been designed with two corrugated sidewalls and cleats

  • molded to cross-rigid base belt can carry heavy product loads up to the inclined angle
  • of 75° This belt is popular to be used where space where space is at a premium and
  • steep incline angles are desired.

Cross Stabilized Conveyor Belt Base Belt :

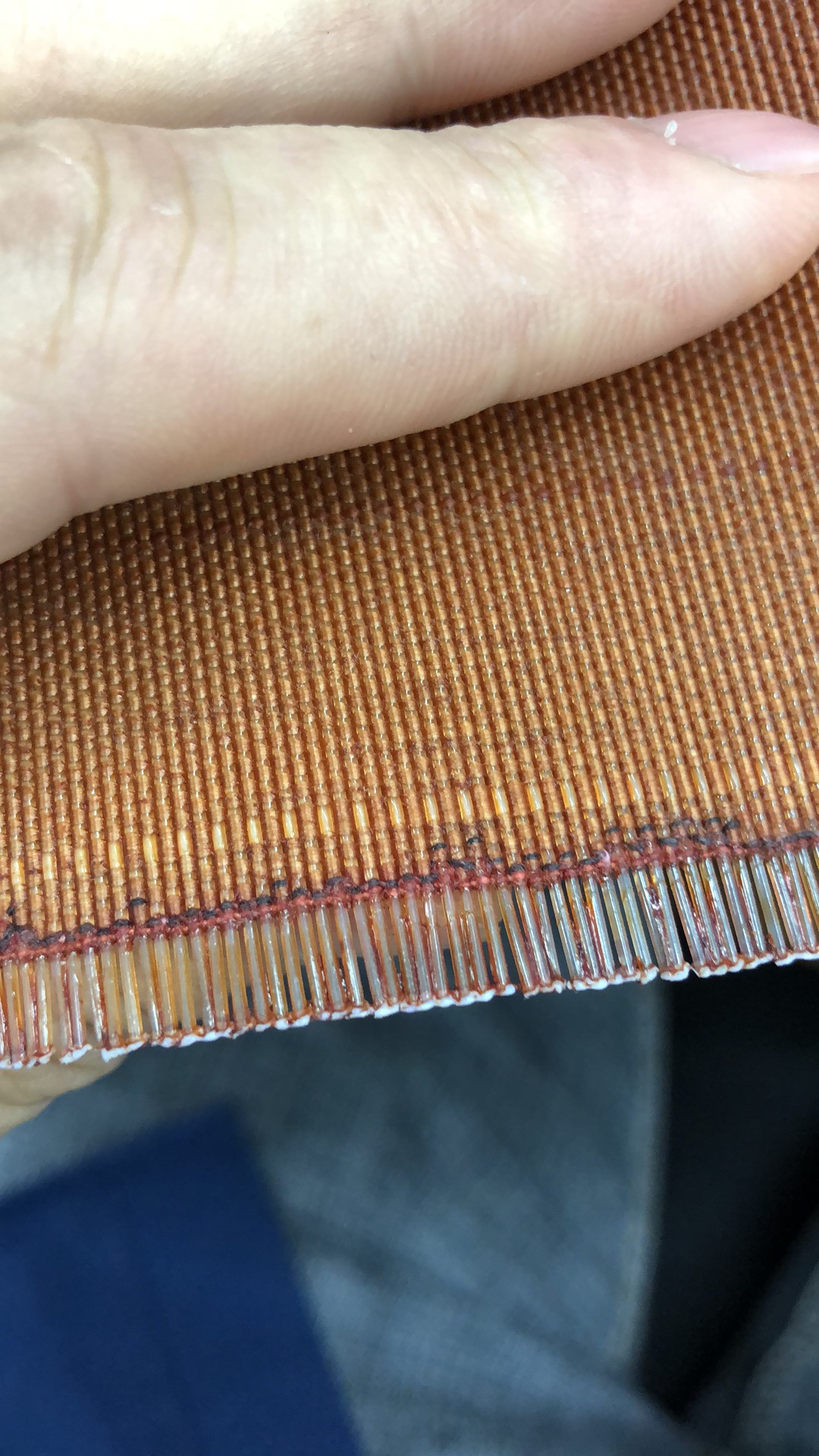

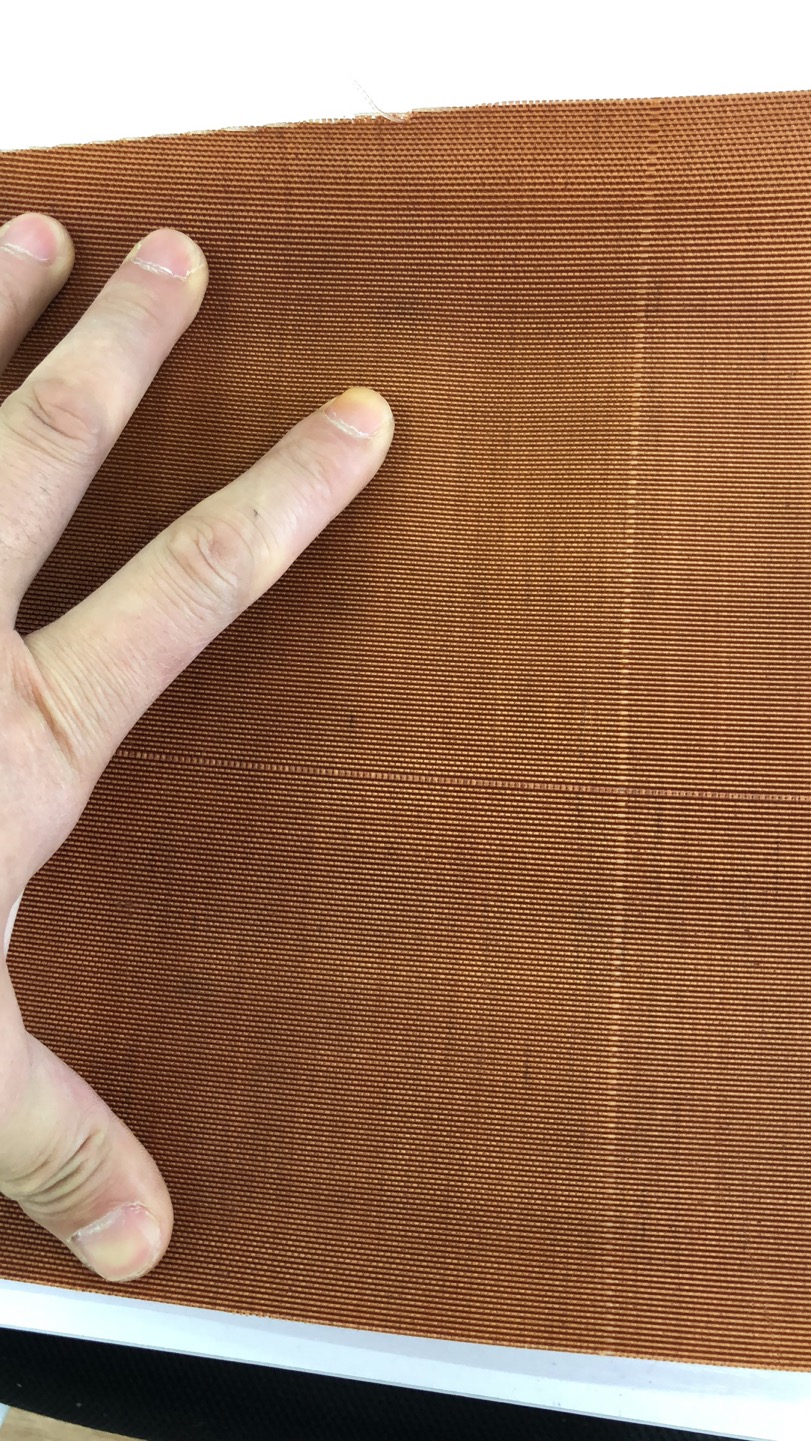

The base belt is designed to bend efficiently in a longitudinal direction and has greater rigidity in a transverse direction by utilizing reinforced fabrics with monofilament the creates a fabric carcass of high tension.

Features:

It can be deflected from the horizontal to an incline or vertical and back again without bowing or sagging. These deflection points as well as the belt returning on free lateral space by snub idlers definitely require the corss-rigidity of the base belt. The designed mno-filament fabrics provide better returnside support, no wear and tear of cleat and cover rubber is available with various compounds like abrasion resistance oil, heat, flame resistance.

Monster belting | Cross Stabilized Conveyor Belt
Monster belting | Cross Stabilized Conveyor Belt
Monster belting | Cross Stabilized Conveyor Belt

Belt Composition:

Cross Stabilized Conveyor Belt

X=Corss-Stabilised Construction
E=Polyester Tension Plies
+1=One Ply of Cross-Stabilised
+2=Number of Separate Cross-Stabilising Plies

Construction:

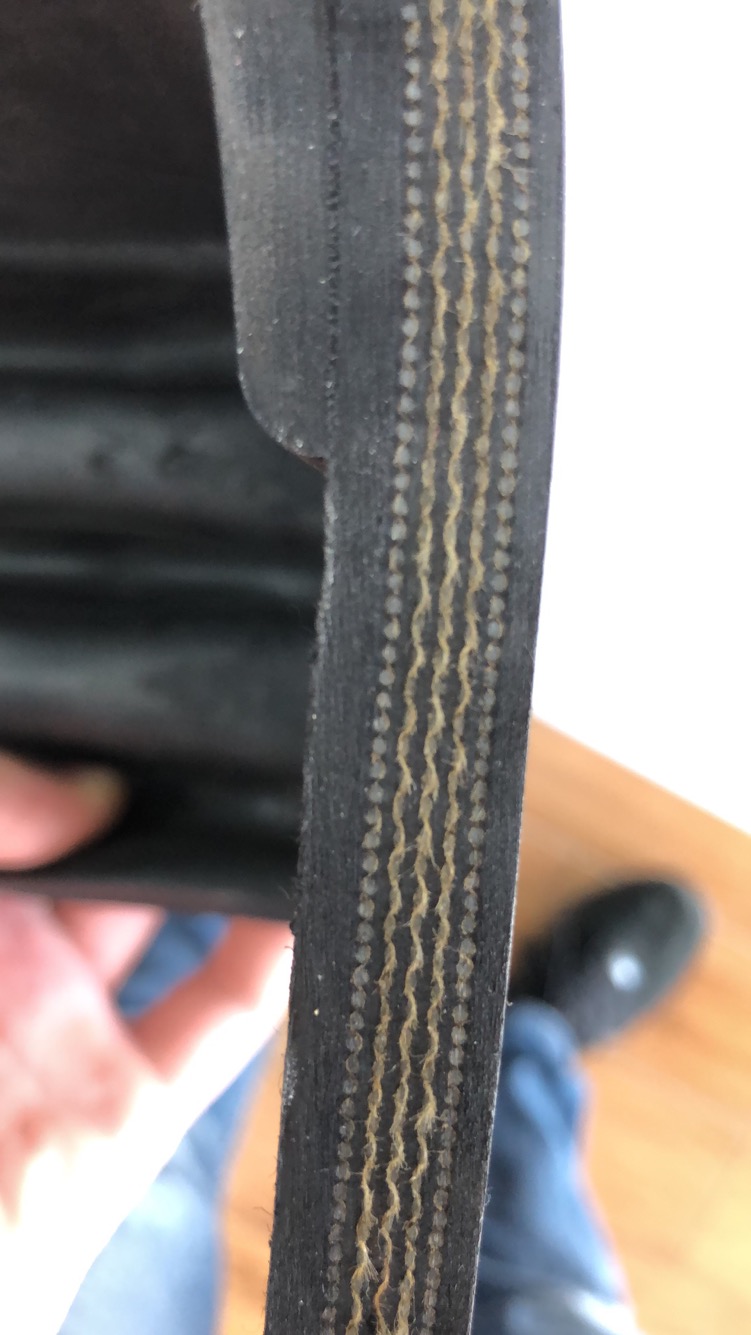

Fabric belt reinforced with XE layer
Fabric belt reinforced with XE layer

XE+2:is a multiply construction with cut edges based upon carcass of EP fabric and one monofilament ply on each side of the EP carcass integrated into the upper and lower cover.

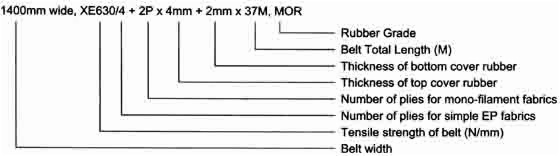

An example of base belt indication:

XE+2

Our advantages :
1. More than 30 years experiences
Our company was established in 1998,the registered capital is RMB100 million yuan.

2. First-class producing equipment and management system
We have more than 8 conveyor belt production lines, and advanced DrumType vulcanizing machine.

3. Products are certified with ISO9001 standard
We have ISO 9001 Quality Control System, ISO14000 Environment Management System and GB/T28001 Occupational Health&Safety Management System, Measurement Management System, State Standardization Good Compliance Certificate.

4. Strong technical support and R&D capacity
We have a separate design, research and development capability and can be customized according to customer demand.
Our company possesses a complete set of detection apparatus, the independent chemical analysis and physical labs, ensuring all the raw materials. Semi-products and finished products are under control and there no unqualified materials and no unqualified product.
