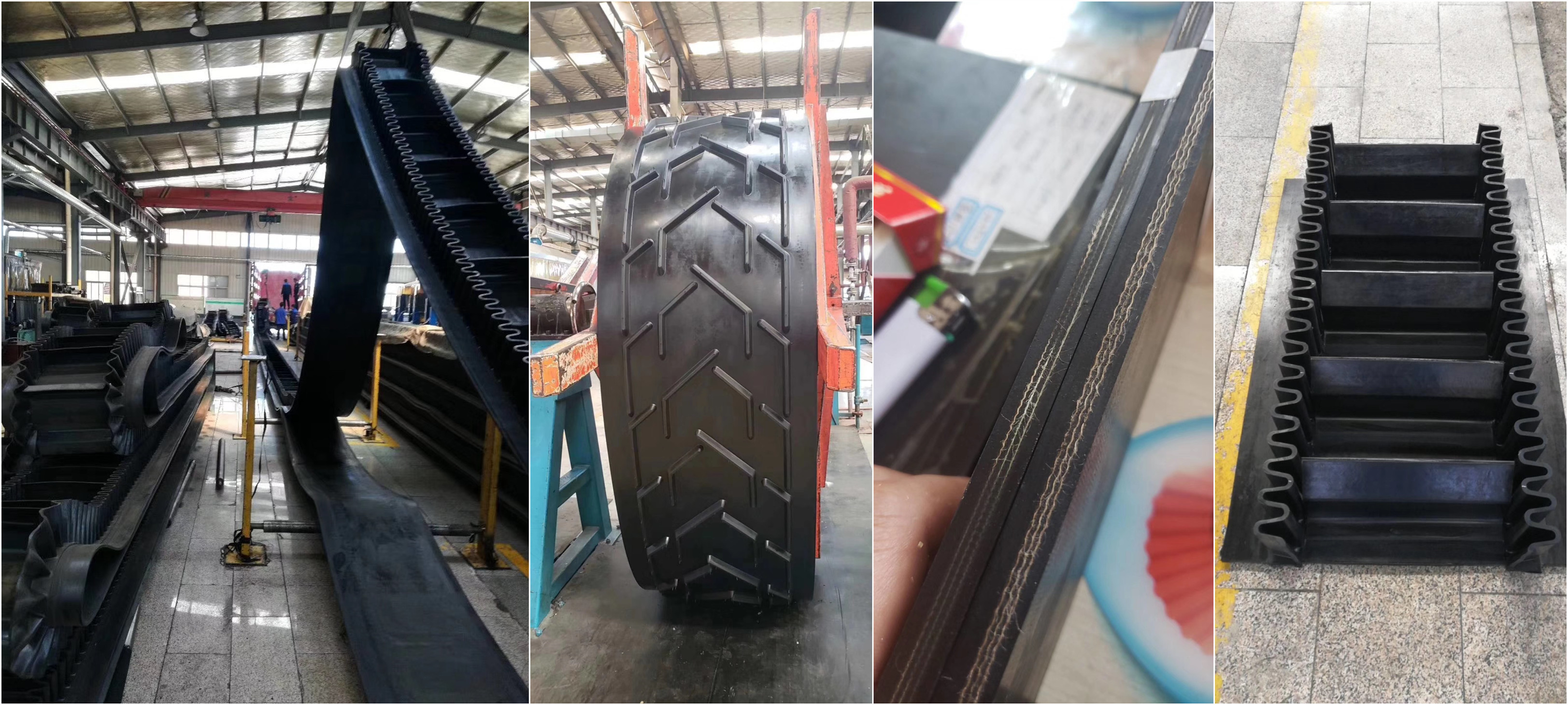

Coal Mine Industry Multi-ply Rubber EP conveyor belt

Monster belting | Coal Mine Industry Multi-ply Rubber EP conveyor beltCoal Mine Rubber EP conveyor belt

1. Good troughability
2. High tensile strength
3. Good flexing capacity

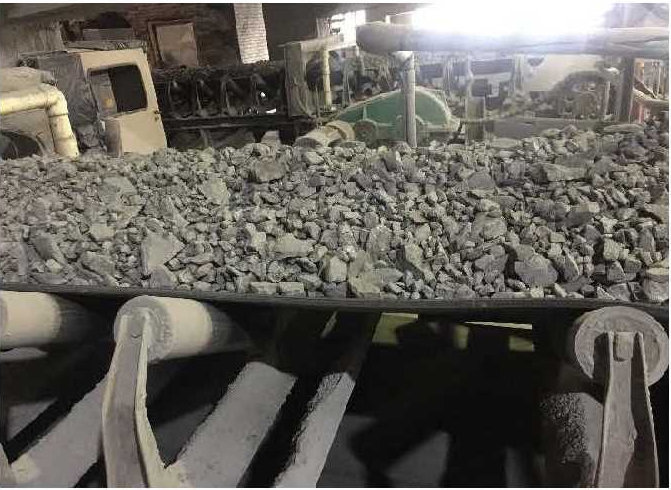

4. It is suitable for conveying in normal temperature various Non-corrosive pointless lumps, granular or powders such as Coal, coke, sand and cement in bulk or packaged products.
5. Our products are high cost-efficiency.

Product Specification

             A                                  B
Product Name Mining Coal Industry Multy-ply Rubber EP conveyor belt
Material of core belt Polyester (EP)
layer 3-12 layers
Top cover rubber thickness 1.5-6mm
Bottom cover rubber thickness 1.5-4.5mm
Belt Thickness 4-20mm
Belt Width 400-2200mm
Tensile Strength 8~24Mpa
Production Process Molding,plate vulcanizing press curing method
Type NN,CC,EP conveyor belt;heat resistant

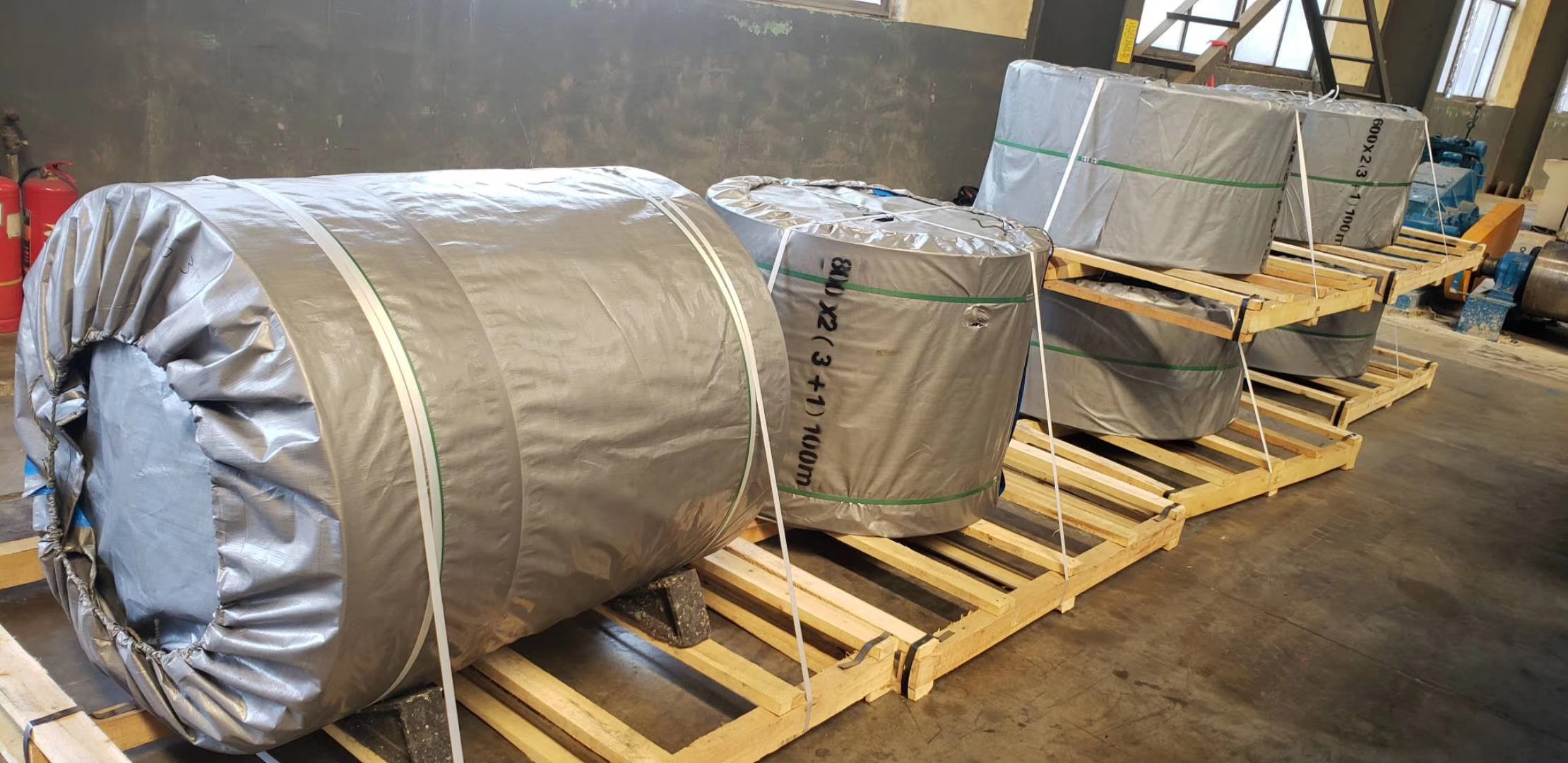

Packing Pp bag outside or can according to our customer request.
Payment terms TT and L/C at sight
Loading port Xingang,tianjin port

Technical Specifications :

Total Tensile Strength Fabric Type Top Cover Thickness Bottom Cover Thickness
   ( N/mm) (mm) (mm)
200-800 EP100 3.0/4.5/6.0 1.5/3.0
315-1250 EP150 3.0/4.5/6.0 1.5/3.0
400-1500 EP200 3.0/4.5/6.0 1.5/3.0
500-2000 EP250 3.0/4.5/6.0 1.5/3.0
500-2000 EP300 3.0/4.5/6.0 1.5/3.0
630-2500 EP400 3.0/4.5/6.0 1.5/3.0

Rubber Cover Property:

Item                          Rubber grade(DIN22102)
W X Y Z
Tensile Strength
(N/mm2)>=
18 25 20 15
Elongation at break(%)>= 400 450 400 350
Abrasion
(mm3)<=
90 120 150 250

Adhesion Between layers:

Item Adhesion between fabrics(N/mm) Adhesion between Fabric and Rubber(N/mm)
Cover<=1.5mm Cover>1.5mm
Max.<= 20 20 20
Average>= 5 3.5 4.5
Min.>= 4 2.5 3.5

 Recommended Minimum Pulley Diameter:

Fabric type Recommended Minimum Pulley Diameter (for reference only)
2 piles 3 piles 4 piles 5 piles 6 piles 7 piles 8 piles
EP100 250 400 500 630 800 800 1000
EP150 315 400 630 800 800 1000 1250
EP200 315 500 630 800 1000 1000 1250
EP250 400 500 800 1000 1000 1250 1400
EP300 400 630 800 1000 1250 1250 1400
EP400 500 630 1000 1250 1250 1600
