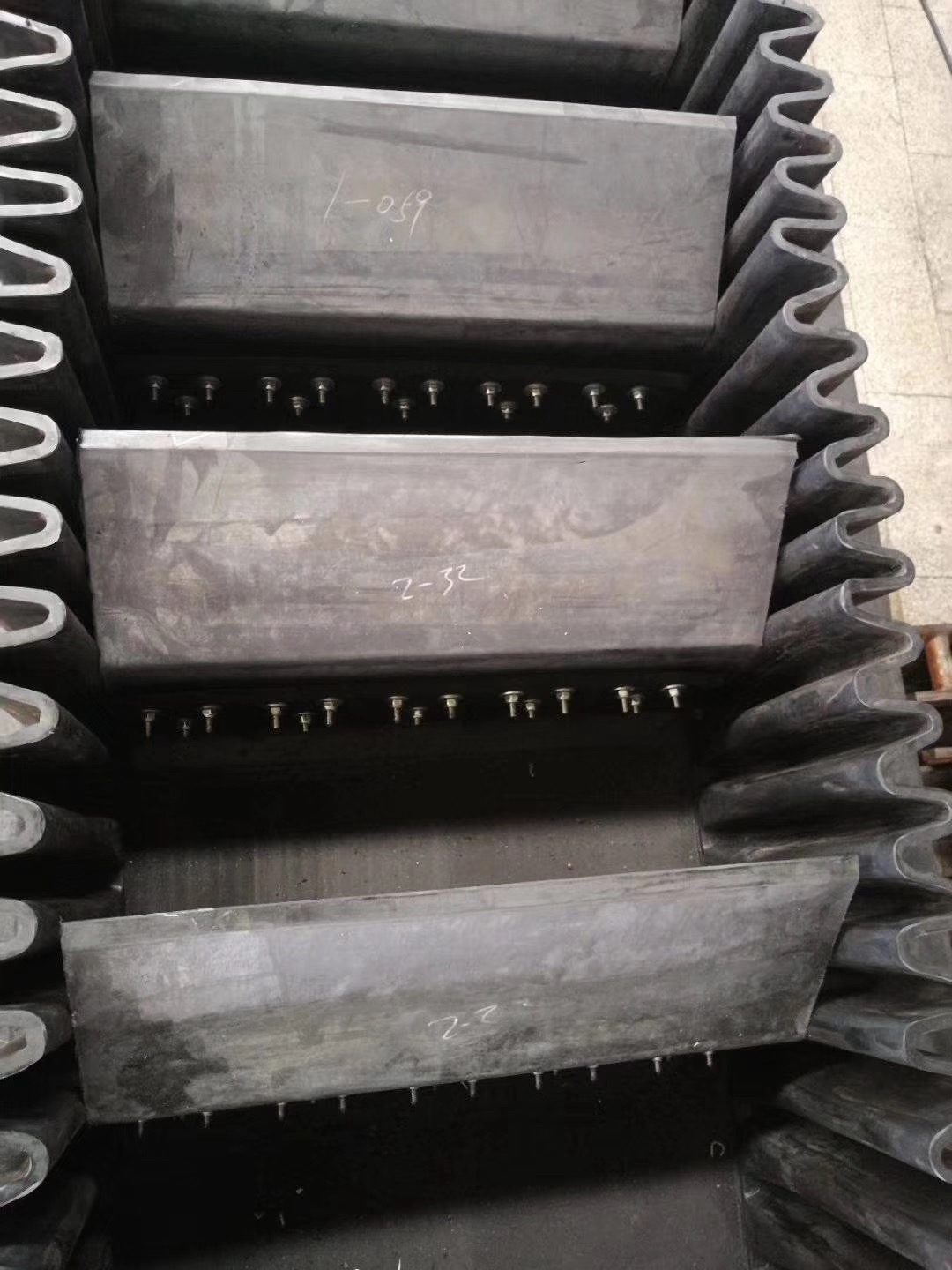

FR fire resistant sidewall conveyor belt for coal mining
The FR fire resistant sidewall conveyor belt can make all kinds of bulk materials with 0-90 degrees to be used for continuous conveying, with large inclination, wide range of use and small area.
No transfer point, less investment in civil construction, low maintenance cost, large throughput, etc., solve the transportation Angle that ordinary conveyor belt or pattern conveyor belt cannot reach.
The base belt consists of four parts: Top cover rubber , fabric layer and bottom rubber cover.
The cover rubber thickness is generally 3-6mm;
The cover thickness is generally 1.5-4.5mm.
The material can be made of cotton fabric (CC), nylon fabric (NN), polyester fabric(EP) or steel cable (ST).
In order to increase the transverse rigidity of the basebelt, a special strengthening layer is added in the core body, which is called transverse rigid layer.
The width of the basebelt is the same as that of ordinary tape, which conforms to the standard of GB/ t7984-2001.
1) Tear resistant element
new type steel cord
2) Reinforcement layer
steel cable, steel cord, fabric, etc
3) Feature
excellent impact and tearing resistance performance
Steel Reinforced Rubber Conveyor Belts type & standard
1) Normal grade – GB/T9770-2001
2) Flame resistant – MT 668-2008
3) General used flame retardant – HG/T3973-2007
4) Heat resistant – GB/T 20021-2005
5) Abrasion resistant – Shore abrasion≤ 90mm3
6) Abrasion & heat resistant – below 125 degree, abrasion ≤ 150mm3
7) Tear resistant – HG/T3646-1999
8) Cold resistant – HG/T3647-1999
Features:
Cover type: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.
Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333.
FR fire resistant conveyor belt Production flow & OEM -Monster belting

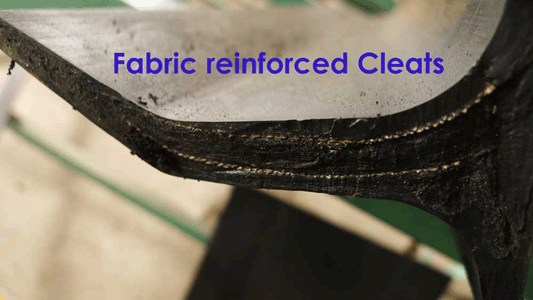

Screw Reinforcement sets are available in a selection of sizes
to suit specific cleat designs as follows:
Type 1 Cleat height 75mm
Type 2 Cleat height 90mm to 110mm
Type 3 Cleat height 110mm
Type 4 Cleat height 140mm to 180mm
Type 5 Cleat height 180mm to 230mm
Type 6 Cleat height 230mm to 280mm
Type 7 Cleat height 280mm to 600mm
Belt Handling
Monster RUBBER Conveyor Belts leave the production line packed in such a way as to ensure safe transportation. It is essential that when offloading and unpacking the belt that the utmost care be taken not to damage the belt. The belt should be unpacked as the following sketches, it is most important that under NO CIRCUMSTANCES should a steel cable or rope be used to lift the belt either out of a crate of onto the conveyor.
