Grade M tear Resistant Rubber Conveyor Belts

Application:

Grade M tear Resistant Rubber Conveyor Belts are widely used for conveying of goods at lumber factories, iron and steel plants, mines, quarries and glass factories.

Structural Features:

The carcass is made of ЕР polyester nylon fabric with a breaker between the rubber cover and the carcass.

Tensile Strength:

The tensile strength of puncture-resistant reinforced rubber conveyor belts is from ЕР 315 N/mm to ЕР 3150 N/mm.

Belt types

Types: Open V, Closed-V, L type, H type, Y type, A type and F type, etc.

Width: 400MM-1200MM

Thickness: 4-50mm

Types: EP80-EP630

Feature: Good adhesion and long working life

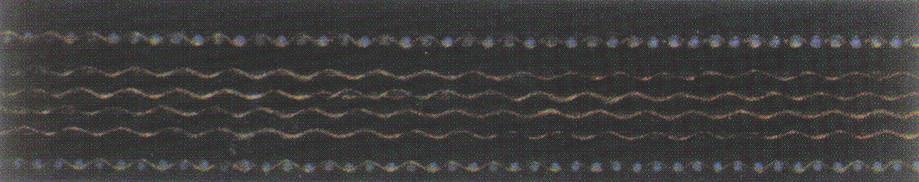

Grade M tear Resistant Rubber Conveyor Belts Available Breaker Types:

RC– steel cord with increased longitudinal and lateral flexibility. Used for trough belt conveyors.

SC– steel cord reinforcement with increased longitudinal flexibility and lateral stiffness. Used for flat-base conveyors, cannot form a trough.

BR– flexible polyamide cord (for conveyors with metal detectors and magnetic separators).

Standard Width:

400, 500, 600, 650, 800, 1000, 1200, 1300, 1400, 1600, 1800, 2000 mm.

Heavy Duty Chevron Rubber Conveyor Belt of other widths can be manufactured at customer’s request.

Belt Designation Example

1200	EP	500	/3	+1 RC	5	/2	Y
1	2	3	4	5	6	7	8

Specs:

1. width;
2. fabric carcass type;
3. tensile strength, N/mm;
4. number of fabric plies;
5. thickness of the top rubber cover;
6. thickness of the bottom rubber cover;
7. rubber cover type.
8. rubber cover type.
