H Type Pattern conveyor belt-32mm

H Type Chevron Conveyor Belt-32mm

Pattern/ Chevron Type : Open V, Closed-V, L Type, H Type, Y Type, a Type a

pattern conveyor belt drawing
pattern conveyor belt drawing

Patterned /chevron Conveyor Belts (6/10/15/17/25/32mm cleat height)

Application:
There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45 C.

Pattern conveyor belt are used primarily when the angle of incline becomes too steep for a smooth conventional conveyor belt. The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt. Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads.

We have full range of pattern belt mold, can be meet your required of any pattern of belt .

(1) Transportaion materials with slope from 0°to 45°;

(2) Preventing materials from falling off;

(3) Improving the capability of the belt.

Type: Open V close V, Ltype, H type, Utype, multi-Vtype, etc.

  • Height of pattern(CH): 5 mm, 10mm, 15mm, 17mm, 25mm, 32mm.
  • Pattern can be designed according to the customers’ requirement.
  • Abrasion resistant & High Tensile Strength
  • International Standard: EN, DIN, BS, AS, RMA, AS, JISK, SABS etc
  • Belt width: 600 mm, 650mm, 800mm, 900mm, 1000mm, 1200mm, 1400mm, 1500mm,1600mm,2000mm, 2200mm, 2400mm;
  • Type of insertions: Ep 100, Ep 125, Ep 160, Ep 200, Ep 250, Ep 310

H Type Chevron Conveyor Belt-32mm

It is recommended specifications to use the pattern conveyor belt.

HIGH 32MM PATTERN CONVEYOR BELT , DIN Y ,

TYPE EP400/3 (4+2)

MOULDED EDGES

PATTERN Y32P-600

Drawing as below,

Y32P-600 AND Y32P-800 (1)
Y32P-600 AND Y32P-800 (1)

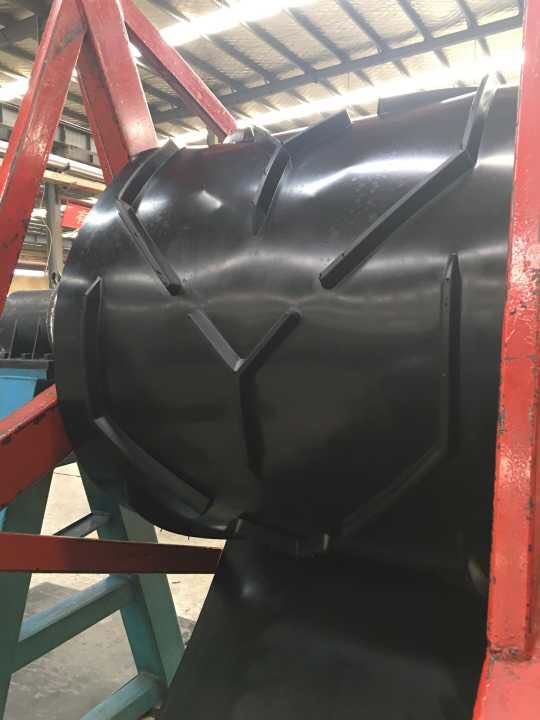

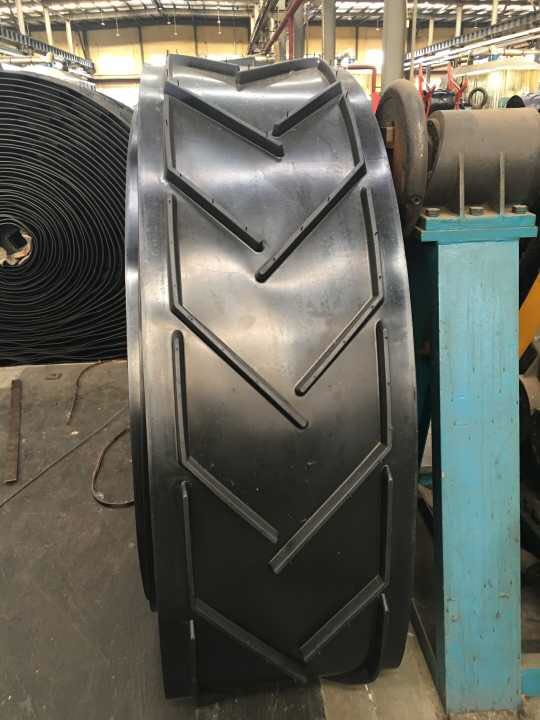

PATTERN CONVEYOR BELT PATTERN TYPE Y32-P800 & C32-P460 SHOW
