High Abrasion resistant conveyor belt
High Abrasion resistant conveyor belt physical and mechanical properties:
This conveyor belt is used in the transportation of coarse materials. Some of the materials transported include gravel, sinter and sand. This conveyor belt is very ideal for an industrial environment due to its heavy duty properties which take care of high density materials which are highly abrasive.
Grades
RA grade – used for transportation of high abrasive materials under normal conditions.
RE grade – used in areas where there are large, heavy or sharp objects falling. They are resistant to gouging, cuts, abrasion and impact which might occur.
RS grade – is the same as the RE grade conveyor belt with extra wear resistance features so that they are used in highly abrasive materials.
Features:
- Small elongation.
- High adhesion
- Rubber covered, giving it superior physical properties.
- Corrosion and ultra/violet resistant
- Avulsion and anti-impact resistant

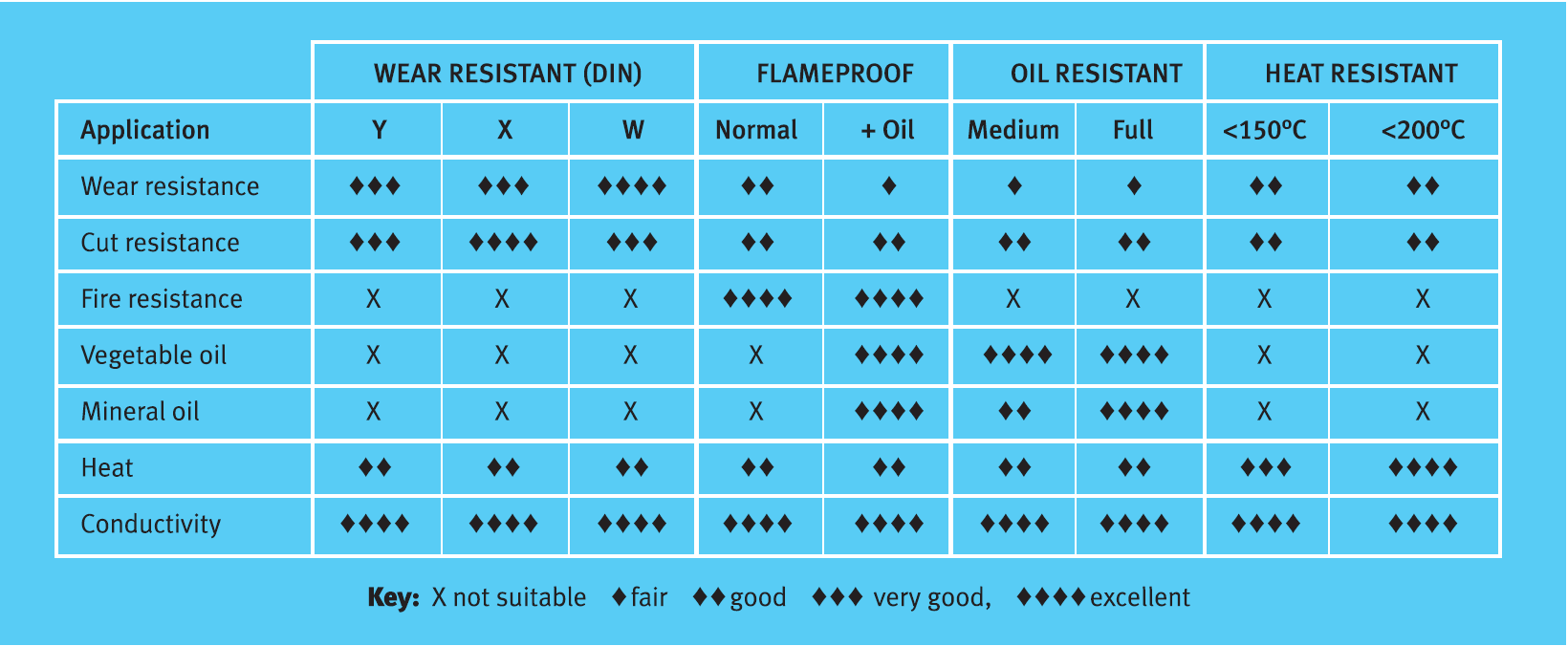

High Abrasion resistant conveyor belt Technical Data

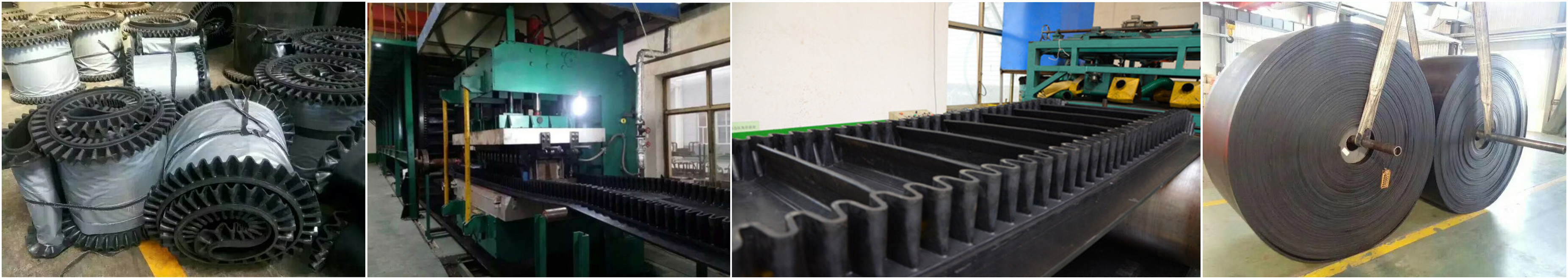

High Abrasion resistant conveyor belt
High wear resistant conveyor belt is used in many industrial production, such as ore, stone material, coal etc. Are these goods transport need to use high wear resistant conveyor belt, because some items on the conveyor belt of wear is too big.
So the high – wear conveyor belt comes in handy.
High Abrasion resistant conveyor belt in the dock, metallurgy and other industries use more.
DIN22102
| Standards | Cover Rubber | Adhesion | |||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | |
| DIN 22102 | Mpa | % | mm3 | N/mm | N/mm |
| (<=1.5mm) | (>1.5mm) | ||||
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 |
SANS1173
| Standards | Cover Rubber | Adhesion | ||||
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| SANS 1173 | Mpa | % | mm3 | N/mm | N/mm | |
| A | 18 | 400 | 70 | 5 | 7 | |
| C | 20 | 400 | 150 | 5 | 7 | |
| M | 25 | 450 | 120 | 5 | 7 | |
| N | 17 | 400 | 150 | 5 | 7 | |
AS 1332
| Standards | Cover Rubber | Adhesion | ||||
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (<=1.9mm) | (>1.9mm) | |||||
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
