sidewall conveyor belts for Port and handling

sidewall conveyor belts for Port and handling

sidewall conveyor belts carry material in any plane from horizontal to vertical. The most common conveyor shapes include straight incline, “L” and “S” shapes, but almost any configuration is possible.

Iron and steel industry
Corrugated sidewall conveyor for cement (2)

Construction
Each sidewall conveyor belts consists of two corrugated sidewalls bonded to a cross-rigid base belt. Cleats are hot molded to the base belt between the walls for steep angle material handling. The walls can be recessed for clearance and belt support through bend sections.

Sidewall
We offers the widest variety of corrugated sidewalls in the industry – from 1″ through 16″ – with metric sizes readily available. All sidewalls are impregnated with microscopic fibers to maximize resistance to cuts and tears. Sizes 6″ and above are also reinforced with a specially woven fabric ply to produce exceptional strength and performance.

Cleats

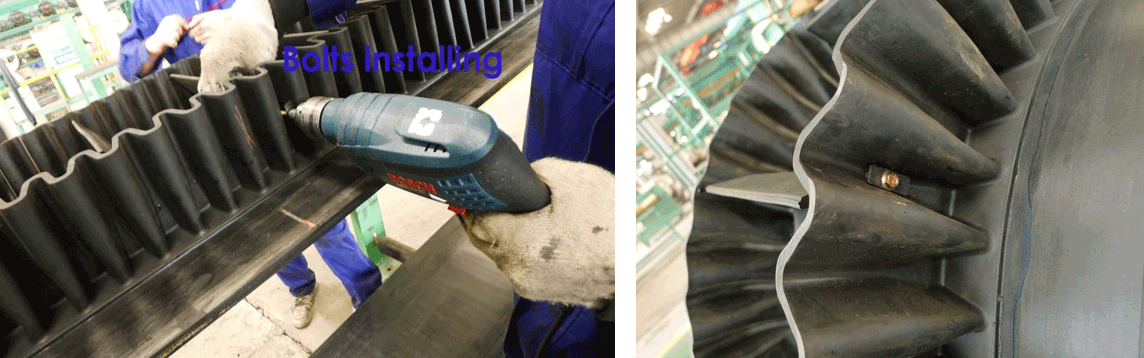

We offers three distinct cleat profiles to provide optimal capacity at any angle. All cleats are hot molded to the base belt, creating a rugged, permanent construction. Cleats taller than 5″ are a two-part construction consisting of a replaceable urethane cleat blade that is bolted into a U-shaped rubber cleat base vulcanized to the base belt.

Base Belt
Sidewall base belt is unequaled in the industry in terms of supplying the cross rigidity required by the particular demands of high-incline conveying. The special construction resists side-to-side flexing while allowing operation around standard diameter pulleys.

side wall for Port and handling
side wall for Port and handling

High Quality Rubber Sidewall Conveyor Belt For Incline Material Conveying
Sidewall conveyor belt suitable for conveying powdery and massive materials can work with an obliquity from 0-90C. And the obliquity can be changed while conveying

Basic construction of rubber sidewall conveyor belt

SKANCROSS CAN BE OFFERED IN THE FOLLOWING QUALITIES

Y = Normal quality

OIL-GM = Medium oil & fat resistant

K = Flame resistant

OIL-GM-K = Flame + medium oil & fat resistant

T130-T150 = Heat resistant

Other breaking strengths are available on request.

We also offer cross-rigid belting with textile backing and other combinations of cover and textile members.
