Hot vulcanized Sidewall cleats Conveyor Belts
XE-layer reinforcement
Hot vulcanized Sidewall cleats Conveyor Belts carcass type depending on customers’ request, our sidewalls and cleats can be reinforced with diagonal fabric and bolted together. We normally use XE-layer reinforcement; However metal breaker with cross rigid character can also be applied in various specifications. We offer a large portfolio of possible combinations of cleats and sidewalls in height up to 500mm.
fabric reinforced with XE layer

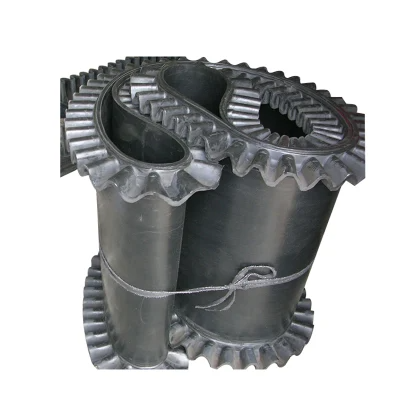

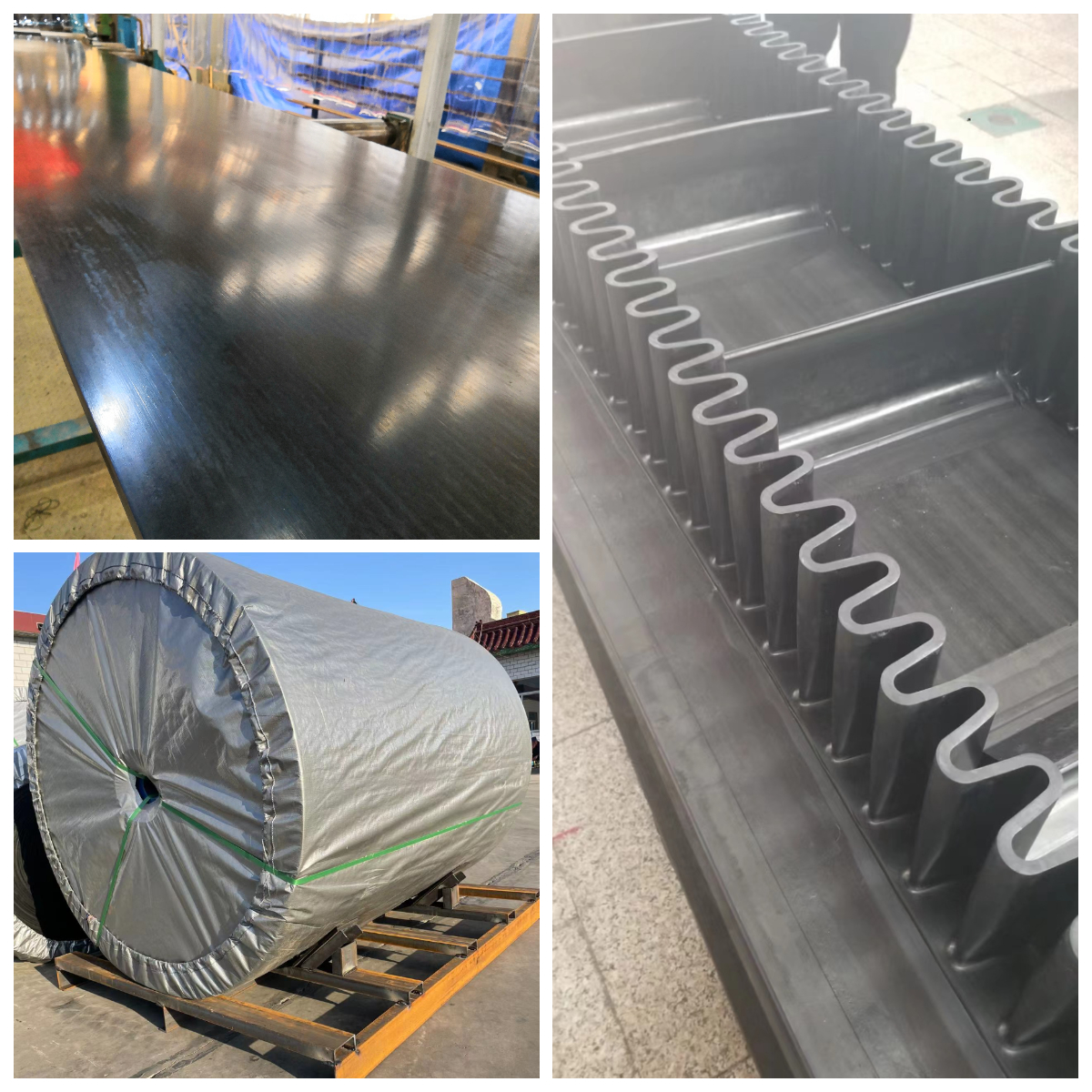

Sidewall and cleats are hot vulcanized to the base belt.
TS and TCS cleats are normally used for abrasion condition.
T and TS cleats are normally used up to 40°.
TC and TCS cleats are normally used from 40°to 90°.
hot vulcanized Sidewall cleats Conveyor Belts Transverse rigid layer: Cross rigid (special reinforced layers in the core) .
The power plants, quarries, the mining industry and many more.
Advantages:
No spillage with steep angle conveying.
Maximum utilization of space.
Minimum maintenance, long belt life.
Wide range of materials can be handled.
Low power requirement, quiet smooth running.
Smooth transition from horizontal to tilt or vertical.
We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
DIN22102 | MPa | % | mm3 | N/mm (≤1.5mm) | N/mm (>1.5mm) | N/mm |
DIN22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
DIN22102-X | 25 | 450 | 120 | |||
DIN22102-Y | 20 | 400 | 150 | |||
DIN22102-Z | 15 | 350 | 250 |
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
U. S. | MPa | % | mm3 | N/mm (≤1.6mm) | N/mm >1.6mm | N/mm |
RMA-I | 17 | 400 | 3 | 4.4 | 4 | |
RMA-II | 14 | 400 |
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
SANS1173 | MPa | % | mm3 | N/mm | N/mm | N/mm |
SANS1173-A | 18 | 400 | 70 | 5 | 5 | 7 |
SANS1173-C | 20 | 400 | 150 | |||
SANS1173-M | 25 | 450 | 120 | |||
SANS1173-N | 17 | 400 | 150 |
