IMPACT WEFT STEEL CORD CONVEYOR BELT

IW Conveyor Belt /Reinforced with impact weft

Product Description

Compare with fabric belt, impact weft steel cord conveyor belt is much more stronger and tear resistant, more suitable for high termperature. Compare with Steel cord belt, impact weft steel cord conveyor belt is more lighter and energy saving, also very good throughout ability.Impact weft structure combined with EPDM compound, IW belt are widely used in heat resistant working conditions.

Technical parameters
Project	IW350	IW500	IW630	IW800	IW1000	IW1250	IW1600
Maximum strength, N / mm	350	500	630	800	1000	1250	1600
Working strength, N / mm	35	50	63	80	100	125	160
With a core thickness, mm	3.2	3.2	3.2	4.5	4.5	6	6
Unit Weight, kg / m2	1.85	2.45	2.95	4.15	5	6.35	7.9
Roller diameter, mm	350	350	350	400	500	600	650

Applicaiton:

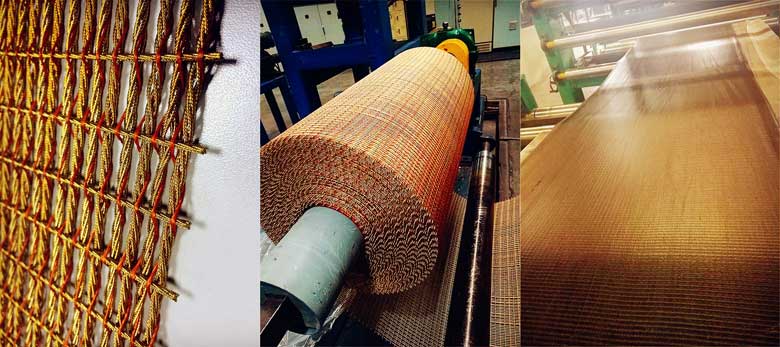

IMPACT WEFT STEEL CORD CONVEYOR BELT are consist of skeleton layer weft and warp yarn with steel cord woven warp weft cords located in the upper portion of the wire, the conveyor belt to ensure good trough ability, warp using open wire core glue to fully penetrate them. Impact overall steel conveyor has a good impact resistance. It can be widely used in ore handling, metallurgy sintering, coke plants, cement and quarry lifting belt and other occasions.

Steel Mesh Grade (IWR-Type) (Steel Mesh Conveyor Belt)
–	Grade	IW630	IW800	IW1000	IW1250	IW1400	IW1600	IW1800	IW2000
Tensile Strength(Warp)	kg/cm	630	800	1000	1250	1400	1600	1800	2000
Tension Rating	kg/cm	63	80	100	125	140	160	180	200
Tensile Strength(Weft)	kg/cm	200	200	200	200	200	200	200	200
Carcass Thickness	mm	5	5.6	5.6	6.4	6.4	7.2	7.2	7.2
Weight	kg/㎡	3.45	4.35	5.2	6.4	6.9	7.9	9.1	9.8

2、Feature:

1) The smaller elongation for steel mesh belt reduces the length of take-up.

2) Excellent adhesion between steel mesh and cover rubber to resist flex fatigue and impact.

3) Single carcass reinforcement has much better flexibility.

4) Steel mesh belt offers superior resistance to the repeated impacts.

Welcome to our product page of steel mesh conveyor belt, in which you can find detailed information of variety steel mesh conveyor belt. We could supply steel mesh conveyor belt following your specific requirement.
