Incline (Chevron Cleated) Conveyor Belt

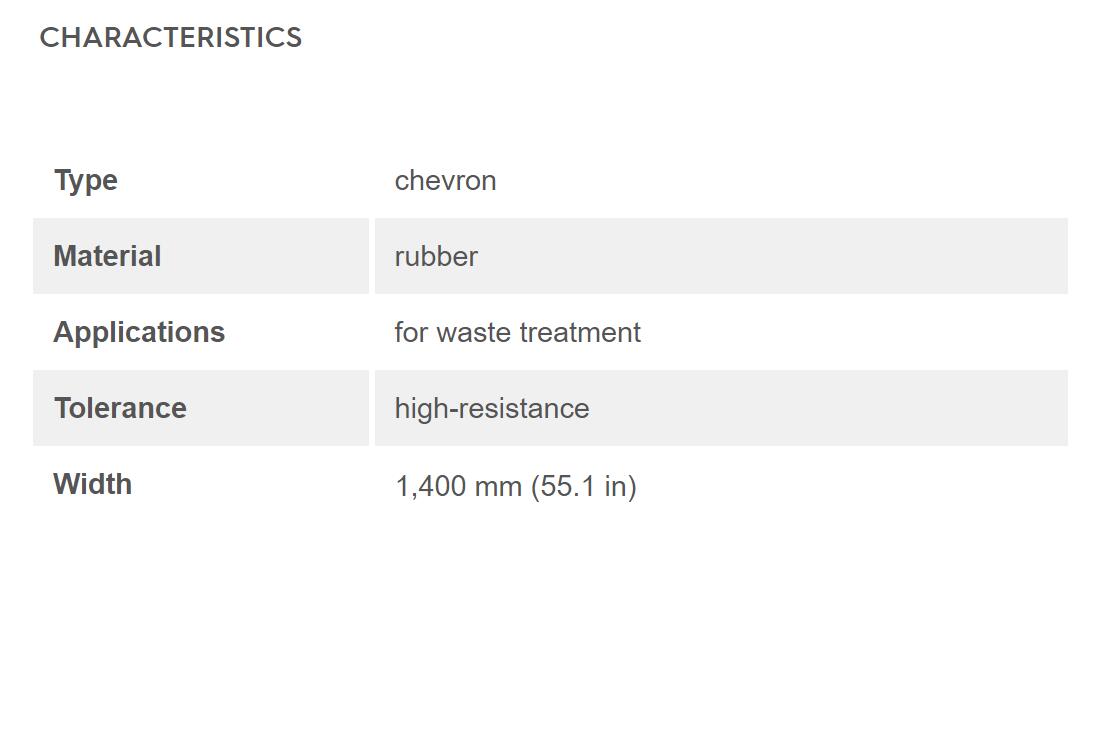

Type: Incline (Chevron Cleated) Conveyor Belt
Application Waste treatment, waste shredder belts
Material: Rubber
Cleat hight: C25
Width: 1400mm
Base Belts available 630/4 6+2 & 400/3 4+2 Open length for on machine vulcanising Belts vulcanised endless to exact requirements Wide variety of other chevron patterns available Overband magnet belts – standard sizes
Made in China Wear-Resistant And Impact-Resistant Incline (Chevron Cleated) Conveyor Belt
Herringbone chevron pattern rubber conveyor belt is used in mining /coal yard/ chemical industry. Features: With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it’s the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance, heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.
Chevron rubber conveyor belts C15/C25 V shape cleat industrial chevron belting
Chevron Conveyor Belts are precision designed and developed for providing desired space-saving on steep inclines which can go up to 40 Degrees. In such situations, these conveyor belts are designed to deliver enhanced load carrying capacity in bulk with lump size of up to 150mm.
A flat conveyor belt works fine when conveying material up to a certain angle. However, when the angle gets too steep, material may start to slide off. That’s when you need a chevron conveyor belt. Also known as escort belts, they have a cleated surface that keeps loose material in place, even at steep angles.
Chevron Pattern Conveyor Belt Features
1. Excellent elasticity
2. Anti-impact
3. High-adhesion
4. Good flexibility
5. Trough ability
6. Better stability of size
7. Resistance to water
Advantage :
Some of the standard features of these conveyor belts include:
For meeting the demands of high capacity conveying at steep angles
Designed to prevent load slippage or roll back of products while conveying
Comes with cleats that are integrally molded with top cover rubber that prevents separation from belt
Cleats also helping in achieving high abrasion resistance as well as elastic rubber compounds for desired flexibility
Can be offered in different cleat heights as well as widths depending on application requirements
Can be made available in varied finish design specifications
Following precision design standards that ensure belt has smooth run on conventional return idlers, thus needing no conveyor modification
Belt types
Types: Open V, Closed-V, L type, H type, Y type, A type and F type, etc.
Width: 400MM-1200MM
Thickness: 4-50mm
Types: EP80-EP630
Feature: Good adhesion and long working life
Application Areas:
Wood Chips | Sand & Gravel |
Heavy Duty Scrap metal | Minerals – Coal & Ore |
Materials – Fine Coal & Grains | Waste & Recycling Plants |
Road Construction | Crushing Industries |
Bagged Materials | Steel Pellets |
Selections:
Selection the type and height of cleats depends on the material to be conveyed and the angle of inclination:
Type of material | Material example | Max. angle of inclination | |||
Height of cleats | |||||
H(mm): | H(mm): | H(mm): | H(mm): | ||
Powdery | Flour, etc. | 25° | 25° | 28° | 30° |
Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° |
Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° |
Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° |
Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |
