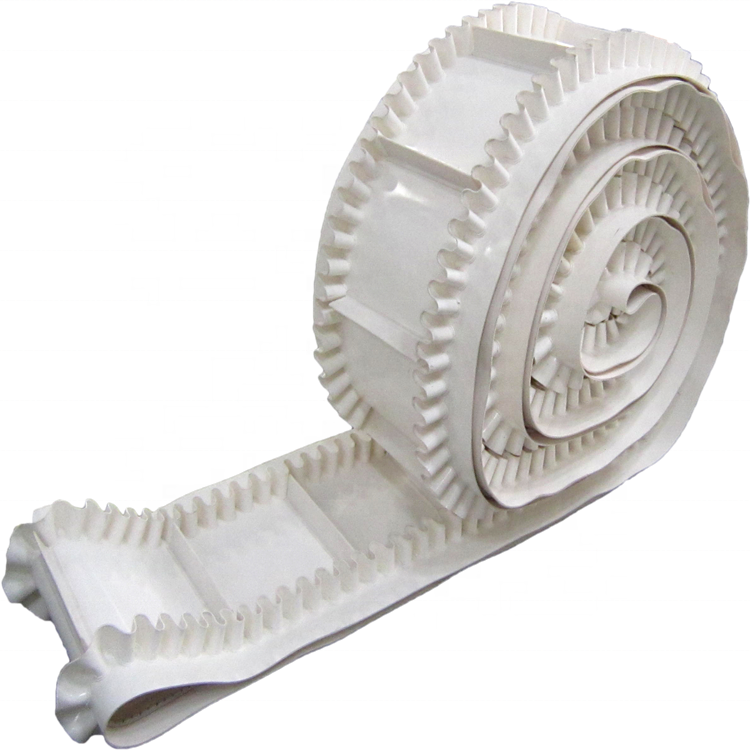

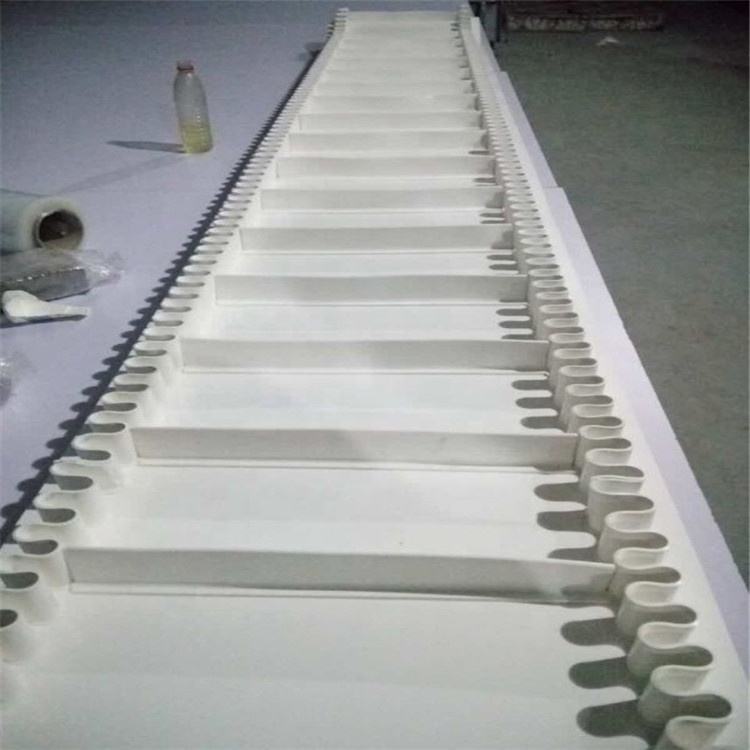

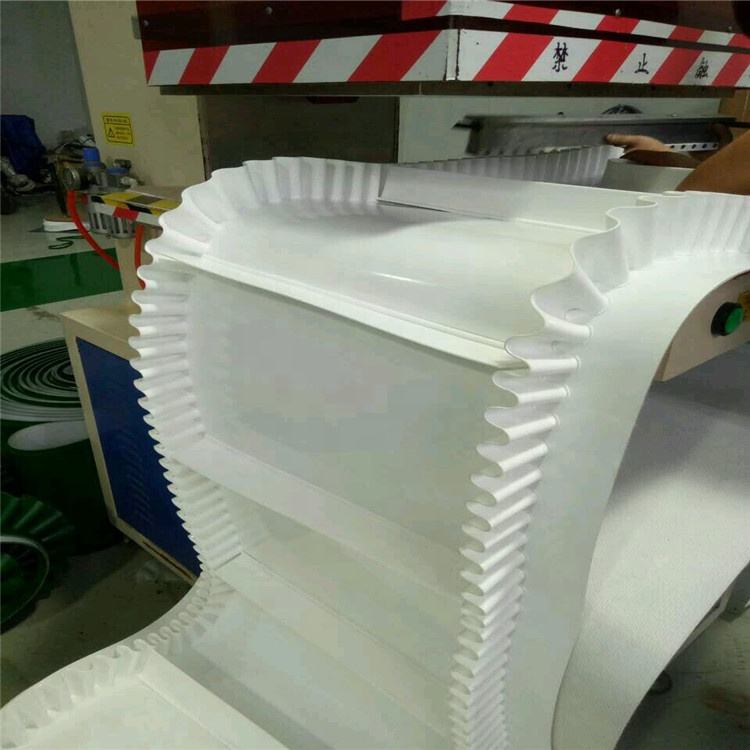

Inclined PU cleat conveyor belt with sidewall
Inclined PU cleat conveyor belt with sidewall can be divided into two types: skirt-side conveyor belt without partition and skirt-side conveyor belt with partition. It can make all kinds of bulk materials to be continuously transported at any inclination angle of 0-90 degrees. It has the advantages of large inclination angle, wide application range and small occupation area. No transshipment point, reduce investment in civil engineering, low maintenance costs, large transport capacity and other characteristics, solve the common conveyor belt or pattern conveyor belt can not reach the transmission angle.
| Specification of Conveyor Belt | ||
| The surface of the | Material | PU |
| Color | White | |
| Pattern | Glossy | |
| The reverse side | Material | Industrial polyester cloth |
| Working Temperature | -10/+80 ºC | |
| Baffle height | 10~100mm | |
| Skirt hem height | 10~100mm | |
| Optional features | Food grade/Oil resistant | |
| Customized | ||
| We can customize the conveyor belts according to your requirements | ||
| The thickness of the optional | 0.8~10mm | |
| Production width | ≤4000mm | |
| Optional material | PVC/PU/PVK/Felt/Silicone, etc | |
| Color optional | Green, white, black, dark green, gray, red, yellow, blue, translucent, apple green, etc | |
| Pattern choice | Lawn pattern, fish bone pattern, argyle pattern, cross pattern, serration pattern, polka dot pattern, diamond pattern, snakeskin pattern, cloth pattern, large round table pattern, Wave pattern, washboard pattern, monotype pattern, straight pattern, golf pattern, etc | |
| Features | Antistatic, friction resistance, hard, soft, heat resistance, oil resistance, cold resistance,Low noise,etc | |
| Special processing | Add skirt board, add baffle, add guide bar, add sponge, add red glue, groove, punch, dozen steel buckle, etc | |
The corrugated conveyor belt can be designed as a complete conveying system according to the requirements, avoiding the lifting system of discontinuous conveying and complex conveying.
The corrugated conveyor belt can convey all kinds of bulk materials along the horizontal, inclined, vertical and angular directions, from coal, ore, sand to fertilizer and grain, etc.
Material size is unlimited, from very small particle size to 400 mm large particle size, transportation capacity can be from 1 cubic metre/hour to 6000 cubic metre/hour.
