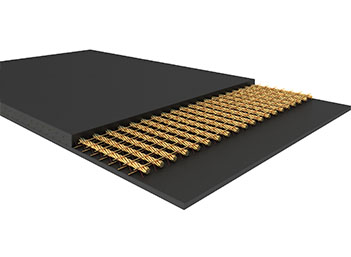

IW/SW Steel Mesh Conveyor Belt Usage

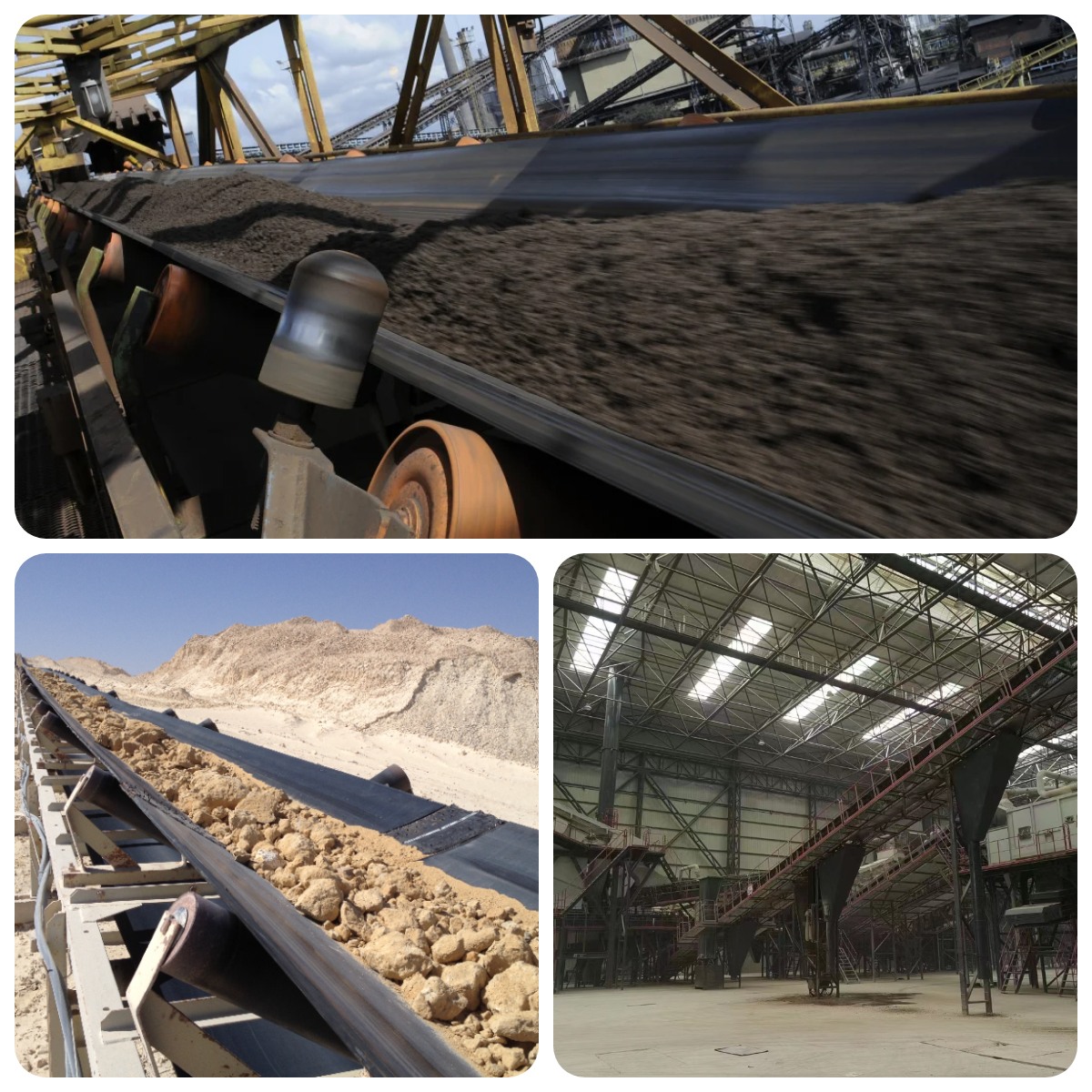

Applying IW/SW steel mesh to conveyor belting as carcass makes the belt with great anti-tear properties which will effectively prevent being pierced and with good performance in heat resistance.IW conveyor belt is suitable for ore handling,quarries,coal and ore terminals which requiring impact resistant and anti-tear properties;metallurgical sintering and coke plants requiring high temperature resistant properties;and bucket wheel machine handling which requiring high flexibility.SW conveyor belt is suitable for vertical conveying materials,which is widely used in metallurgy,chemical industries,cement,electricity,grain,etc.

Characteristics

1.Structure of special materials provides excellent anti-tear properties
The IW/SW Steel Mesh Conveyor Belt structure will make the conveyor belt meet great anti-tear properties which can effectively prevent against being pierced.

2.Excellent impact resistant performance

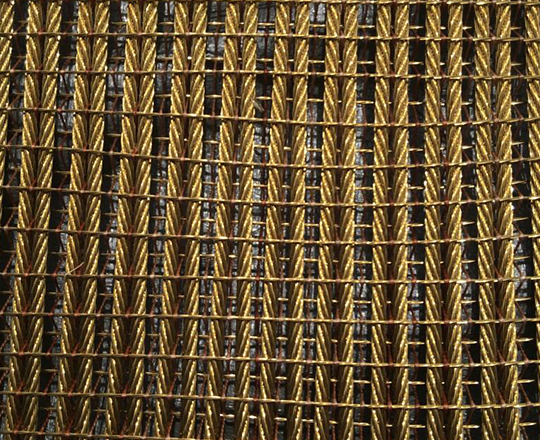

The IW/SW steel mesh uses elongation type steel in warp and high elongation steel in weft.The outstanding extension of the material will absorb more impact energy and thus provide excellent impact resistant performance.

3.Various cover types
Various types of rubber cover can meet different conditions.High temperature resistant rubber cover has excellent performance in conveying materials under high temperature conditions.But the conveying distance is better to be less than 2km.

IW conveyor belts are suitable for::

• conveyors with long center distance due to low elongation of metal cord
• heavy-duty applications due to high impact resistant metal cord
• elevator belts with bucket attachment
• belts with high lateral stability

SW conveyor belts available in following cover types:

• anti-abrasion
• temperature resistant
• PAH free (free of polycyclic aromatic hydrocarbons)
• other qualities upon request

Steelmat conveyor belts are considered as an alternative to textile carcass belts produced with special metal cord used for long-haul conveyors or
heavy-duty applications. Due to its great flexibility, they can be used at applications with smaller pulley diameters in combination with high strength.

Other belts type on customer request.

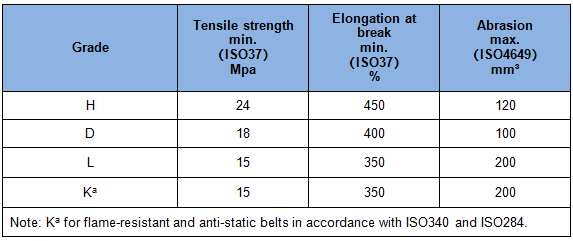

Cover Grade
In accordance with ISO15236-2016 standard

The values will help to determine the appropriate cover compound for the application or for the materials carries.Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength,and abrasion values alone.
