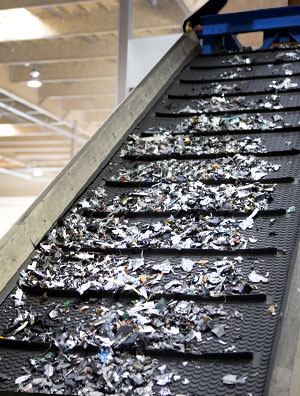

Oil resistant belt carries parts and components coated with machine oil, heavy-oil treated coal in cooking plants and electric power generating plants, soybean draft, fish meat and other oily materials. Materials containing non-polar organic solvents and fuel.
The belt compounded of oil resistant synthetic rubber has good resistance to the damaging effects encumbered when conveying oil contaminated or treated materials.
MODERATELY OIL RESISTANT (MOR) CONVEYOR BELT are antistatic according to DIN EN ISO 284:2004. Oil resistance depends on the construction of the belt
(ratio between cover and skim, cut or moulded edges, with or without a bottom cover). These belts are available in different constructions ranging from smooth belts, Supergrip, Finegrip, Noppen up to Chevron belts.
Oil and grease resistant conveyor belts are suitable for:
- concrete plants
- recycling and mineral processing plants
- waste sorting and compost machines
- metal processing industry, scrap recycling
- timber industry and sawmills
- excreta and sewage sludge conveying
- corn, rape and soilages conveying
- paper industry
- fertilizers handling
| Designation | Elastomer | Temperature range °C | Hardness ±5 Sh°A | Abrasion max. (mm3) | Application |
|---|---|---|---|---|---|
| MOR | NBR/SBR/BR | -20 to +100 | 61 | 130 | Moderately oil and grease resistant cover. Suitable for products with medium quantity of animal and vegetable fats and oils (grain, oilseed rape and tailings, compost, fodder mixtures, sawdust and wooden chips with a low pitch/terpene content, etc.). |
| MG PLUS | NBR/SBR | -15 to +100 | 65 | 150 | Oil resistant cover and moderately oil resistant skim coat. Suitable for materials containing animal fat or vegetable oil. This belt type is used within industries manufacturing and handling grain, fodder mixtures, soybean cakes, tinned goods, cellulose, wooden chips, fertilizers. Used for belts with cut edges and sliding transporters. |
| GMG | NBR | -25 to +100 | 60 | 130 | Highly oil resistant type of cover for transportation of products containing mineral oils, diesel fuel, terpene, etc. – even at increased temperatures. This type is resistant to lilamins that are used in fertilizing industry. |
| KMOR | NBR/BR | -25 to +60 | 60 | 150 | Oil resistant cover and moderately oil resistant skim coat. Fire and flame resistant cover according to ISO 340. Suitable for handling grain, fodder mixtures, soybean cakes, cellulose, wooden chips, fertilizers. Used in applications with fire safety requirements. Conveyor belt meets the following requirements: resistance to burning with covers, antistatic, drum friction test. |
| KGMG | NBR | -15 to +60 | 62 | 200 | Highly oil and grease resistant type. Used in applications with fire safety requirements – fire and flame resistant cover according to ISO 340. |
| SMOR | NBR/BR | -25 to +60 | 60 | 150 | Oil resistant cover and moderately oil resistant skim coat. Suitable for handling grain, fodder mixtures, soybean cakes, cellulose, wooden chips, fertilizers. Used in applications with fire safety requirements – fire and flame resistant rubber cover and carcass according to ISO 340. Conveyor belt meets the following requirements: resistance to burning with and without covers (also skim layer fire resistant), antistatic, drum friction test. |
| RMOR | NBR/BR | -30 to +60 | 63 | 150 | Moderately oil and grease resistant cover. Suitable for products with a medium content of animal and vegetable fats and oils (grain, oilseed rape and tailings, compost, fodder mixtures, sawdust and wooden chips with a low pitch/terpene content, etc.). Used for working conditions at low temperatures. |
| RMG PLUS | NBR/SBR | -25 to +60 | 65 | 130 | Oil and grease resistant cover and moderately oil resistant skim coat. Suitable for materials containing animal fat or vegetable oil. The belt type is used within industries manufacturing and handling grain, fodder mixtures, soybean cakes, cellulose, wooden chips, fertilizers. For belts with cut edges and for sliding transporters. Used for working conditions at low temperatures. |
APPLICATION:
MODERATELY OIL RESISTANT (MOR) CONVEYOR BELT is utilized to convey oily products such as fertilizer, foodstuff, soybean draft, components and parts coated with machine oil, and oil treated coal in coking plants and power generating plants, etc.
FEATURES:
Cover rubber of this belt is made of CR or NBR compound with properties of vegetable, animal and mineral oil resistance.
