Plied Textile Conveyor Belt

Plied Textile Conveyor Belt

The Plied Textile Conveyor Belt can make a Endless Skirt Conveyor Belt With T,C,TC,TS,TCS Cleats. Also can make heavy duty industry corrugated sidewall endless conveyor belt.

Layers of specially designed fabric plies are sandwiched between rubber Shim coats for adhesion and load support. Top and bottom cover compounds are added for maximum protection of the belt carcass. Belt can be manufactured according to various international fabric belt standards, at different rating an wide variety of cover grades. Belt applications involve in kind of industries such as mines, power plants, construction, ports, chemical industries.

Character of Rubber

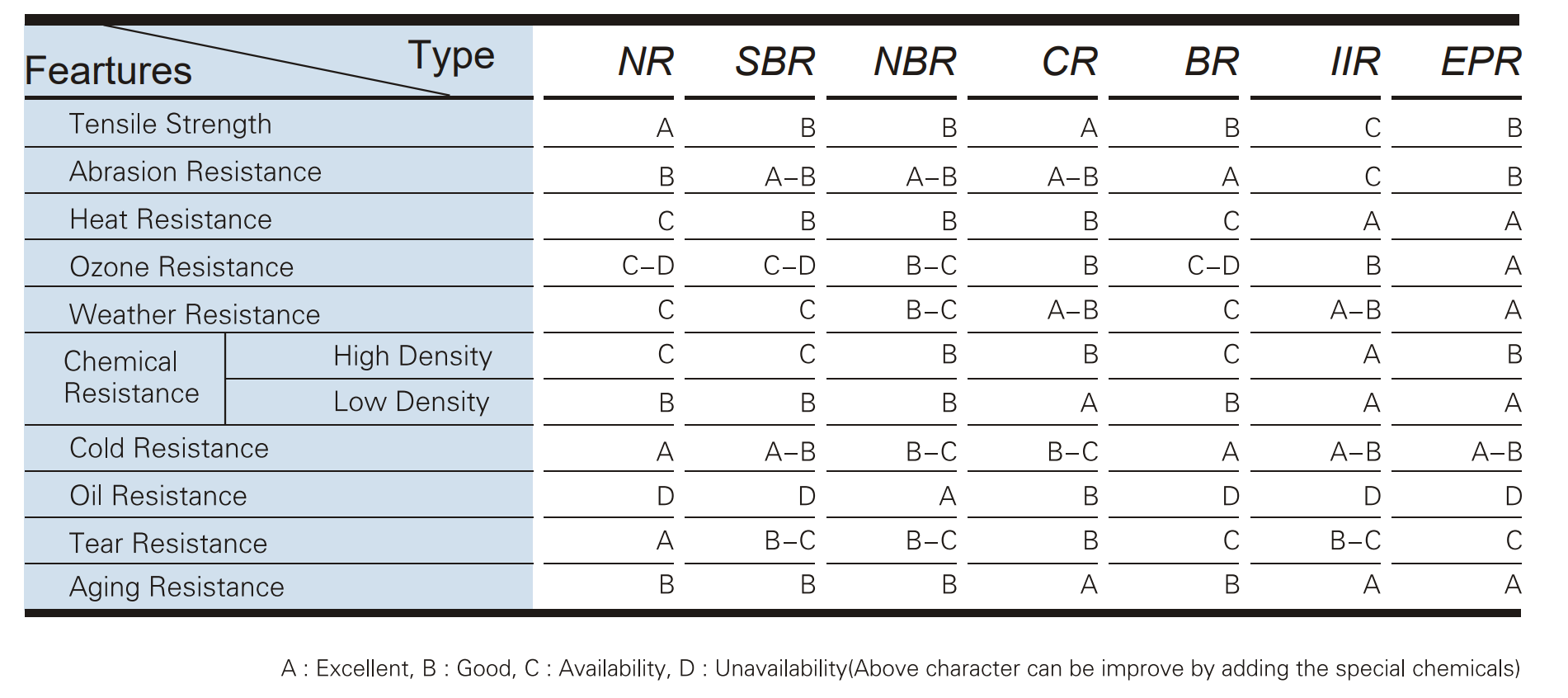

character of Rubber cover

Material Character of Rubber

Application:

Harbor, metallurgy, mining, electricity, coal, foundries, construction, food, cement works, fertilizer, etc.

Carcass: the carcass of the base belt can be CC, NN and EP fabric

Corrugated sidewall belts base tape is composed of an upper cover rubber, a lower cover rubber, a core and a lateral rigid layer. The thickness of the upper cover rubber is generally 3-6 mm; the thickness of the lower cover rubber is generally 1.5-4.5 mm, and the core material is subjected to tensile force, and the material thereof may be cotton canvas, nylon canvas, polyester canvas and steel cord core. In order to increase the lateral rigidity of the base tape, a reinforcing layer is added to the core, which is called a lateral rigid layer. Wave rib conveyor belts are widely used in the transportation of materials in ports, metallurgy, mining, electric power, coal, foundry, building materials and grain.

The ribbed conveyor belt transports a wide range of bulk materials in horizontal, inclined, vertical and variable angles, whether coal, ore, sand or fertilizer and grain. The particle size below the 400 MM particle size is not limited, and the delivery amount may be selected from 1 M3/hour to 6000 M3/hour.

Recommend Types:

EP630/4-1200-6+2 AS M

EP:Basic strength material is EP fabric

630/4:Tensile strength in warp is 630N/mm, 4 EP layers

1200:Belt width is 1200 mm

6+2:Thickness of top and bottom cover rubber 6mm, 2mm

AS M:Cover grade(according to AS M)

Material Character of Rubber

NR (Natural Rubber)

NR is gathered from rubber tree and has been widely used as most common rubber for a long time. It is used as cover rubber of general and high tensile conveyor belt.

Feature: Reinsitution elasticity, flexibility, cold resistance, tear resistance and tension.

SBR (Styrene Butadiene Rubber)

SBR is a copolymer of styrene and butadiene as the most common sythetic rubber. It is used as cover rubber of general, abrasion resistant and heat resistant conveyor belt.

Feature: Abrasion resistance , heat resistance.

NBR (Nitrile Butadiene Rubber)

NBR is a copolymer of acrylonitrile and butadiene. It is used as cover rubber of oil resistant conveyor belt due to superior oil resistance. Cold resistance is not good.

Feature: Oil resistance, abrasion resistance, suitability to ood transportation

CR (Chloprene Rubber)

CR is a copolymer of chloroprene and generally called as neoprene. It is used as cover rubber of the conveyor for I the special and complex use due to various properties.

Feature : Weather resistance, fire resistance, chemical ” resistance, oil resistance, heat resistance, superiority in mechanical property.

BR(Butadiene Rubber)

BR is used as cover rubber of conveyor in need of high abrasion resistance due to superior elasticity and abrasionresistance.

Feature: Abrasion resistance, cold resistance, superior reinstitution elasticity, Low dynamic heat.

IIR (Ethylene Propylene Rubber)

IIR is a copolymer of isoprene and isobutylene and used as cover rubber of conveyor in need of high heat resistance due to superior weather resistance and heat resistance.

Feature : Weather resistance, chemical resistance, ozone resistance, Low permeability of gas, High shock absorption

EPR(Ethylene Propylene Rubber), EPDM(Ethylene Propylene Diene Monomers)

EPR is a copolymer of ethylene and propylene and EPDM is a three component copolymer adding diene ingredients to EPR.It is used as cover rubber of conveyor belt in need of high heat resistance and ozone resistance.

Feature; Heat resistance, weather resistance, ozone resistance, chemical resistance, superior reinstitution elasticity.
