Straight Warp Belt (SW Belt)

Straight Warp Belt (SW Belt)

Main Features of Impact Weft Wire Mesh Belts (IW belts)
The rugged steel mesh design provides superior rip and tear resistance performance. IW belt protect the belt from penetration of foreign materials, and also provide excellent heat resistance property. Various cover compounds can meet specific application. IW belt combined with heat resistant compound provide superior heat resistance up to 300ºC and minimize maintenance downtime.

Product Description:

Straight Warp( SW ) Conveyor Belt is suitable for conveying large drop height, large load and high speed in occasions. This belt is widely used in mining, electricity and ports industries.

This belt adapts 1-2plies SW canvass to replace multiplies EP or Nylon canvass, which can save 7-17% full thickness, to improve the sinuosity of the belt. I can make the belt run well with smaller pulleys, which make the length of the belt reach 400-500meters, to save the loss of the production.

With special weaving method, SW fabric layer has a good performance of  high tension strength, and the working elongation of the belt can be reduced a lot. The special structure of straight warp can absorb impact higher than EP or Nylon material, which prolong the service life of the belt.

Standard Specification

SW STRENGTH APPLICABLE RUBBER GRADE APPLICATIONS
FABRIC X PLIES (KG/CM, KN/M, N/MM)
SW400 x 1P 400 ↑ Abrasion Resistant Steel
SW630 x 1P 600 ↑ Oil Resistant Mining
SW800 x 1P 800 ↑ Flame Resistant Coal
SW1000 x 1P 1000 ↑ Cold Resistant Cement Plant
SW400 x 2P 800 ↑ Heat Resistant Paper Industry
SW630 x 2P 1200 ↑ Impact Resistant Port
SW800 x 2P 1600 ↑ Chemical Resistant Power Plant
SW1000 x 2P 2000 ↑ Anti-Static Resistant Impact Conveying
Heavy Industry

Note:  It can be customized according to the customers’ requirements. Rubber cover quality of conveyor belt of different standard for choice:

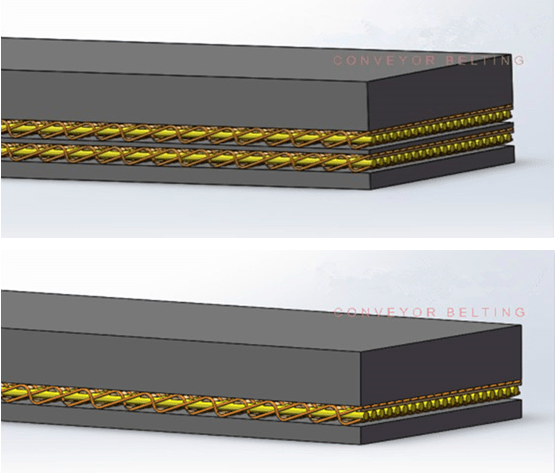

Straight warp rubber conveyor belt

Light

To compare with the belts having the same grade of the tensile strength, the SW belt provides 10%~20% less weight, power saving to minimize the load of conveyor accessories, so as to reach the efficiency of saving power source and cost down.

Thin

Use one or two plies replace the multi-plies construction make total thickness 7%~17% thinner, increase the strength smoothly under the smaller. This can help the belt running smoothly under the smaller pully. Each roll length can be 400~500m to reduce the waste.

Powerful

Use a special weave type of high-denier fiber to raise the tensile strength of the fabric, reduce the working elongation and replace the Mulit-plies construciton belts.

Tough

The special construction of the Straight Warp provides more impact absorption than EP or NN products, and increase the belt service life.

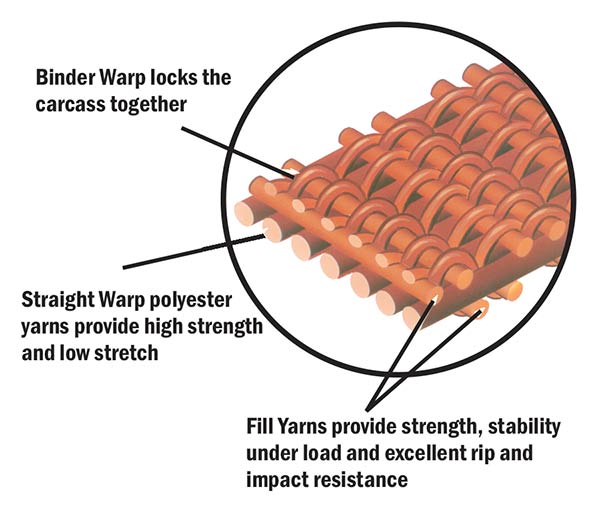

Parallel planes of heavyweight, high-strength yarns together with a binder yarn, develop a total departure from the traditional plies belt concept and constructions. It is designed to carry a large capacity of material, such as logs or crushed stone, have Superior endurance performance in rugged environment.

SW belt Application:

sw conveyor belt
Straight Warp Conveyor Belt (SW Belt)

Features:

Exceptional resistance to abrasion, cutting and snagging. Flexural fatigue and impact resistance is much better than the normal fabric. High-carrying capacity and very low stretch.

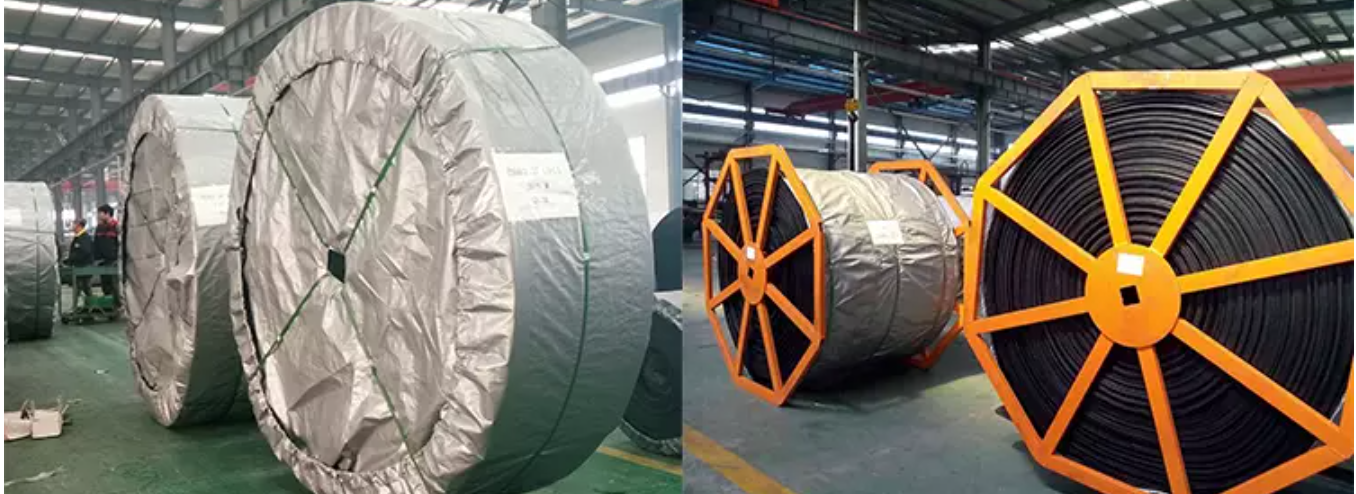

Packing & Delivery
