TPU belts or PVC belts

PU TPU PE PVC conveyor belt

light industry conveyor belt (PVC,PU,PE,TPU,TPEE,silicone,Teflon,fiberglass etc.)

Light duty conveyor belts are manufactured for all applications with various fabrics impregnation like polyester, nylon, cotton, solid woven, fiberglass etc. Belts are available in different colors like green, white, black, blue and thickness from 0.5 mm to 15 mm up to 3500 mm width and with top surface coating Rubber, PVC, PU,TPU,PE,TPEE,Silicone,etc.

ADVANTAGES:
Low operating noise and costs, reduced maintenance, excellent durability.
Largely impervious to oils, greases and many chemicals.
Special types give excellent grip on inclination.
Abrasion resistant – rugged, high strength – low stretch characteristic.
Light and thin, better strength / weight ratio – energy saving.
Superb tracking over great length – longitudinally flexible and laterally stiff.
PVC PU conveyor belt
Monster belting|TPU belts or PVC belts

TPU belts  (Thermoplastic Polyurethane)

  •  High flexibility even at low temperatures (-30°C)
  •  Best thermoplastic material in terms of abrasion resistance
  • Good resistance to vegetable/animal greases and oils
  • TPU based on Polyether is hydrolysis-resistant
  • No plasticizers

– TPU based on Polyester is not resistant to hot water (steam)
– Not resistant to most organic solvents

Applications:
Food industry
Nosebar
Process belt
Abrasive environment

TPO (Thermoplastic Polyolefin)PVC TPU belting

  • Excellent release and anti-sticking properties
  • Excellent chemical resistance
  • Excellent low temperature properties

– Standard TPO is not abrasion resistant

Main applications:

  • Tobacco industry
  • Food industry
Conveyor belt fabric layers:
A layer of cloth and a layer of glue, two layers of cloth and two layers of glue, three layers of cloth and three layers of glue, and so on. It can be customized according to your requirements.

Colors: red, yellow, green, blue, gray, white, black, blue, green, transparent (in general we have)
TPU conveyor strong chemical resistance: oil, water, anti-fungal.
Common thickness: 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 7.0mm, etc.
PVC conveyor commonly used colors: green PVC conveyor belt, white, black, blue, gray, etc.

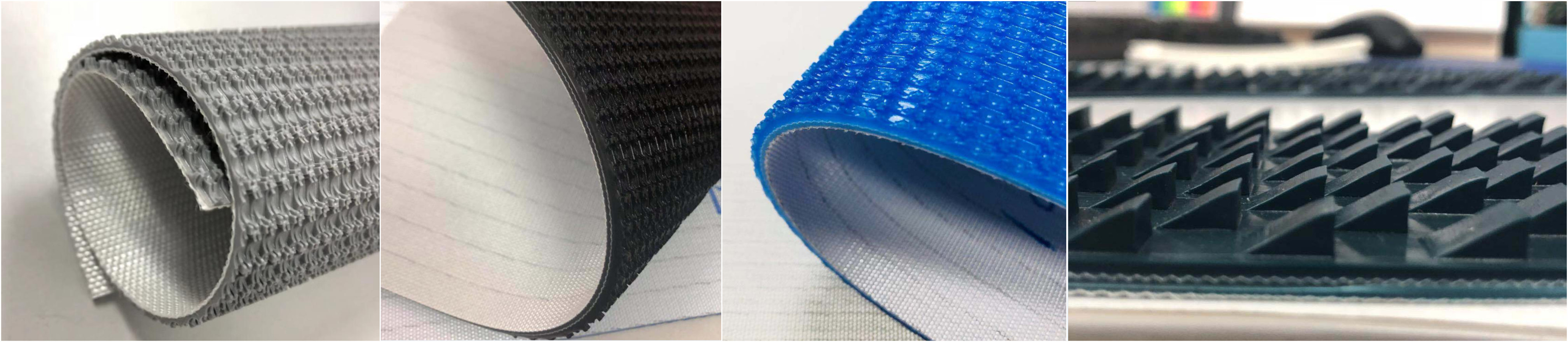

Appearance: flat surface, diamond pattern, lawn pattern, golf pattern etc.
Advantages: PVC: economical and practical, technology is mature.
PU: applicable to the food industry, abrasion resistant and corrosion.
Subsequent machining technology: it can add baffle, skirt, sponge, guide bar.

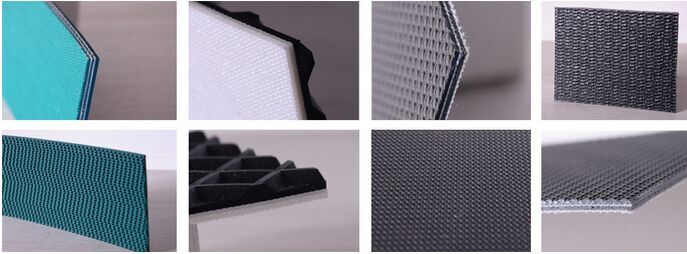

PVC Conveyor Belt

With advanced coating machine and other excellent facilities, high quality conveyor belts can be customized based on customers’ requirements.PVC PU PE PVK Conveyor Belt for Climbing conveyor

Specification of Conveyor Belt
We can customize the conveyor belts according to your requirements
Top Cover Material PVC
Color Green, white , black
Thickness 1mm
Pattern Smooth
Hardness 75 °shA
Bottom Cover Color Customized
Pattern Customized
Working Temperature -10/+80 ºC
No. of Plies 2
Belt Thickness 2mm
Weight 2.5 kg/m2
Breaking Load ≥100 N/mm
Working Load at 1% Elongation ≥8 N/mm
Minimum Pulley Diameter 40mm
Max Roll Width 3000mm

We can customize PVC & PU & PVK & PE conveyor belt according to your requirements

Thickness 0.5-12mm
Width ≤3000mm
Material PVC/PU/PVK
Color Green, white, petrol green, black, grey, dark grey, dark green, sky blue, orange, yellow, transparent, etc.
Pattern Smooth, diamond, saw tooth, both way saw tooth, rough top, matt, squire rough top, stripe, dot, lozenge, checker, golf, wave rough top, herringbone, treadmill, mini-grip, crescent, tape, majiang, solid-woven, sort tooth, etc.
No. of Plies 1ply, 2plies, 3plies, 4plies, and so on
Coating’s Feature Antistatic, thicker, harder, deeper, softer, fire-resistant, oil-resitant, cold-resistant, etc.
Fabric’s Feature Flexible, kevlai, felt, low-noise, jogger, cotton

Popular Belt Types

Rubber timing belts – they are either open-ended or endless with fiberglass or steel cord.

Polyurethane timing belt – specially designed for food products with a thermostat mold.

Polyurethane belts – thermoplastic manufactured with custom lengths and quick installation.

Endless polyurethane flex – manufactured with special production processes to allow for endless, ideal for unloading and side-loading.

Conveyor belts – made from fabric, TPU, OR PVC.

Flat rubber and polyurethane belts – Found in different types such as the woven, cast, and extruded.

Poly-rib – high level of reduced slippage and tension because they are manufactured from rubber and polyurethane.

grass belt for wood machining

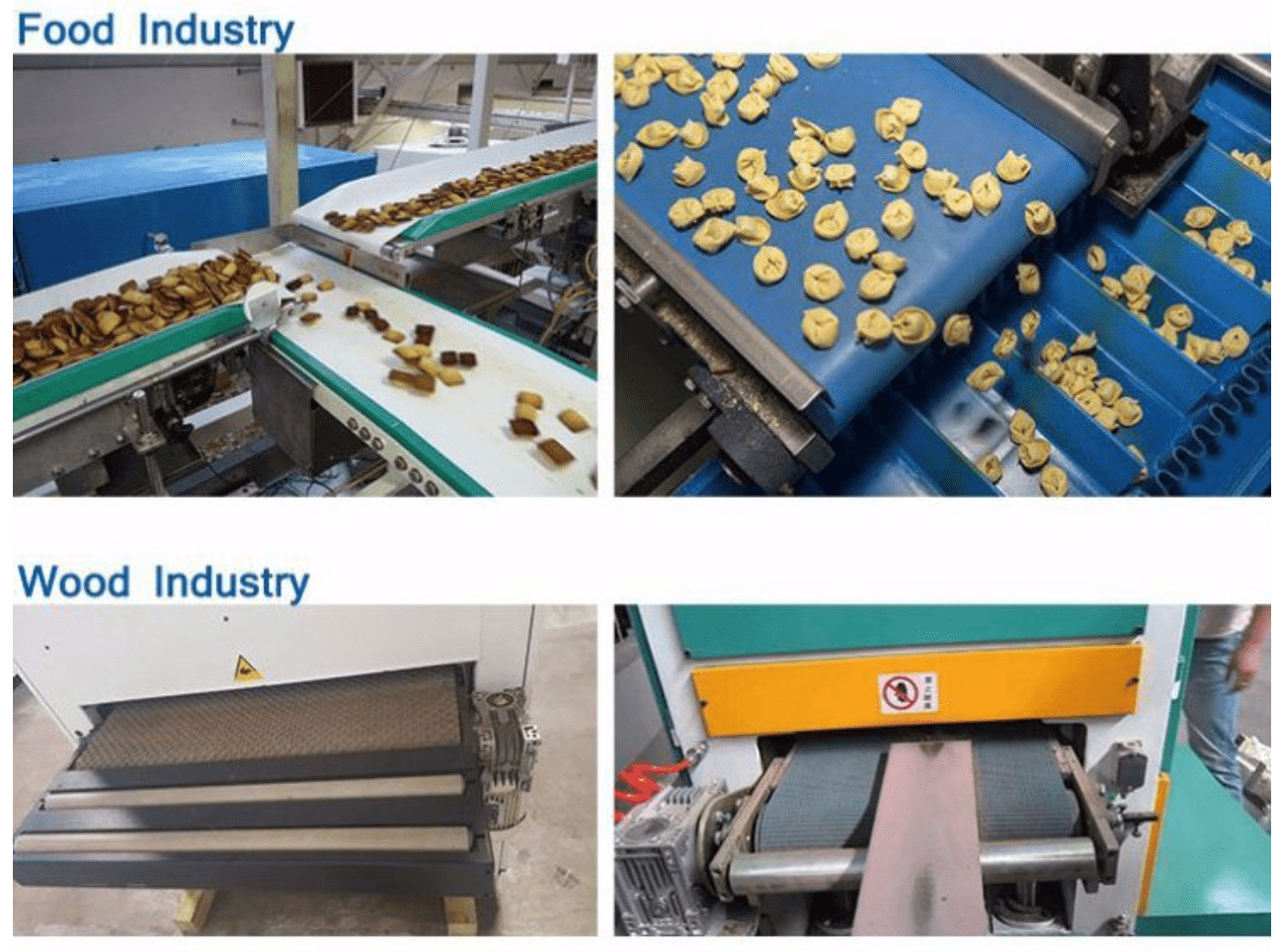

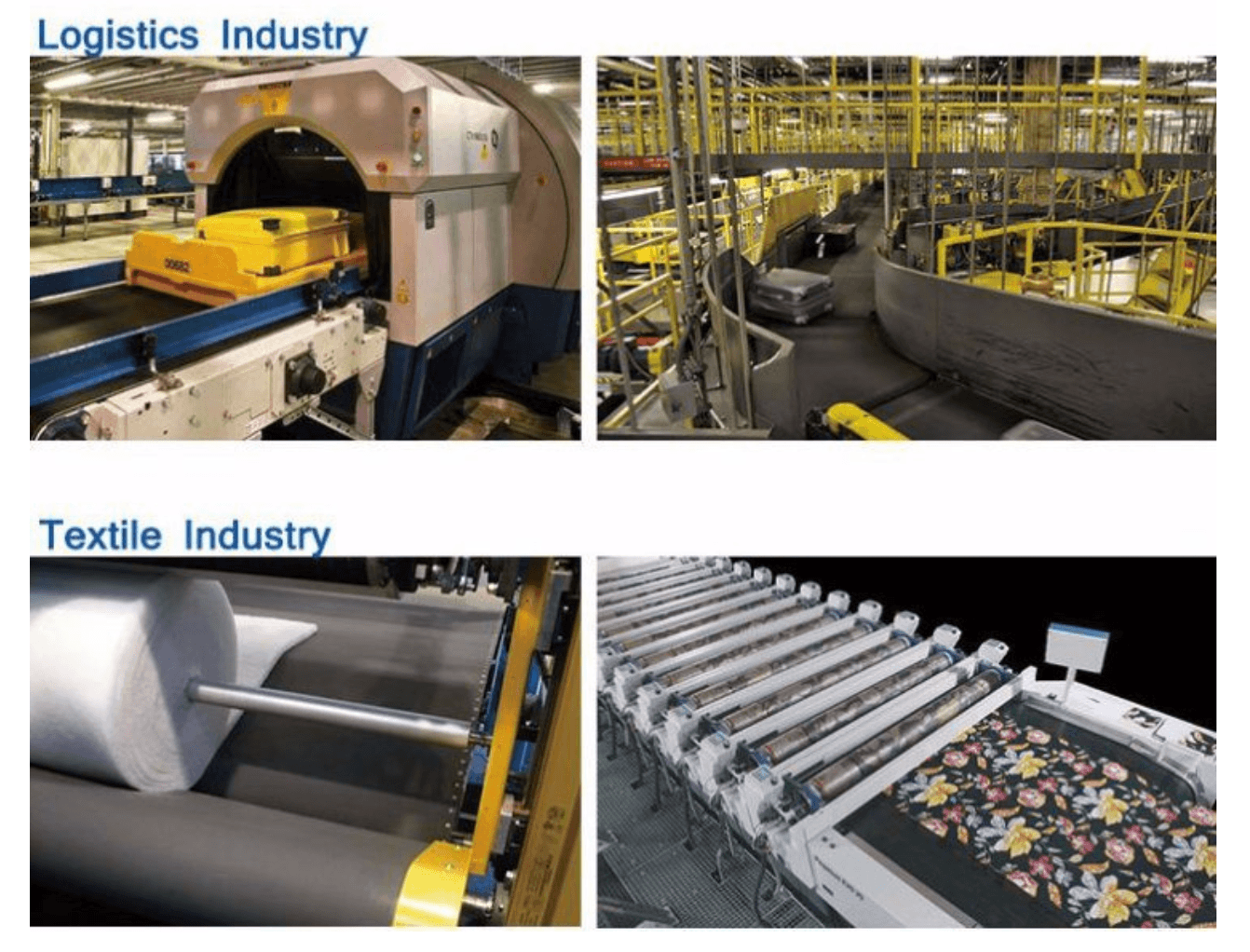

TPU belts or PVC belts application

Alternative to Dunlop belt

Logistics industry

Paper and print industry

Packaging machines

Labelling machines

Cardboard industry

Cable and wire industry

Electronics industry

Wood industry

Tobacco industry

Food industry

Metal industry

PVC belt used in food industry
