Profile & chevron rubber conveyor belt

Rubber Conveying Belt Profile & Patterned Rubber Belts

Our chevron rubber conveyor belt and developed for providing desired space-saving on steep inclines which can go up to 40 Degrees. In such situations, these conveyor belts are designed to deliver enhanced load carrying capacity in bulk with lump size of up to 150mm.

Belt types

Types: Open V, Closed-V, L type, H type, Y type, A type and F type, etc.

Width: 400MM-1800MM

Thickness: 4-50mm

Types: EP80-EP630

Feature: Good adhesion and long working life

chevron cleated conveyor belt

Rubber Tensile Strength: 10MPa, 12MPa, 15MPa, 18MPa, 20MPa, 24MPa

chevron conveyor belt manufacturers

Types: Open V, Closed-V, L type, H type, Y type, A type and F type, etc.

DIN Y chevron rubber belt

Applications: Coal, Mining, Cement Plant, Power Plant

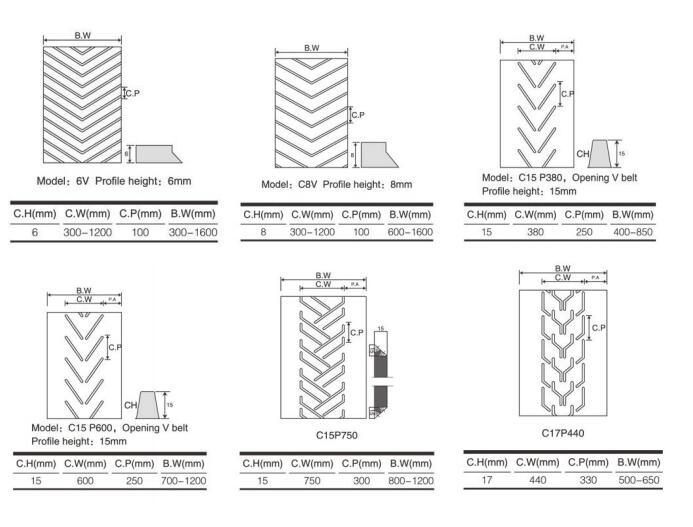

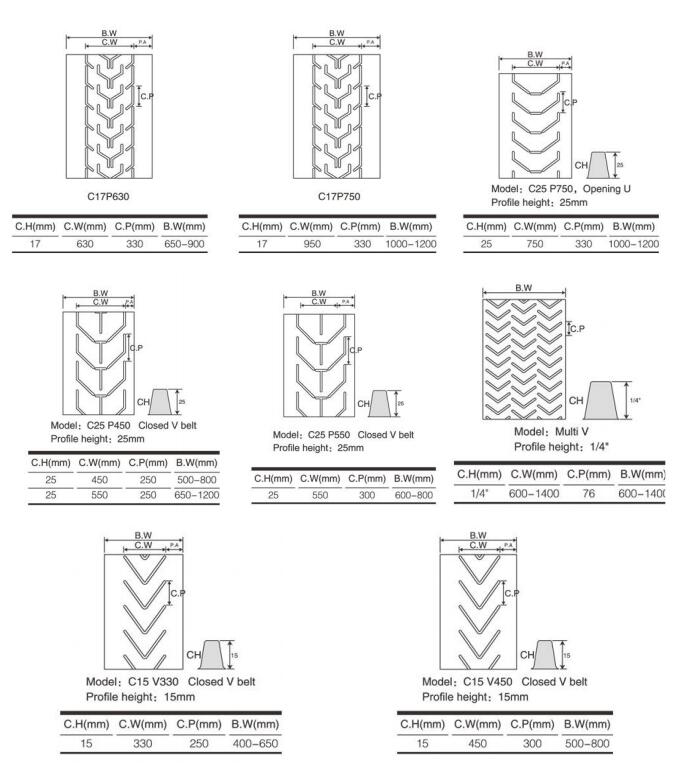

Specifications For Chevron Conveyor Belt

chevron belt conveyor design
Monster belting | Profile & chevron rubber conveyor belt

Selections:

Selection the type and height of cleats depends on the material to be conveyed and the angle of inclination:

Type of material

Material example

Max. angle of inclination

Height of cleats

H(mm):
14

H(mm):
16

H(mm):
25

H(mm):
32

Powdery

Flour, etc.

25°

25°

28°

30°

Loose flowing

Corn, barley, wheat, rye, etc.

20/25°

20/25°

25/30°

25/30°

Loose rolling

Gravel, ground stone, etc.

25°

25°

28°

30°

Sticky

Wet sand, ash, wet loam, etc.

30°

30/35°

35/40°

40/45°

Packed

Sacks, paper sacks, etc.

30/35°

30/35°

35/40°

35/40°

Basic Product Description:
Chevron rubber conveyor belt is an inclined conveyor belt composed of cover glue with pattern on working face and cover glue with belt core with plane on non-working face. Patterns can be opened or closed, and each pattern can be divided into three types: high, medium and low. It is suitable for powder, granular and small pieces of material conveying with an inclination of less than 40 degrees. It can also convey bagged materials.

Product Paramenters

Model
EP100-EP500
Brand
Monster Belting
Origin
China
Size
customized
Rubber Grade
10MPA-24MPA
Colour
Black
Shape
Rolls
Package
PP package
Material
rubber and fabric
Edge
round/cut edge
Pattern
open/close V, U,UT,Y,UY
Pattern Height
5mm-32mm
