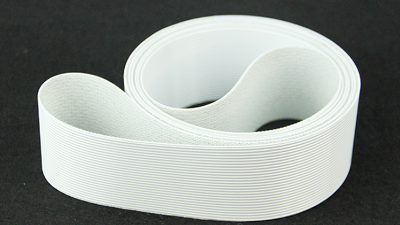

PU food grade white conveyor belt
Product details
pu food grade white conveyor belt selects EP or cotton canvas as its inner fiber clothing. The belt body has a good elasticity performance, and it not easily transformed. The rubber cover of the belt is made of pure natural rubber and non-pollutive additives, or pu material. The rubber cover is white or pale in color, non-pollutive, with no bad smell and won’t influence the food smell. This product is reasonable in formula design, suitable in color, light and lasting-forever in use. . Material, milk white pured nature rubber . High abrasive, long working life . No pulluting Food during conveying, no dirty spot on surface . Super belt width available, till 6.0 meters It is suitable for conveying cereais , the other foods, in bulk or packed in tins, bales or cases in food industry or cereal industry.
Technical Indexes
Items | Unit | Indexes | |
Cover Rubber | Tensile Strength | Mpa | 14 |
Elongation at break | % | 350 | |
Abrasion | mm3 | 120 | |
Adhesion | Between rubbe and canvas | N/mm | 5.7 |
Between plies | 4.0 |
Hygienic Indexes
Items | Unit | Index | |
Remains of Vaporiztion | 4% Acetic Acid Soaking Liquid | mg/l | 1000 |
Hexane Soaking Liqiud | mg/L | 2000 | |
Potassium permanganate consumption water soaking liquid | mg/L | 70 | |
Zinc 4% Acetic Acid Soaking Liquid | mg/L | 60 | |
Heavy metal (Pb) 4% Acetic Acid Soaking Liquid | mg/L | 1. | |
Fading Test | Soaking Liquid colorless Oil or Edible Oil | Negative |
PU food grade white conveyor belt for Sugar plant
A layer of cloth and a layer of glue, two layers of cloth and two layers of glue, three layers of cloth and three layers of glue, and so on. It can be customized according to your requirements.
Thickness:
PU (0.8~4mm)
Appearance :
Flat surface, bright surface, smooth surface, matt surface, grossy surface, polished surface, diamond pattern, lawn pattern, golf pattern etc.
Products details :
Belt Code | Raw Material Code | Colour | Pattern | Total Thickness mm | Top Coating Hardness ShoreA | Weight Kg/m2 | Belt Tension1% Elongation N/mm | Min. Pulley Diameter mm | Working Temperature ℃ | Type Of Support R=Roller S=Slab T=Trough | Lateral Stability | Food Grade | Oil resistant | Max. Production Width mm |
U12-14BA | 311001 | 7 | S | 0.8 | 92 | 0.9 | 6 | 10 | -20/+80 | RS | Y | Y | Y | 2000 |
U12-14/26BA | 311002 | 7 | 26 | 0.8 | 92 | 0.9 | 6 | 10 | -20/+80 | RS | Y | Y | Y | 800 |
U12-24BA | 311003 | 2 | S | 0.8 | 86 | 0.9 | 6 | >3 | -20/+80 | RS | Y | Y | Y | 2000 |
U12-24A | 311004 | 2 | S | 1.0 | 86 | 1.0 | 6 | 15 | -20/+80 | RS | Y | Y | Y | 2000 |
U12-24/1A | 311005 | 2 | 1 | 1.2 | 86 | 1.0 | 6 | 15 | -20/+80 | RS | Y | Y | Y | 2000 |
U22-14A | 322001 | 7 | S | 1.5 | 92 | 1.6 | 12 | 20 | -20/+80 | RS | Y | Y | Y | 2000 |
U22-14/0A | 322002 | 7 | 0 | 1.5 | 92 | 1.6 | 12 | 20 | -20/+80 | RS | Y | Y | Y | 2000 |
U22-24A | 322003 | 2 | S | 1.5 | 92 | 1.6 | 12 | 20 | -20/+80 | RS | Y | Y | Y | 2000 |
U22-24RA | 322004 | 2 | S | 1.5 | 86 | 1.6 | 12 | 10 | -20/+80 | RS | Y | Y | Y | 2000 |
U22-24/0A | 322005 | 2 | 0 | 1.5 | 92 | 1.6 | 12 | 20 | -20/+80 | RS | Y | Y | Y | 2000 |
U22-24/1A | 322006 | 2 | 1 | 1.8 | 92 | 1.6 | 12 | 20 | -20/+80 | RS | Y | Y | Y | 2000 |
*U22-74/0GA | 322007 | 7 | 0 | 2.3 | 92 | 2.2 | 12 | 40 | -20/+80 | RS | Y | Y | Y | 2000 |
*U22-34/0H | 322008 | 3 | 0 | 2.6 | 92 | 2.8 | 18 | 80 | -20/+80 | RS | Y | Y | Y | 3000 |
U2-1
| 300001 | 7 | S | 1.4 | 92 | 1.3 | 14 | 20 | -20/+80 | RS | Y | Y | Y | 2700 |
U2-2
| 300002 | 2 | S | 1.4 | 86 | 1.3 | 14 | >6 | -20/+80 | RS | Y | Y | Y | 2700 |
*U2-3/33i | 300003 | 3 | 33 | 1.4 | 92 | 1.3 | 14 | 20 | -20/+80 | RS | Y | Y | Y | 2000 |
*U2-7/33i | 300004 | 7 | 33 | 1.4 | 92 | 1.3 | 14 | 20 | -20/+80 | RS | Y | Y | Y | 2000 |
U22-16P | 301001 | 7 | S | 4.0 | 92 | 4.3 | 10 | 80 | -15/+80 | RS | Y | Y | Y | 2000 |
U22-26P | 301002 | 2 | S | 4.0 | 92 | 4.3 | 10 | 80 | -15/+80 | RS | Y | Y | Y | 2000 |
Advantages:
PVC: economical and practical, technology is mature. Non-toxic, odorless, environmentally friendly.
PU: abrasion resistant and co9 rrosion.
Applications :
PVC: Food, medicine, electronics, tobacco, printing, packaging, textile and other production lines belt.
PU: Most applicable to the food industry and other industries .
Packaging & Shipping
Water proof nylon wrapping/carton/plastic/wooden box for PU Conveyor Belt
