PVC 150 Black Crescent Top Conveyor Belt

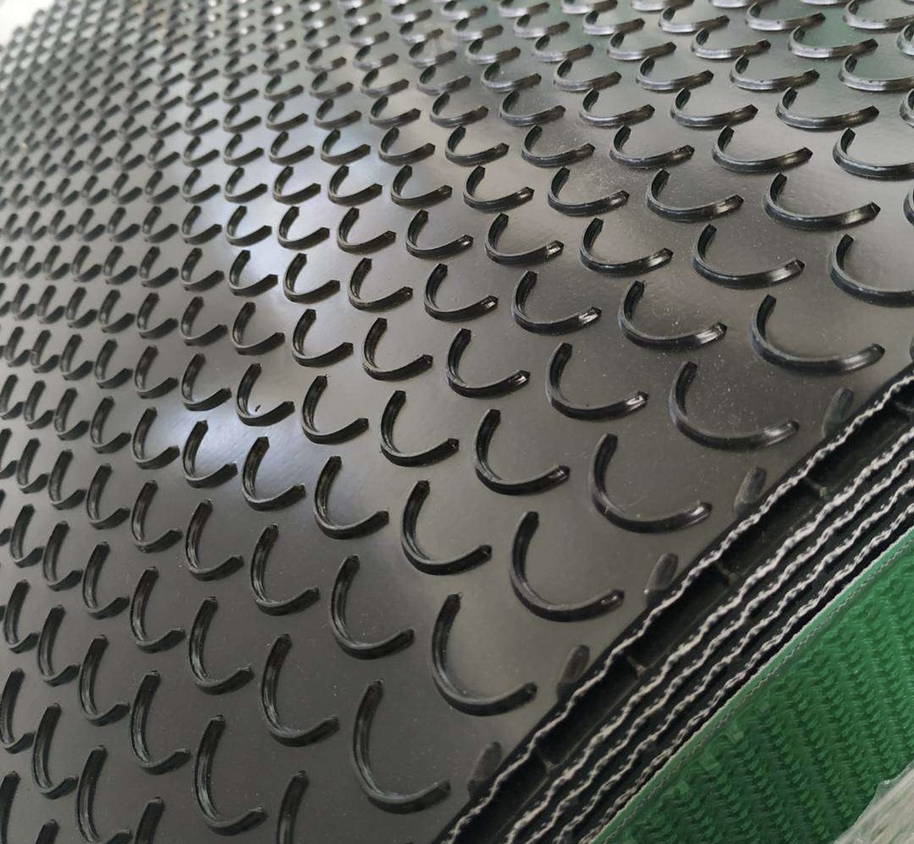

  • Our PVC Black Crescent Top Conveyor Belt made of PVC has an aggressive scoop pattern for high incline conveying.
  • The Crescent pattern forms hundreds of small “buckets” which help conveying as well liquids along with the transported solids.
  • Conversely, the conveyor belt can be started in the opposite direction, and the upside-down crescents convey solids and simultaneously drain off the liquids.
  • The PVC conveyor belt operates smoothly and quietly without noise on return.

PVC 150 Black - Crescent Top Conveyor Belt

Crescent top chevron - PVK conveyor belt with PU surface
PVC 150 Black - Crescent Top Conveyor Belt

BELT APPLICATIONS:

Black Crescent Top Conveyor Belt BULK PRODUCT CONVEYING, FRUITS, GENERAL CONVEYING, HORTICULTURAL, INCLINE, INDUSTRIAL, MATERIAL HANDLING, PACKAGING, RECYCLING, TURN APPLICATIONS, TROUGHED APPLICATIONS, VEGETABLE OIL, VEGETABLE PRODUCTS

TECHNICAL DATA

BELT THICKNESS: mm .26″
PULLEY DIAMETER (MIN.): 76.2 mm 3″
PULLEY DIAMETER (MIN.) BACK FLEXING: mm
BELT WEIGHT: kg/m² .09 lb/ft²
PRODUCTION WIDTH: 1829 mm 72″
BREAKING STRENGTH:
TENSION FOR 1% ELONGATION: 150 lbs/in
MAX. ADMISSABLE BELT TENSION (EQUAL TO 1.8% STRETCH):
OPERATING TEMPERATURE: ° to ° C 0° to 180° F

BELT CONSTRUCTION

TOP COVER MATERIAL: PVC
SURFACE FINISH: Crescent
PROPERTY:
COLOR: Black

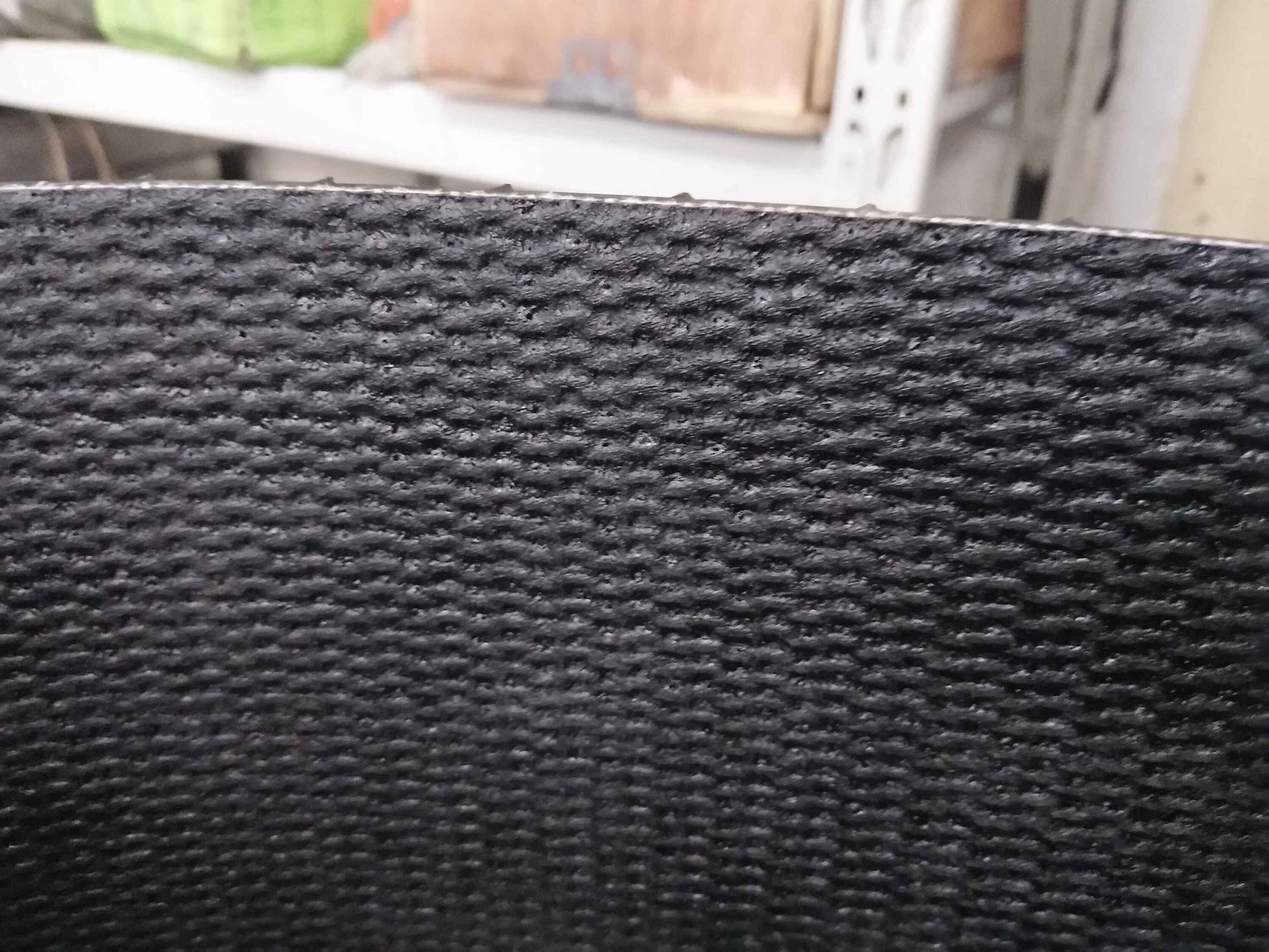

BOTTOM COVER MATERIAL: Interwoven Fabric
SURFACE FINISH: Brushed
COLOR: Black

BELT FABRIC

TOP PLY: UNIPLY INTERWOVEN
INNER PLIES:
BOTTOM PLY:
TOTAL NO. OF PLIES: 1

Q: What is your payment term?
A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept other ways after discussion.

Q: Could i buy sample first or small order and is the sample fee refundable?
A: Of course. We accept sample and small order especially for new customs and of course the sample fee will be refundable when
order confirmed.

Q: When can delivery from ordering?
A: The delivery time depend on the quantity you ordered, generally about 15-45 days after deposit of payment.

Q: What is the quality of your products?
A: Quality is our corporate culture, we regard product quality as life of our company. We have achieved a lot of certifications to
meet customs requirements. As a factory, we can control all process of production 100% and every single product will be tested
qualified before shipping.

Q: How long is the warranty of your product?
A: Our warranty period is usually one year. But the warranty period can be extended after discussion and agreement.
