Specification: PVC Conveyor Belting PVC 150 Green Super Grip RT x FS
Description: Conveying products on severe inclines/declines.
Thickness: .320″
Weight: .100 lbs. piw
Minimum pulley diameter: 2-1/2″
Temperature range deg. F: 20 to 180
Recommended fasteners: Clipper #3, Alligator Staple #187

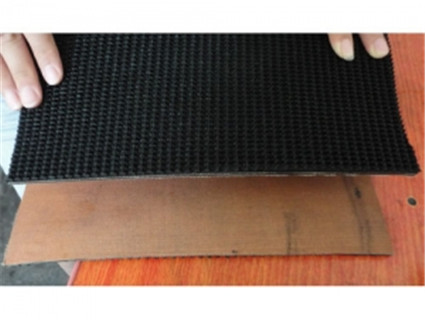

Specification: PVC 120 Black / Rough Top x BB
Description: Conveying boxes and other products on slight inclines/declines.
Thickness: .310″
Weight:.095 lbs. piw
Minimum pulley diameter: 2″
Temperature range deg. F: 20 to 180
Recommended fasteners: Clipper #2, Alligator Staple #125
Specification: PVC 120 Black COS
Description: Economical, general purpose specification, ideal for light duty applications.
Thickness: .135″
Weight: .070 lbs. piw
Minimum pulley diameter: 2″
Temperature range deg. F: 20 to 180
Recommended fasteners: Clipper #1, Alligator Staple #125
Specification: PVC 170 Red Super Grip RT x FS
Description: Super Grip RT x FS – Conveying products on severe inclines/declines.
Thickness: 370″
Weight: .117 lbs. piw
Minimum pulley diameter: 4“
Temperature range deg. F: 20 to 180
Recommended fasteners: Clipper #4 Alligator Staple #187
Specification: 2-Ply PVC 150# Black CBS
Description: For recycling, agricultural, wood and industrial oily applications.
Thickness: .160″
Weight: .088 lbs. piw
Minimum pulley diameter: 2-1/2″
Temperature range deg. F: -20 to 180
Recommended fasteners: Clipper #2 Alligator Staple #125
Specification: PVC 120 Black COS Low-Temp
Description: For applications when low temperatures can be a factor.
Thickness: .130″
Weight: .069 lbs. piw
Minimum pulley diameter: 2″
Temperature range deg. F: -30 to 180
Recommended fasteners: Clipper #1, Alligator Staple #125
PVC conveyor belt Abbreviation
AS = Antistatic
B = Bare
C = Cover
COS = Cover One Side
C/P = Cotton/Polyester Blend
CR = Cross Rigid
FBS = Friction Both Sides
PIW = (Per Inch Width) area 1 inch
wide x 1 foot long
RC = Release Cover
FI = Fabric Impression
FS = Friction Surface
FR = Flame Resistant
HD = Heavy Duty
LI = Light Impression
MOR = Moderate Oil Resistant
MSHA = Mine Safety Health Admin.
MSK = Mini Skim
SB = Slider Bed
SC = Static Conductive
SOR = Super Oil Resistant
WPHP = Woven Polyester High
Permeability
WPLP = Woven Polyester Low
Permeability
WPMP = Woven Polyester Medium
Permeability
Heavy Duty PVC Conveyor Belt
Offering a range in PVC conveyor belts; Monster Belting supplies conveyor belts for various industrial purposes such as agricultural, recycling, wood and economical transportation. Each conveyor belt is designed in different thickness and weight with compatible temperature range in degree Fahrenheit. Scroll below to know more about its features.
