Pvc solid woven conveyor belt for Coal Handling

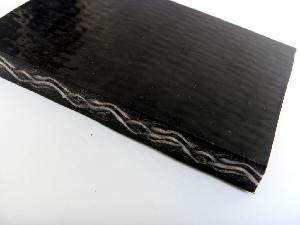

Solid-Woven-Conveyor-Belt-PVG1250s-
Solid Woven Fire Resistant Conveyor Belt

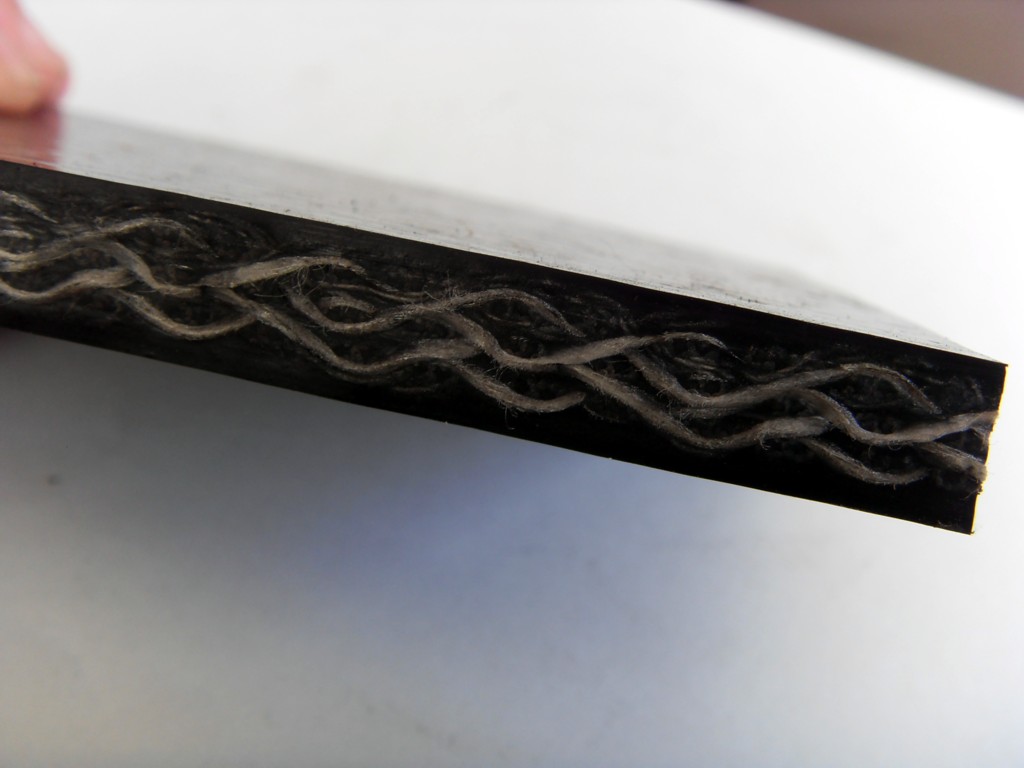

Solid-Woven-PVC-PVG-Conveyor-Belt

PVC Solid Woven Belt

We are a leading and professional manufacturer of  PVC Solid Woven Conveyor Belt. , with more than 15 years research and development experience. Our products are sold to more than 30 countries around the world and receive favorable feedback from our customers. All the belts we provide meet cover grades and are in accordance with International standards (e.g. DIN 22102, RMA, AS 1332, SABS 1173/2000,IS 1891, BS 490, JIS K 6322 etc).  These belts are ideal for bulk handling a wide range of heavy and abrasive materials successfully catering to various industries; quarry, stone crushing & screening, cement & process, mining, ports, ready-mixed concrete, sand washing, asphalt, organic fertilizer, chemical fertilizer and many more.

PVC/PVG solid woven conveyor belt

Also called “PVC/PVG solid woven entire core belt”.

PVC and PVG Entire core belt conveyor belt has the advantages of strong strength, large freight volume, transportation balance, etc., while in the meantime this conveyor belt has very good flame resistance, antistatic property , impact resistance, abrasion resistance and corrosion resistance.

Applications:

This conveyor belt is applicable in all areas, especially areas with high impact conditions and low maintenance requirements, such as coal mining, power plant, chemical factory, metallurgy industry, etc.

Entire core flame retardant belt conveyor belt can be divided into PVC type and PVG type.

  • Properties – Excellent flame, Anti-static characteristics for fiery applications
  • Strength – High tensile strength in proportion to weight
  • Carcass – Good integrity, no delamination and excellent resistance to impact
  • PVC – Solid Woven Fabric dipped in PVC paste combined together by vulcanization
  • Application – Utilized in dry conditions with a slope angle less than 16°
  • PVG – Solid Woven Fabric dipped in PVC paste including Nitrile rubber covers combined by vulcanization
  • Application – Utilized in wet and low temperature applications. Resistant to wear, slip and elongation

The solid woven fabric uses high tensile strength and low elongation polyester long filament as warp fibre, for weft fibre, it uses high tensile and medium modulus nylon filament. The fabric is high in strength, low in elongation, light in carcass, free of separation of plies, shock resistant, anti-tear and good in trough ability.

Product specifications and performance parameters:
Specifications Color Rated Tensile Strength in Warp(N/mm) Thickness (mm) Working Temperature(ºC) Elongation at Rated load (%) Recommended Min. Diameter of pulley (φ)
PVC480 Blue 520 4.0~4.2 -35~+90 0.60 100
PVC680 680 5.3~5.8 0.70 150
PVC880 880 6.8~7.1 0.70 250
PVC1080 1080 8.5~9 0.70 350
Cover rubber performance:
Item Technical Index
Tensile Strength MPA ≥ 15.00
Elongation at break % ≥ 300.00
Abrasion Loss mm3≤ 100.00
Electrical MΩ ≤ 300.00
Comparative test report of PVC solid woven conveyor belt, Elevator belt:
Product Name:PVC solid woven conveyor belt/ Reinforced Elevator belt Specification model:PVC880/800YP
Judgment basis of the test: refer to “HG/T2577-2006” rubber or plastic elevator belt”
Test result
Item Test Value Test methods
PVC880 800YP
Full thickness performance  Tensile Strength in Warp N/mm 955 800 GB/T3690-2009
Elongation at Rated load (%) 0.70 1.6 GB/T3690-2009
Elongation in Warp (%) 24 24 GB/T3690-2009
Adhesion strength  N/mm 9 4.5 GB/T532-2008
Cover rubber performance Anti screw pull-through strength N 11250 8500 pull-through resistance test report
Low temperature resistance performance No stratification and surface cracking Refer to GB/T7758-2002
Elongation at break % 450 420 GB/T532-2008
Abrasion resistance mm3 80 150 GB/T1689-2014
Hardness Shore A 70 60-65(rubber) GB/T531-99
Friction coefficient (with steel) 0.68 0.75 Refer to ISO21182:2005
Coefficient of friction (with rubber) 0.86 Adsorption>1 Refer to ISO21182:2006
Oil resistance performance (volume expansion rate)% 3 20 Volume expansion test method
Acid and alkali resistance performance (volume expansion rate)% 0.8 5.2 Volume expansion test method
Test results    In summary, for grain and oil and feed processing, the overall performance of PVC solid woven conveyor belt is much better than rubber elevator belt.

We have a self equipped laboratory with precision testing equipment like rheometer, universal testing machine, mooney viscometer, aging ovwn, bond test load cell, electronic dencimeter etc.

  • Superior endurance against combined cutting, gouging, heavy impact and superior abrasion resistance.
  • pvc solid woven conveyor belt has excellent long life and minimal replacement, stock maintenance cost.
  • It provides increased & extended service life without increasing cover thickness.
abrasion-resistant PVC solid woven belt

Physical

Physical and mechanism properties of cover layer (DIN22109)

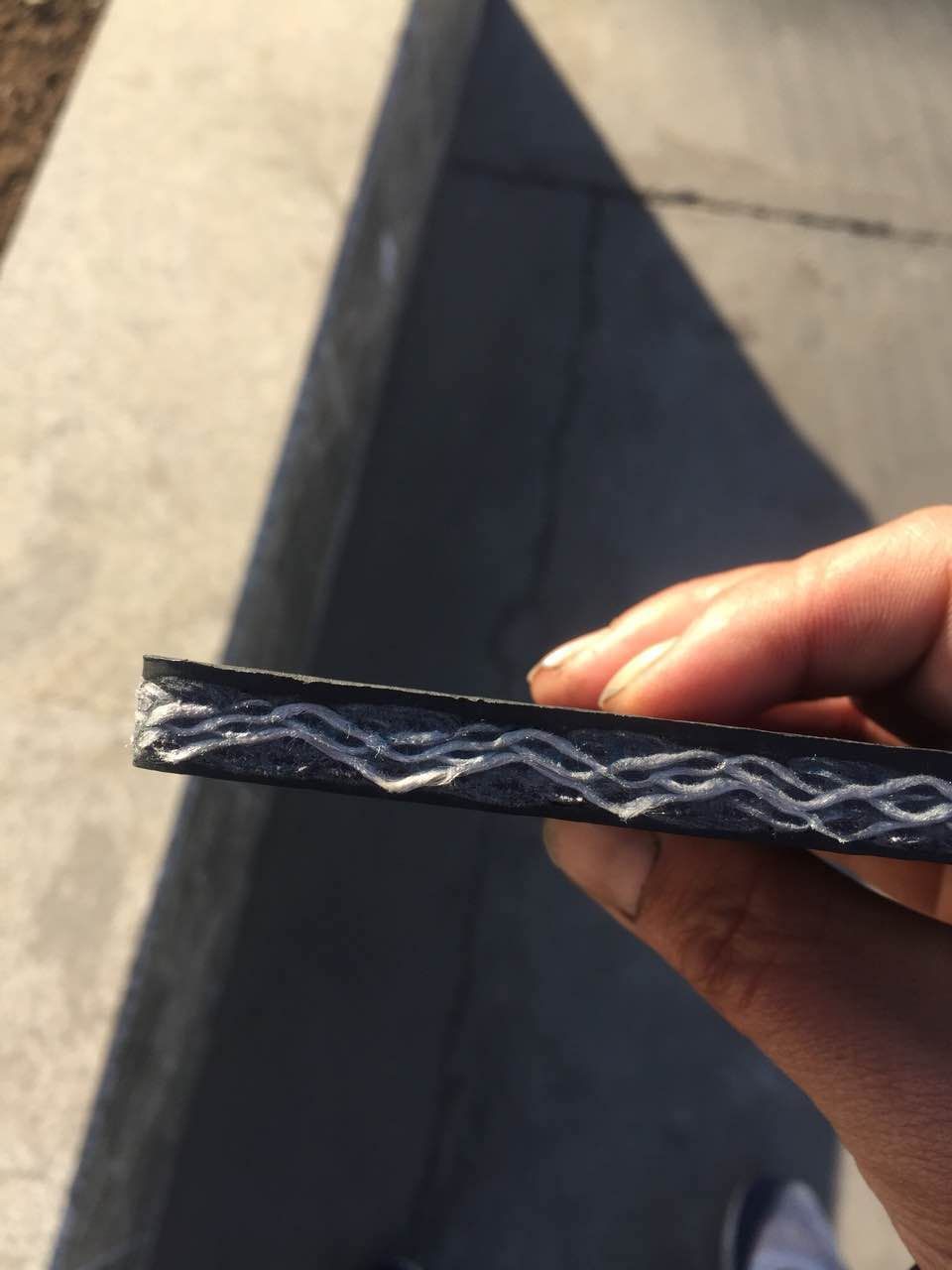

PVC 250 belt

Application

Used for underground material conveying in the coal mine, also for the material conveying of metallurgy and chemical industry.

PVC solid woven belt

PVG cover (nitrile rubber)

It’s mainly used for conveying materials in underground coalmines, which can be divided into PVC type and PVG type.
