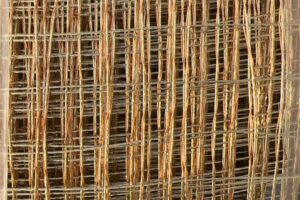

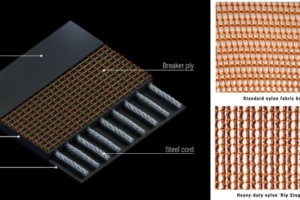

Carcass Material

The RIP STOP Steel Cord Belt features a specially designed carcass reinforced with steel cords to provide exceptional durability, flexibility, and impact resistance. This design ensures longevity and optimal performance in high-demand applications.

Active Belt Protection

The RIP STOP Steel Cord Belt is engineered with active protection mechanisms to reduce the risk of belt failure caused by longitudinal cuts or punctures. The reinforced structure minimizes material damage and ensures reliability under challenging conditions.

·Impact resistant

·Good troughing index

·Fatigue resistant

·Wearing resistant

·Thin thickness

·High temperature resistant

·Tear resistant

·Strong adhesion

·Cutting resistant

ST value	Strength (N/mm)	Weigth of mesh	Thickness	Diameter (mm)	Weft cord
warp/strength		(kg/m2)	of mesh
(N/mm)			(mm)		Tearing strength	Break Elongation	Pitch (mm)
					(N)
≦1000	125	0.61	1.85	1.23	1050	>5%	8.2
1250-1600	150	0.73	1.85	1.23	1050	>5%	6.8
2000-2500	200	0.96	1.99	1.37	1325	>5%	6.4
3150-3500	250	1.2	1.99	1.37	1325	>5%	5.1
4000-4500	300	1.32	2.14	1.52	1720	>5%	5.5
≧5000	400	1.71	2.14	1.52	1720	>5%	4.2
≧5000	500	2.22	2.64	2.02	2900	>5%	5.6
≧5000	650	2.81	2.64	2.02	2900	>5%	4.4

Ripstop steel cord conveyor belt need to consider warp strength. Ripstop steel cord conveyor belt also
consider the belt speed, Other critical factors include belt speed, operating environment, conveyed materials, belt cover thickness, belt width, ply number, and additional conditions. The above specification reference in one single ply ( In the higher strength, speed, harsh environmen- tal conditions, the user need to consider in higher than specifications of 650 )

Rip test

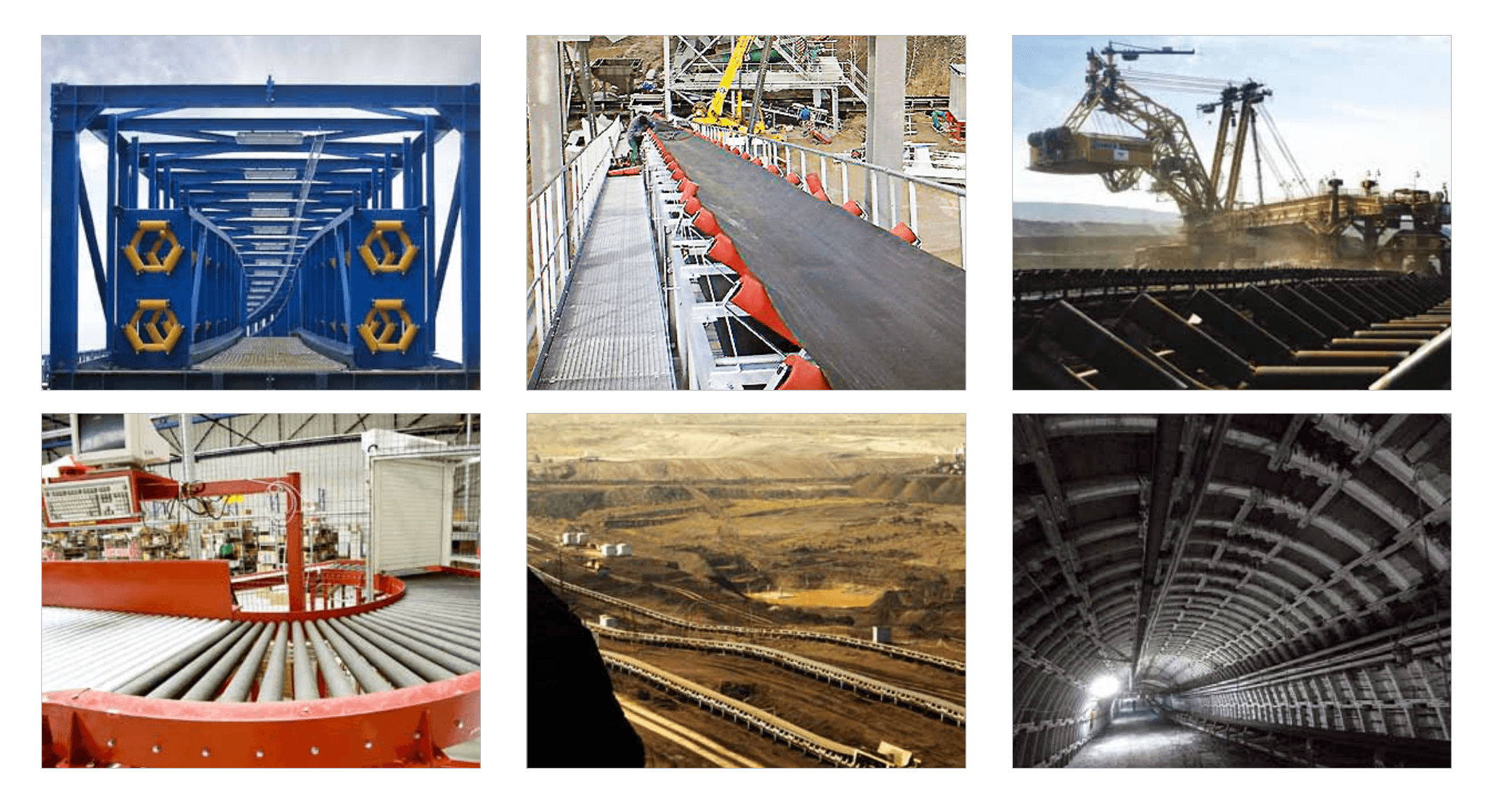

Applications:

RIP STOP Steel Cord Belts are ideal for industries such as mining, power plants, ports, cement plants, and other heavy-duty bulk material handling applications. They provide unmatched durability, safety, and performance under the toughest working environments.
