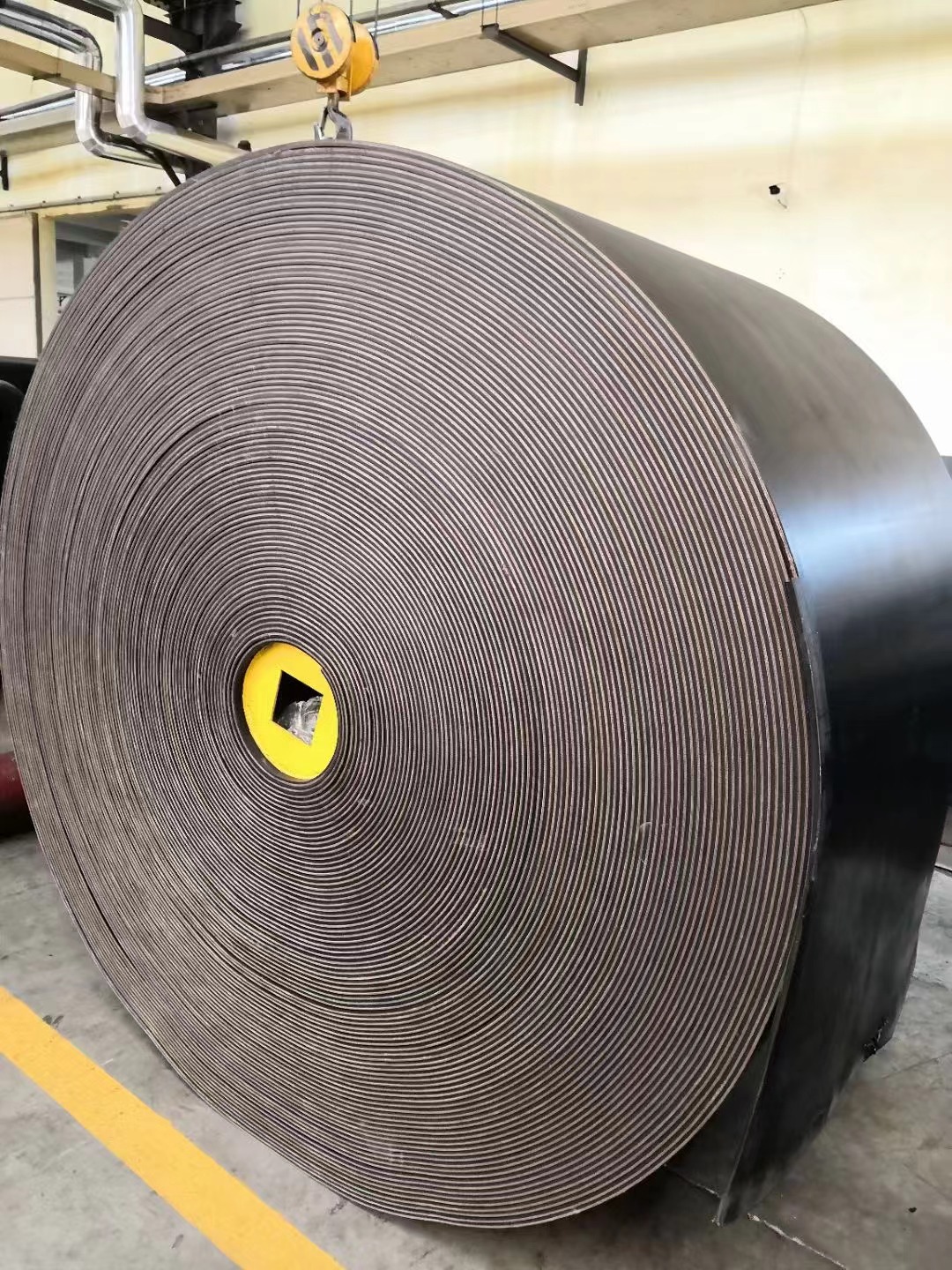

RipCore Aramid Tear-Resistant Conveyor Belt
We are thrilled to unveil our latest innovation – the RipCore™ BD Aramid Tear-Resistant Conveyor Belt. This groundbreaking product represents a significant advancement in the field of conveyor belt technology. Designed with high strength aramid fibers, this conveyor belt sets new standards for durability and performance.
Key Features:
- Enhanced Strength and Durability: RipCore™ BD Aramid Conveyor Belt boasts exceptional strength, making it highly resilient against high abrasiveness and varying bulk densities ranging from 1.1 t/m3 to 2.7 t/m3.

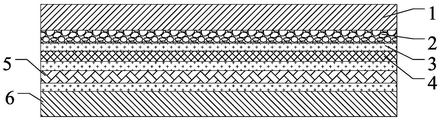

- Innovative Construction: Our conveyor belt is composed of upper and lower cover layers, with an inner core layer strategically positioned between them. The core layer features aramid and reinforcement layers, ensuring optimal strength and longevity.
- Specialized Design: The aramid layer consists of aramid cords aligned along the length of the conveyor belt, ensuring uniform strength. These cords are complemented by parallel steel wires, enhancing overall stability and performance.
- Resilience in Challenging Conditions: RipCore™ BD is engineered to excel in challenging conditions. It can withstand falls from heights up to 1000mm, even when conveying materials with high humidity or exposure to atmospheric precipitation.
- Efficiency and Energy Savings: Our innovative design results in reduced weight, which translates to a 10% to 20% decrease in overall weight compared to similar conveyor belts. This reduction in weight not only enhances efficiency but also contributes to energy savings.
Towards New Horizons
Applications:
RipCore Aramid Tear-Resistant Conveyor Belt finds its application across diverse industries including industrial, aviation, mining, sand and gravel, cement production, power plants, and steel manufacturing.
Advancing the Industry:
In line with our commitment to innovation, we have developed RipCore Aramid Conveyor Belt to address the industry’s evolving needs. Its superior construction and exceptional durability make it ideal for long-distance conveyance, and it can significantly reduce maintenance costs. The belt’s unique properties also extend its service life, contributing to enhanced economic benefits.
Join us as we usher in a new era of conveyor belt technology with RipCore Aramid Tear-Resistant Conveyor Belt. For more information or to request a sample, kindly reach out to our team. We are excited to help you explore the future of conveyor belts.
Application of aramid conveyor belt
At present, aramid conveyor belts have been widely used in different fields in many countries around the world, such as thermal power plants, phosphate mines, coal mines, gold mines, steel plants and so on.
RipCore Aramid Conveyor Belt

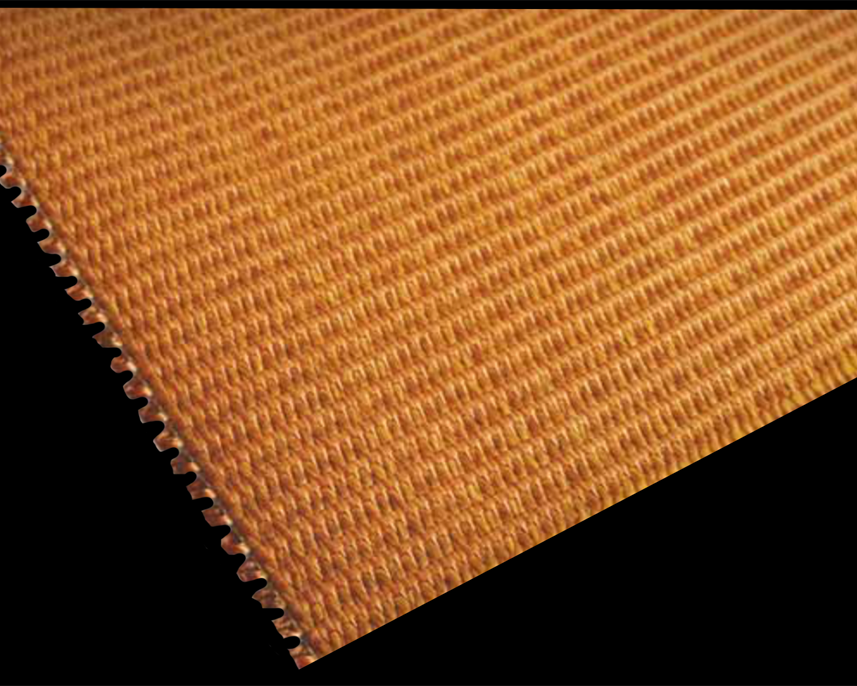

At present, the aramid conveyor belt generally adopts single-layer skeleton structure, aramid yarn is used in the warp direction, in a straight line, and nylon curtain line is used in the weft direction. The main structures of aramid fabric are cord fabric structure and straight warp and straight weft structure.
| Technical Specifications | Specification | Unit | BD400 | BD500 | BP630 |
|---|---|---|---|---|---|
| Structure | 2/2 Twill | 2/2 Twill | 2/2 Twill | ||
| Impregnation Method | RFL | RFL | RFL | ||
| Breaking Strength | Warp | N/cm | 350 | 350 | 350 |
| Weft | N/cm | 450 | 520 | 660 | |
| Warp Curling | % | – | – | – | |
| Square Meter Dry Weight | g/m2 | <450 | <540 | <660 | |
| Bonding Strength | N/mm | 7.8 | 7.8 | 7.8 | |
| Thickness | mm | 2.35 | 2.8 | 3.4 |
