Rough Top Conveyor Belts with Softgrip Top Layer

Rough top conveyor belts have a wide application range. Suitable for conveying easily-deformable or fragile goods such as parcels, paper sacks and cardboard boxes, particularly on conveyors operating on an incline, unlike smooth conveyor belts, the rough-top belts have covers that provide maximum grip to the goods being conveyed. They will cushion the load, absorb vibrations and minimise any impacts.

wide application range.

Rough Top Conveyor Belts, Softgrip Top Layer
Rough Top Conveyor Belts, Softgrip Top Layer

Cushion the load

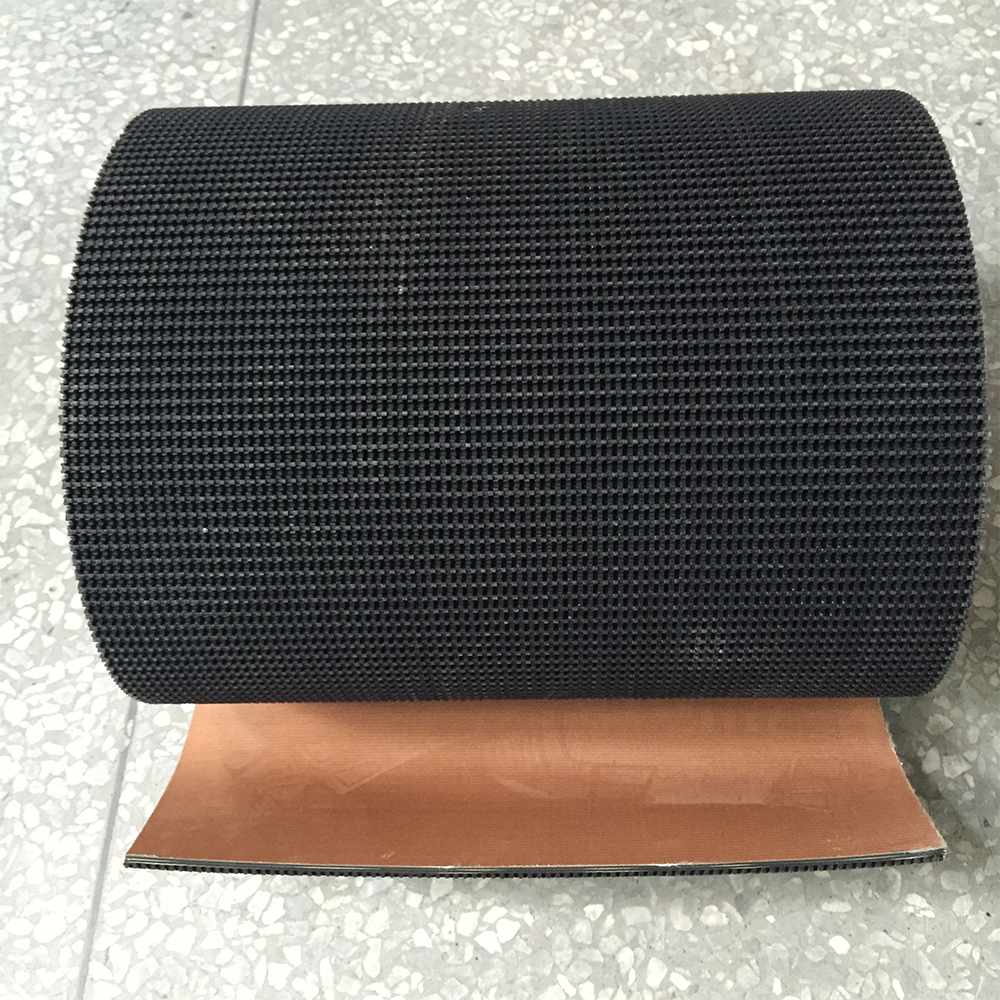

The Rough Top Conveyor Belts with Softgrip Top Layer covers have a rough rubber print on the top cover. This is applied through a special manufacturing process using impression fabric that is similar to a mould. The back of the belt comes with or without a rubber cover – known as a fabric-back or dry-back belt.

For good tensile strength and low elongation, the carcass usually consists of two, three or four plies of synthetic polyester-nylon (EP) fabric.

Available in a selection of widths, ranging from 500mm to 1600mm, our belts are manufactured with moulded or cut edges and are usually supplied with DIN Z, DIN Y, or Grade N covers for general applications.

Special compounds including MOR are available on request.

Rough top  was designed for the transportation of fragile or easily deformed materials  such as glass, paper bags, cardboard boxes, etc.. and can be used at angles up to 30° – 35° degrees, depending on the material to be transported, in a temperature range between -30°C … +70°C.

Slip resistant surface is ideal for application on inclined plane.

Dimensions Width, mm 800 – 1600 ± 1%
500 – 1600 ± 1%
Thickness of belt , mm 6 – 12
Thickness of covers, mm On customer’s demand
Deviation fromthickness Belt Under 10 mm ± 1 mm
Over 10 mm ± 10 %
Rubber cover Under 4 mm – 0,2 mm / + free
Over 4 mm – 5 % / + free
Length, m On customer’s demand
Characteristics ofinsertions Insertions number 2 – 4
Type of insertion EP 80 EP 100 EP 125 EP 160 EP 200 EP 250
Tensile strength, kgf, (for 50mm*200mm) Longitudinal 500 800 800 1000 1200 1500
Transversal 250 350 350 400 400 400
Adhesion, kgf/cm, min between plies 5
between insertions and rubber covers 4,5
Edges cut edges
Special features · Cushioning effect absorbs vibration and reduces slippage· Low friction coefficient with uncovered bottom surface· One ply or three plies of synthetic fabrics provide high strength and flexibility
Breaking force of conveyor belt,(kgf/cm) It is given by the type and number of insertions
