Rubber conveyor belt MOR grade

sidewall belt conveyor

Rubber conveyor belt MOR grade

Rubber conveyor belt MOR grade

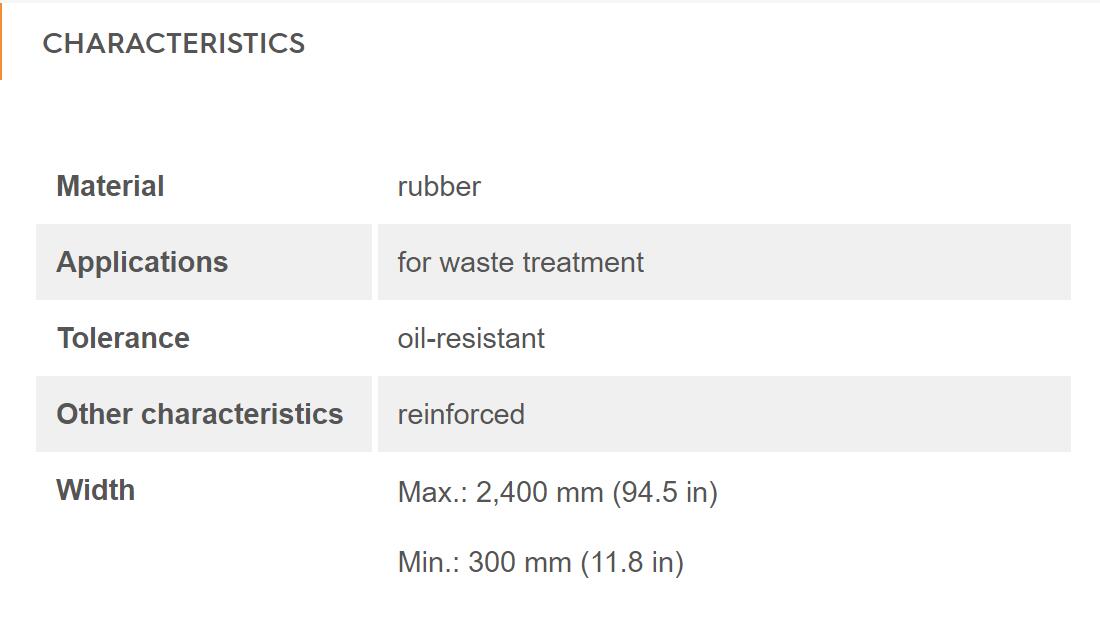

Rubber conveyor belt MOR grade , TYPE: oil-resistant elevator belt for waste treatment

Material: rubber

Tolerance: oil resistant

Applications: This tool is mainly used for mining, power plant, construction, and food industries applications.

grade: MOR

Character

– Less Stretch

– High Impact Resistance

– High Tensile Strength

– Excellent Troughability

– Suitable for medium, long distance and heavy load transportation of materials.

The conveyor belt MOR grade series is configured in a width of 300 to 2 400 mm .

The oil-resistant conveyor belt has a moderately oil-resistant cover. It is suitable for products with low contents of animal and vegetable fats, or oils from grains, rape and tailings, compost and fodder mixtures. It is lightweight yet sturdy enough to do the required task

Carcass Fabric Structure Type No.of Plies Thickness of cover Belt Width (mm) Warp Weft Top Bottom EP Polyester Nylon-66 EP80 2-8 3.0-6.0 1.5-4.5 300-2400 EP100 EP125 EP150 EP200 EP250 EP300 3-6 EP400 EP500 3-5

chevron belt specification
chevron belt conveyor design
chevron belt conveyor design
chevron belt conveyor design

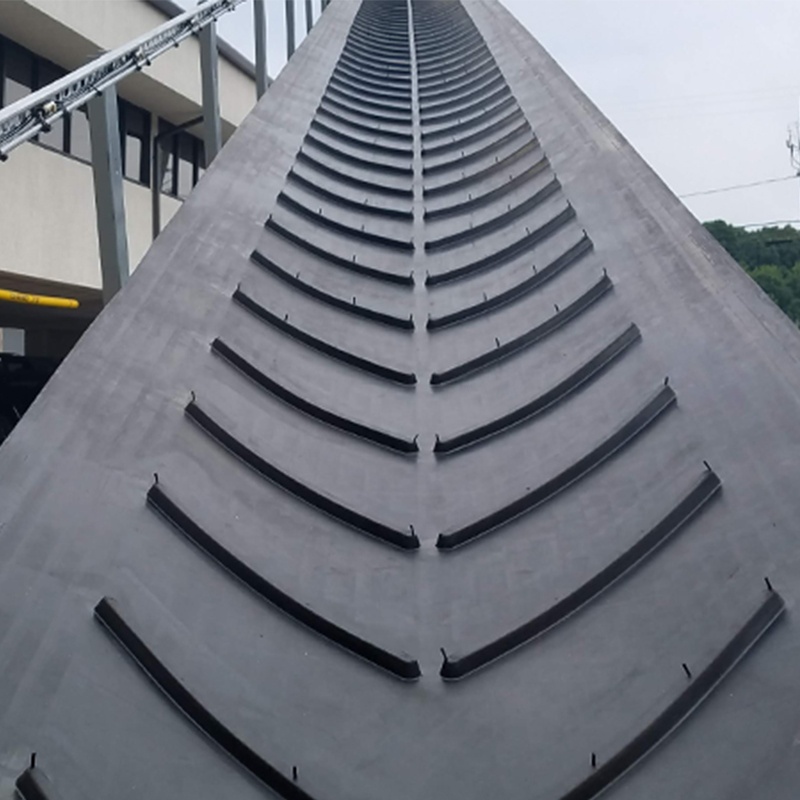

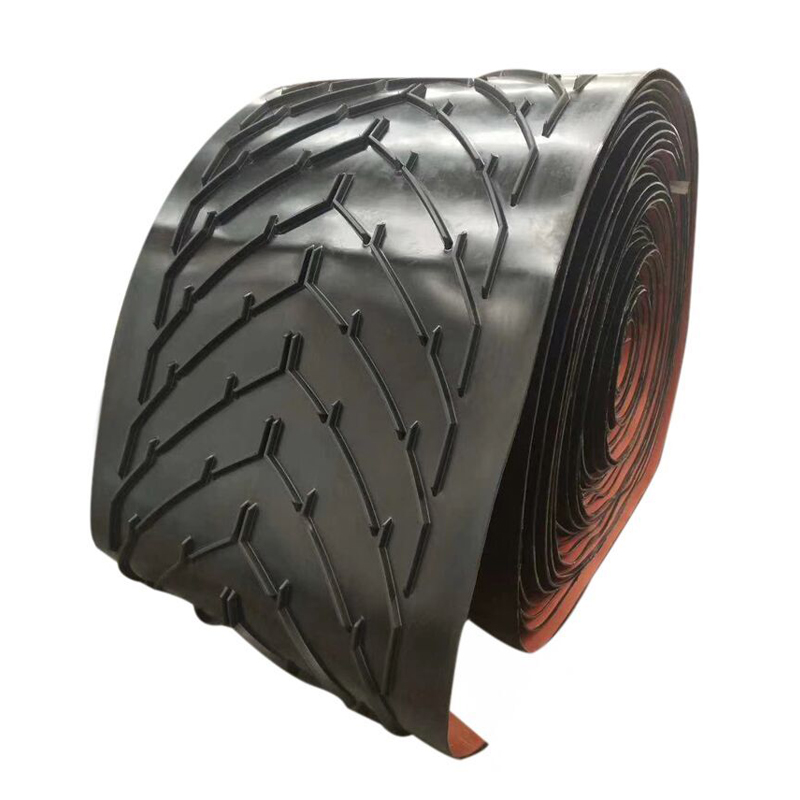

rubber conveyor belt MOR grade Chevron Conveyor Belts are precision designed and developed for providing desired space-saving on steep inclines which can go up to 40 Degrees. In such situations, these conveyor belts are designed to deliver enhanced load carrying capacity in bulk with lump size of up to 150mm.

A flat conveyor belt works fine when conveying material up to a certain angle. However, when the angle gets too steep, material may start to slide off. That’s when you need a chevron conveyor belt. Also known as escort belts, they have a cleated surface that keeps loose material in place, even at steep angles.

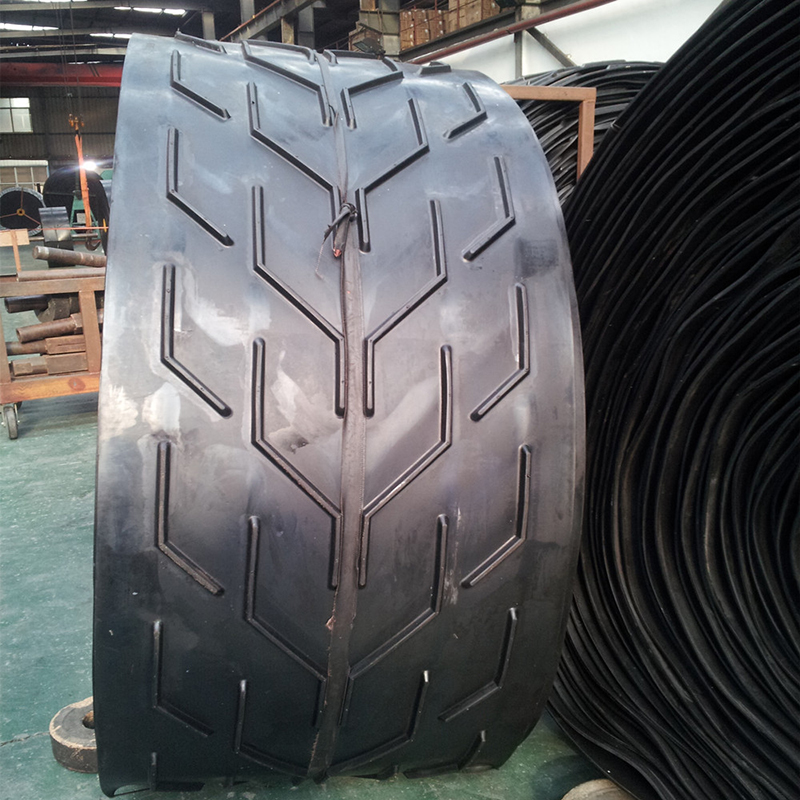

 Chevron Pattern Conveyor Belt Features

1. Excellent elasticity

2. Anti-impact

3. High-adhesion

4. Good flexibility

5. Trough ability

6. Better stability of size

7. Resistance to water

Advantage :

Some of the standard features of these conveyor belts include:

For meeting the demands of high capacity conveying at steep angles

Designed to prevent load slippage or roll back of products while conveying

Comes with cleats that are integrally molded with top cover rubber that prevents separation from belt

Cleats also helping in achieving high abrasion resistance as well as elastic rubber compounds for desired flexibility

Can be offered in different cleat heights as well as widths depending on application requirements

Can be made available in varied finish design specifications

Following precision design standards that ensure belt has smooth run on conventional return idlers, thus needing no conveyor modification

Belt types

Types: Open V, Closed-V, L type, H type, Y type, A type and F type, etc.

Width: 400MM-1200MM

Thickness: 4-50mm

Types: EP80-EP630

Feature: Good adhesion and long working life

Application Areas:

Wood Chips

Sand & Gravel

Heavy Duty Scrap metal

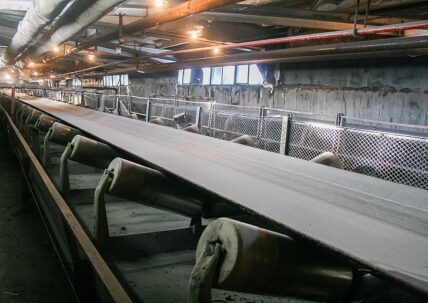

Minerals – Coal & Ore

Materials – Fine Coal & Grains

Waste & Recycling Plants

Road Construction

Crushing Industries

Bagged Materials

Steel Pellets

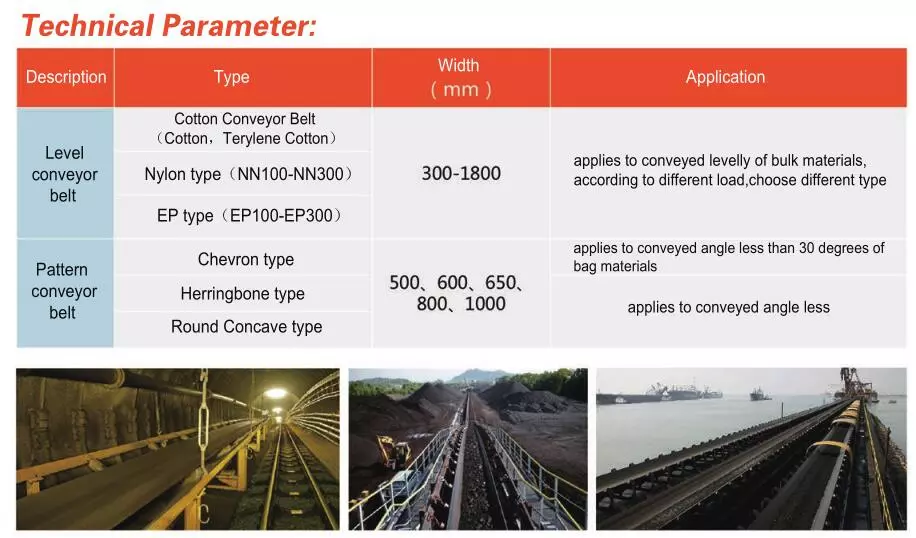

H type conveyor belt chevron
