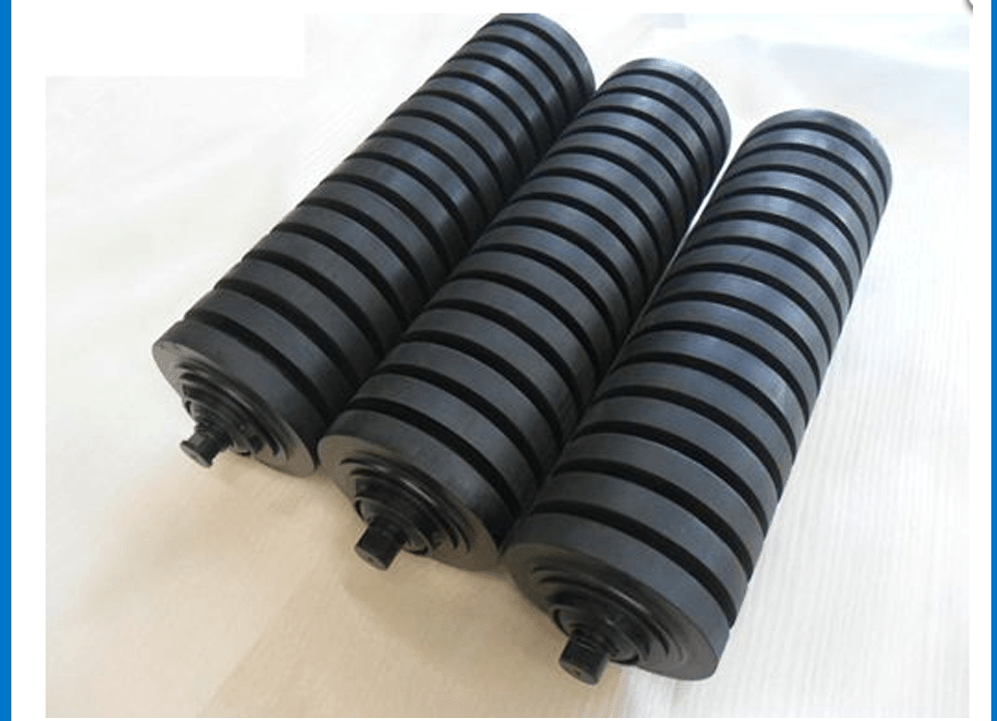

Rubber disc impact roller conveyor
Product Description
Monster a professional Rubber disc impact roller conveyor factory. We have 15 years experience in conveyor designing, manufacturing, assembling and maintenance of full conveyor system.
| Life time | 50000 H |
| Management system | ISO 9001: 2000; ISO 14001: 2004 approved |
| Main market | Europe,American,Australia,Middle east |
| Service | Design/OEM/ Label |
| Finish | Painting/Rubber /steel screw/galvanized |
| Standard: | CEMA;AUS;JIS;DIN;GB-10595-89 standard,ISO,GB |
| Pipe thickness(mm) | from 3.0mm to 18mm |
| Life time | 50000H |
| Material Feature | Water, wear, dust and corrosion resistance |
| Load Capacity | 9000ton/hour |
| Supply capacity | 1000000pieces/year |
| Package | Plywood cases |
Name: Mine Belt Conveyor outdoor Impact disc rubber flat rubber HDPE steel stainless steel trough carry return weigh Idler Roller Rolls.
| Roll Dia. mm |
50 | 63.5 | 76 | 83 | 89 | 102 | 108 | 114 | 127 | 133 | 139.8 | 152.4 | 159 | 165.2 | 177.8 | 190.7 | 194 | 219 |
| Length | 150mm–3500mm; | |||||||||||||||||
|
SPECIFICATIONS
|
|||
|
Diameter
|
φ89, φ102, φ108, φ194 or custom
|
||
|
Length
|
145mm-2800mm or custom
|
||
|
Tube
|
Q235(GB), Q345(GB), welded with DIN2394 standed
|
||
|
Shaft
|
A3 and 45# steel(GB)
|
||
|
Bearing
|
Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
|
||
|
Bearing Housing/Seat
|
Cold press working fit ISO M7 accuracy Deep Press steel with raw material fit DIN 1623-1624 standard
|
||
|
Lubricating Oil
|
Grade 2 or 3 long-lasting lithium greasae
|
||
|
Welding
|
Mixed gas shielded arc welding end
|
||
|
Painting
|
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
|
||
Features
1) Rubber disc impact roller conveyor with Solid design, suitable for various production lines.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
