Rubber Pressurized Bag for Conveyor Belt Vulcanizer

Rubber Pressurized Bag for Conveyor Belt Vulcanizer

Product Feature:
1 appearance of clean, the entire film appearance of a heated vulcanized rubber molding, the thickness of only 2.5mm, flexible, can be curled material.
2 safe and reliable, as a result of my company to develop integrated rubber heating film is sealed the whole state, it can effectively cut off the external water, steam and other factors to prevent short circuit, reduce insulation, and even leakage and other accidents. The old-fashioned heating plate is used in a number of electric heating in parallel, the wiring port and more difficult to reduce the failure rate.
3 temperature uniformity, the company developed one integrated heating rubber film inside the heating wire evenly dense and S-shaped distribution, so the heating plate in each part of the heating temperature difference of ± 0.5 ℃, which can guarantee the quality of joints. The old-fashioned heating plate because the electric heaters in parallel, there must be 1-2.5cm gap between the two groups of electric heaters, and the surrounding frame parts of more than 2cm range can not produce temperature, can not produce the temperature range can only rely on electric radiator Temperature transmission, it is difficult to ensure that all parts of the heating plate temperature uniformity.
4 fault repair time is shortened, I produced the rubber heating film and the heating plate for the same size, wiring is only a hot plate socket at the wiring, compared to the traditional manufacturers in parallel with the way this product can reduce a lot of wiring parts, thus Reduce the product of the accident rate. Such as the use of the process of problems, maintenance only need to replace my company’s backup electric film heating plate under the original electric film can be. Replacement process is very simple and efficient, will not affect the progress of the joint process.

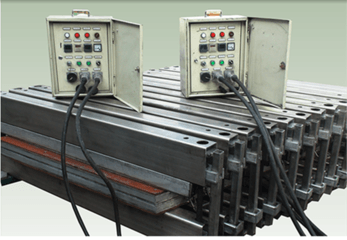

1000X830 hot vulcanizer-machine-for-conveyor-belt

1400X830 hot vulcanizer-machine-for-conveyor-belt

1400X1000 hot vulcanizer-machine-for-conveyor-belt

Rubber Pressurized Bag for Conveyor Belt Vulcanizer Technical Parameters:

1.Machine Maximum size: from 650MM-4200MM;
2.Voltage: 380V 660V 480V 440V 415V 400V or 220V;
3.Fast Cooling time: 5 minutes (from 145 degrees down to 70 degrees or less);
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 50 minutes;

5.Vulcanizing pressure:1.8MPa (details refer to users’ specifications and factory markings);
6.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
7. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
8. Make clear for model and specification of product and indicate width and tensile strength of rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.

Rubber Pressurized Bag for Conveyor Belt Vulcanizer  Application:
Our products are mainly applied to industries for splicing and repairing for conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry , tobacco ,and food automatic line field
