Sidewall conveyor belting with cross rigid

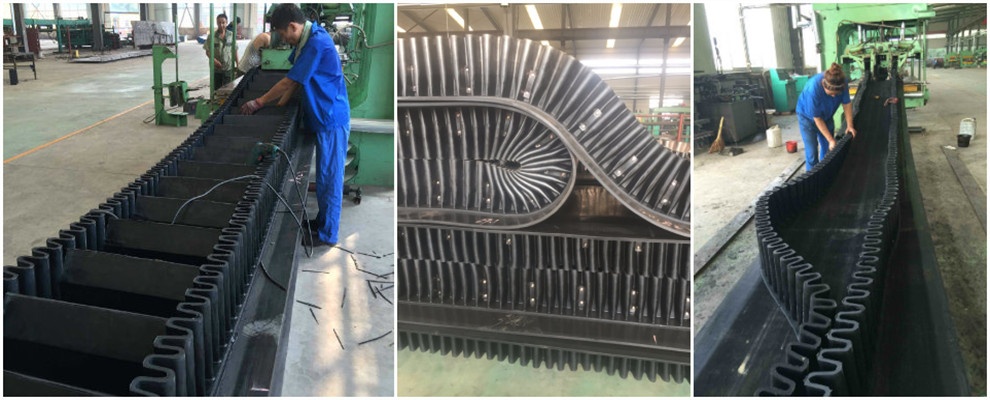

Sidewall conveyor belting

Sidewall conveyor belting must be able to withstand the extremely high stress and repeated flexing that occurs in high capacity steep-angle conveying. That is why our cross-stabilized base belts have been specifically designed by our engineers using the highest quality polyester fabrics to give cross rigid values with very low elongation.

The rubber covers protecting the carcass have outstanding abrasion resistance and tear strength. Just as importantly, our sidewalls and cleats are manufactured using high abrasion rubber, reinforced by a diagonal layer of fabric that creates an excellent combination of elasticity and strength.

super-strength super-strength sidewall belt

Sidewall conveyor belting, Cross-Stable Conveyor Belts | Cross-Rigid Conveyor belts

The use of XE reinforcement within the sidewalls ensures maximum elongation (stretch) of the fabric at the flexing points while retaining a high tensile strength. All of these features add up to create sidewall belts that are more durable, lower maintenance and longer lasting than any other sidewall belt on the market.

Cross Rigid Conveyor Belt

XE Conveyor Belting, Cross-Stable Conveyor Belts

EM: The belt frame consists of crosswise stiff plies only. It is ideal for low-medium intensity work.
XE: [highlight]The belt frame consists of a combination of EP plies and 2 crosswise stiff nylon plies placed above and below the original EP core (the required rigidity, in fact, is only obtained with two plies since using one ply only is not enough). This gives high stiffness and good work load to the belt. Suitable for medium heavy-duty work.[/highlight]
XESC: The belt body consists of a combination of EP plies and 2 crosswise stiff metal plies placed above and below the original EP core. This gives very high stiffness and good work load to the belt. Suitable for heavy-duty work with significant height
XEST: The belt body consists of a combination of metal frame and 2 crosswise stiff metal plies placed above and below the original metal core. This gives very high stiffness and high work load to the belt, and

Reference models and specifications

Available in
Belt type Covers (mm) Belt width
XE 400 / 3 4 + 2 400 – 1 450 mm
XE 400 / 3+2 4 + 2 650 – 1 450 mm
 XE 250 / 2 2 + 0 400 – 2 000 mm
 XE 400 / 3 2 + 0 400 – 2 000 mm
XE 250 / 2 Oil & Grease Resistant 2 + 0 400 – 2 000 mm
XE 400 / 3 Oil & Grease Resistant 2 + 0 400 – 2 000 mm

Monster belting | Sidewall conveyor belting with cross rigid
