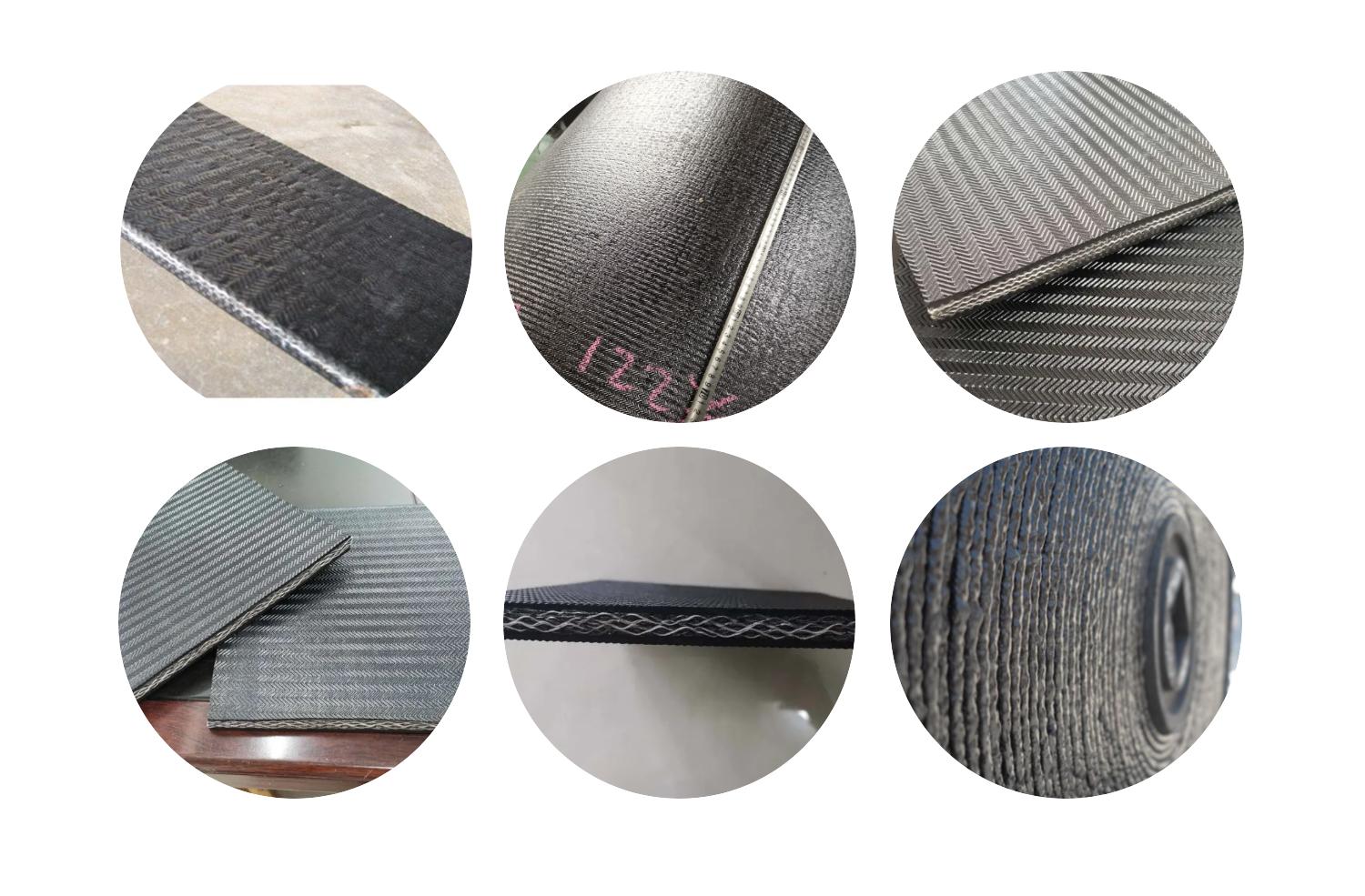

SOLID WOVEN CONVEYOR BELTS (PVC/PVG)

PVC solid woven belt with Black Cover

Underground PVC/Pvg Solid Woven Coal Mine Rubber Conveyor Belt for Belt Conveyor

Rubber Conveyor Belt for Belt Conveyor

Our SOLID WOVEN CONVEYOR BELTS (PVC/PVG) range of solid woven belts come with PVC or PVG covers, and provide excellent impact and tear resistance. They also have excellent flame or anti-static properties depending on your selection.

PVC Solid Woven Conveyor Belt

Ideal for applications in dry conditions at a slope angle of 16° maximum.

Non pressed PVC belt has maximum cover thickness of 0.8 mm.

Pressed PVC type can have cover thickness upto 4mm, giving better properties to the belt, such as impact resistance & longer service life.

PVG Solid Woven Belt with Nitrile Rubber Cover

Suitable for carrying materials mix with water at an angle of up to 20°.

The cover, mainly composed of rubber, provides excellent troughability, service life, and better resistance to wetness, slip, impact & wear & tear.

Arasion Resistant

Knowledge of the abrasion of the transported material is fundamental. In addition to the nature of the material, granulometry and its degree of humidity intervene in its abrasive or cutting behavior.

Some examples:

  • Highly abrasive materials: clinker, iron ore, pyrite, metallurgical coke, superphosphate, lignite, magnetite, quartz, glass powder. Recommended cover: DIN W
  • Medium abrasive materials: anthracite, coal, ash, bauxite, potash, gravel, aluminum, concrete, sand. Recommended cover: DIN Y
  • Cutting materials: scrap, andesite, schist, ryolite, comblanchien, and all granulometry rocks more than 100 mm freshly slaughtered. Recommended cover: DIN X

Fire Resistant:

These belts are manufactured in accordance to the EN12882, to resist flammable environments. They are antistatic and fire resistant for all aboveground applications.

European standard EN 12882 defines the different safety requirements for the different categories of risk identified by the user for the different applications.

Heat Resistant:

Monster’s heat-resistant belts are in compliance with the International Standard for conveying hot material ISO 4195 (1&2).

These belts are used to transport hot materials, with temperatures higher than 176°F (80°C). The maximum recommended temperature varies depending on the processed material.

Oil resistant

These oil resistant belts are used:

  • When oily components are present in the material transported such as fuel oil in coal or ferilizers, lubrication oils in metal recycling, founderies, steel processes, waste industries or in the case of special processes such as glass or chemical
  • For the transport of a chemical component that has good chemical compatibility with nitrile NBR rubber which is the main elastomer used in the rubber covers.

Please contact a member of our team to discuss your requirements, or email us your requirements to: sales@monsterbelting.com
