Steel cable Reinforced Rubber Conveyor Belts

Steel cable Reinforced Rubber Conveyor Belts

Vertical bucket elevator belting
Vertical bucket elevator belting

Steel cable Reinforced Rubber Conveyor Belts Structure:
The belt core is comprised of longitudinally and evenly arranged non-spinning galvanized wire ropes and high adhesive core rubber, with the upper side and lower side covered with rubber layer.
Steel cable Reinforced Rubber Conveyor Belts

Features:
High tensile strength, long service life, short elongation under service, good groove formation property and good anti-flexure property, suitable for conveying materials across long distance, with large volume and high speed.

Steel cable Reinforced Conveyor Belts Types:
According to structure: General type, Impact resistance and Rip resistance transverse type. According to application: Besides General-used steel cord belt, there are some kinds of Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type.

Properties of Steel cable Reinforced Conveyor Belts:

  • Steel cord as tension member (ST 630 – ST 6300)
  • up to 1400 mm bandwidth
  • Few splices & transition areas
  • High breaking load at maximum conveying capacity
  • Wear resistant, rot- and corrosion-resistant, resistant to chemicals and thermally stable
  • Fire retardant and anti-static
  • Little maintenance required

Why does the conveyor belt tear?

Many users do not know much about the conveyor belt is a very convenient tool for transporting goods, but often there will be a tear phenomenon, what is this?

  • The tearing of the belt caused by the impurities in the material:
    The impurity in conveying materials is mainly for coal ports. The quality of coal is not good. The large coal and various impurities in raw coal, such as iron and wood sticks, cause the tear of 70-80%. Therefore, ensuring the quality of source coal is the key to prevent tear.
  • Belt tear caused by improper installation of auxiliary equipment of belt conveyor:
    There are many auxiliary devices for belt conveyors, such as the falling of lining plates, the sharp iron adsorbed by the iron remover, and the improper installation of the sweeper, which may cause tear and scraping to the conveyor belt, and there is no transverse protection structure for the ordinary conveyor belt, so it can not prevent the tearing.

Monster belting | Steel cable Reinforced Rubber Conveyor Belts

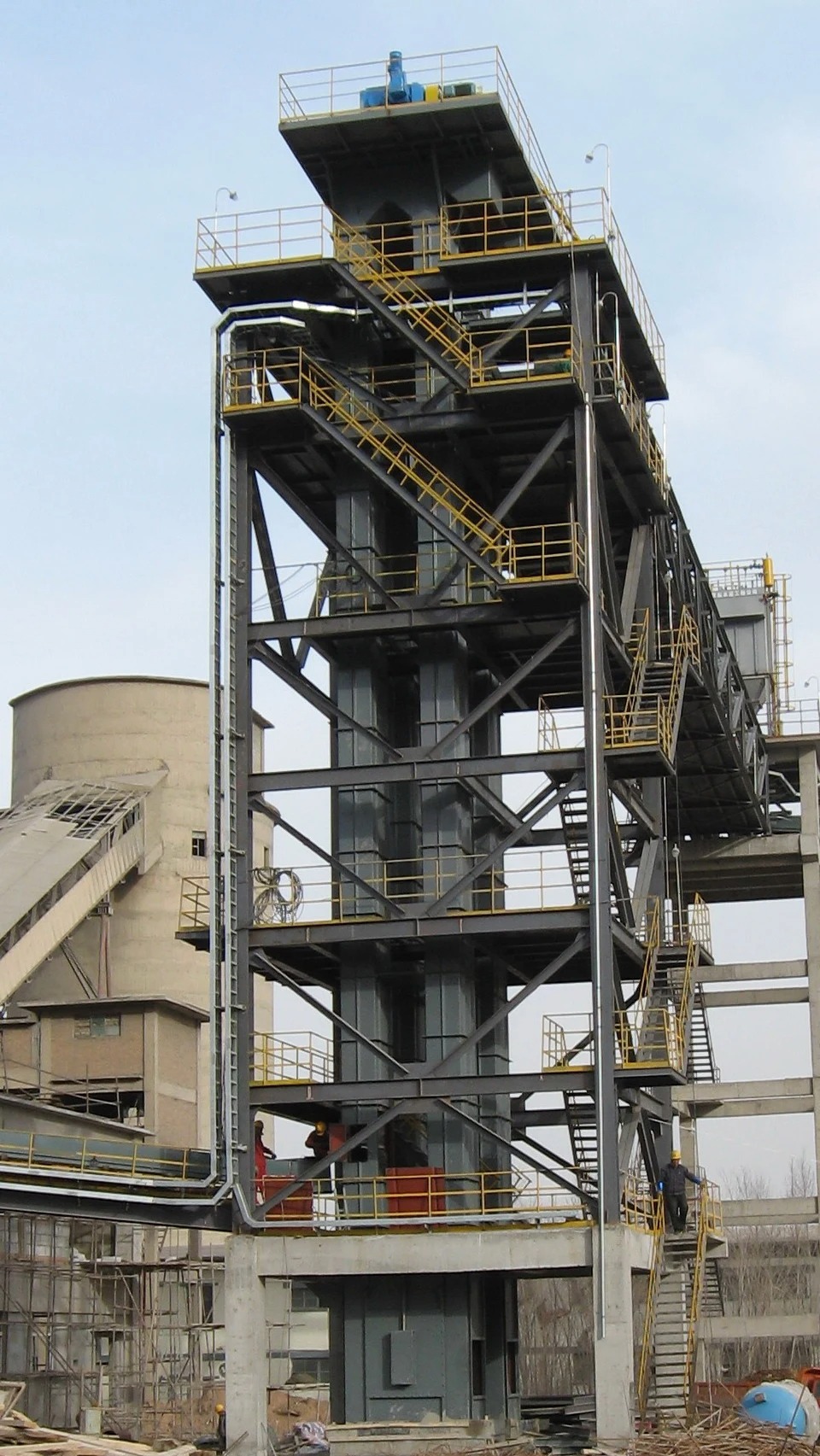

Steel cable Reinforced Rubber Conveyor Belts Application :

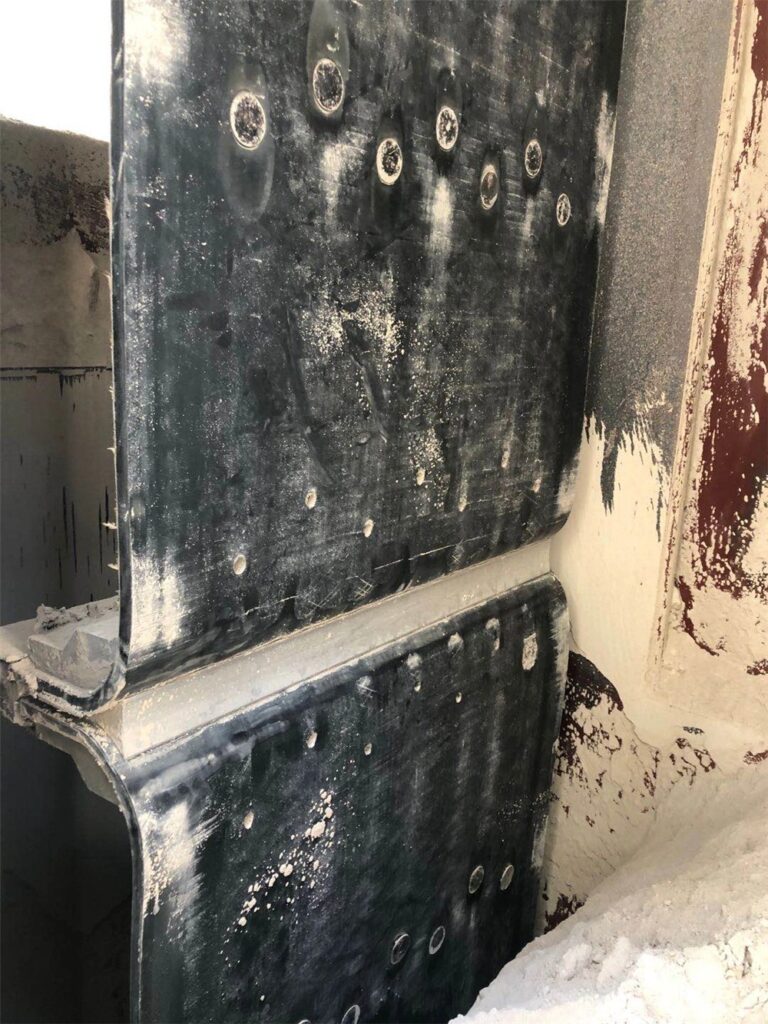

Steel-Cord-Bucket-Elevator-Belt-Used-for-Cement-Material-Handling (3)
Steel-Cord-Bucket-Elevator-Belt-Used-for-Cement-Material-Handling (3)
