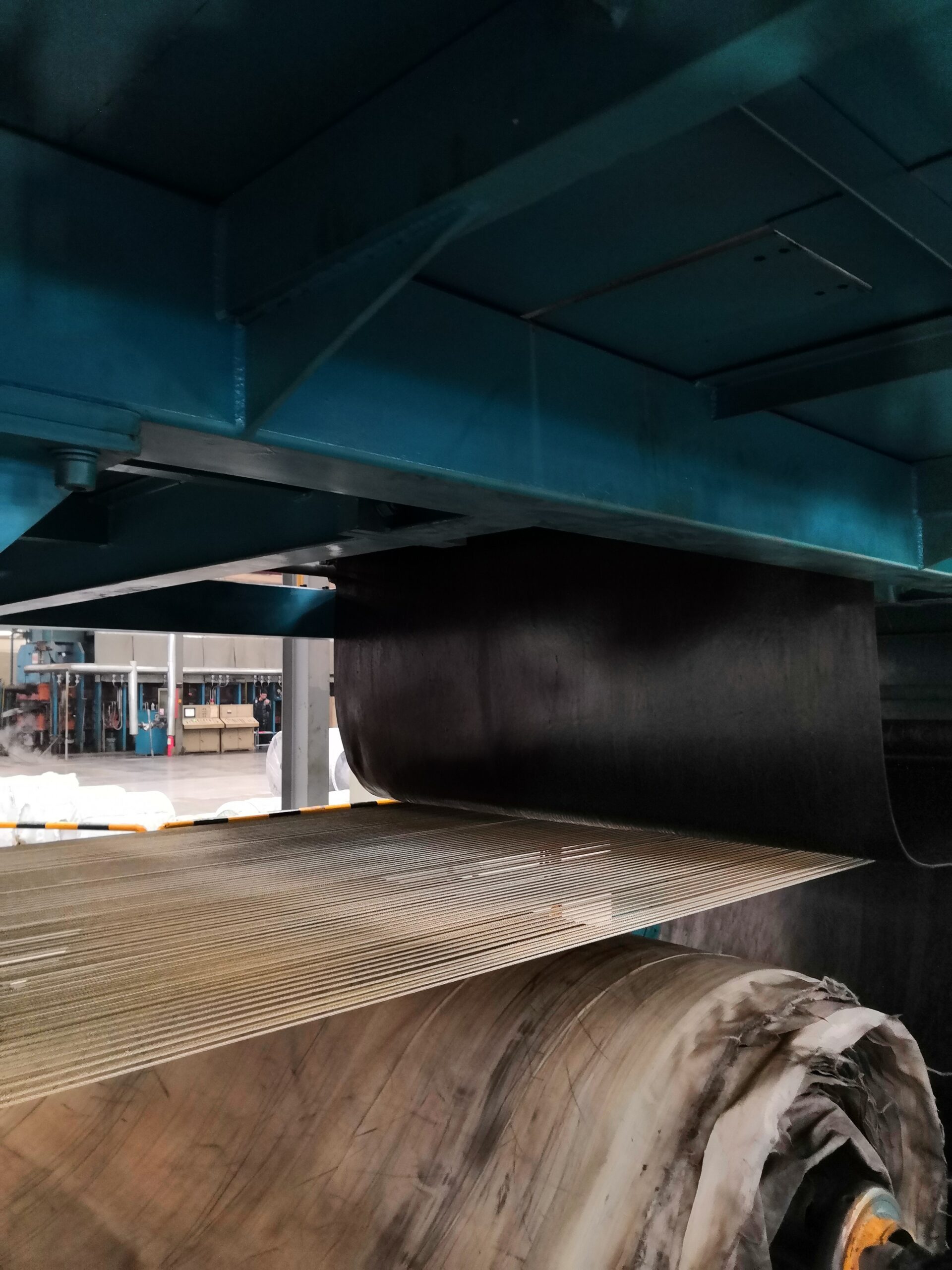

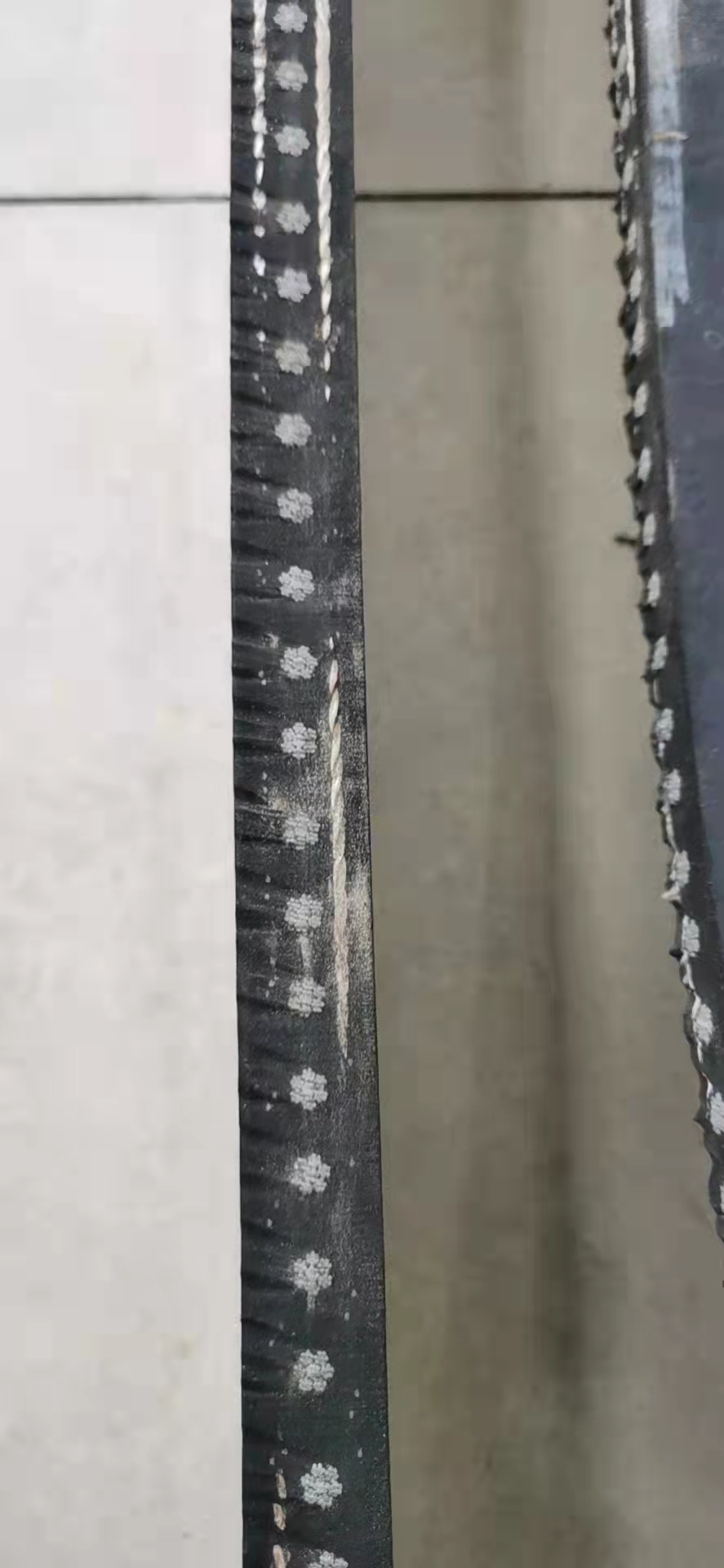

Steel cord conveyor belts are widely used in high strength, long-distance and heavy load transportation of materials, and they are also used in high strength and short distance transportation of materials on special occasions. Steel cord conveyor belt construction mainly use steel core in carcass.

Characteristics:

1. High tensile strength: The belts are suitable for large span, long-distance transportation of materials.

2. Small elongation in use: The belts need only a very short take-up stroke distance.

3. The small diameter of drive pulley: The belt body has a layer of longitudinally arranged steel cords as its skeleton, and thus is resistant to flex fatigue.Therefore, a drive pulley of smaller diameter can be used to make the equipment smaller.

4. High adhesion between rubber and steel cord: The steel cords are coated with zinc on their surface, and also the rubber used has the property of good adhesion with steel cords. Therefore, the rubber is tightly adhered to the steel cords and is resistant to shock and difficult to drop, so the rubber belts are long in life.

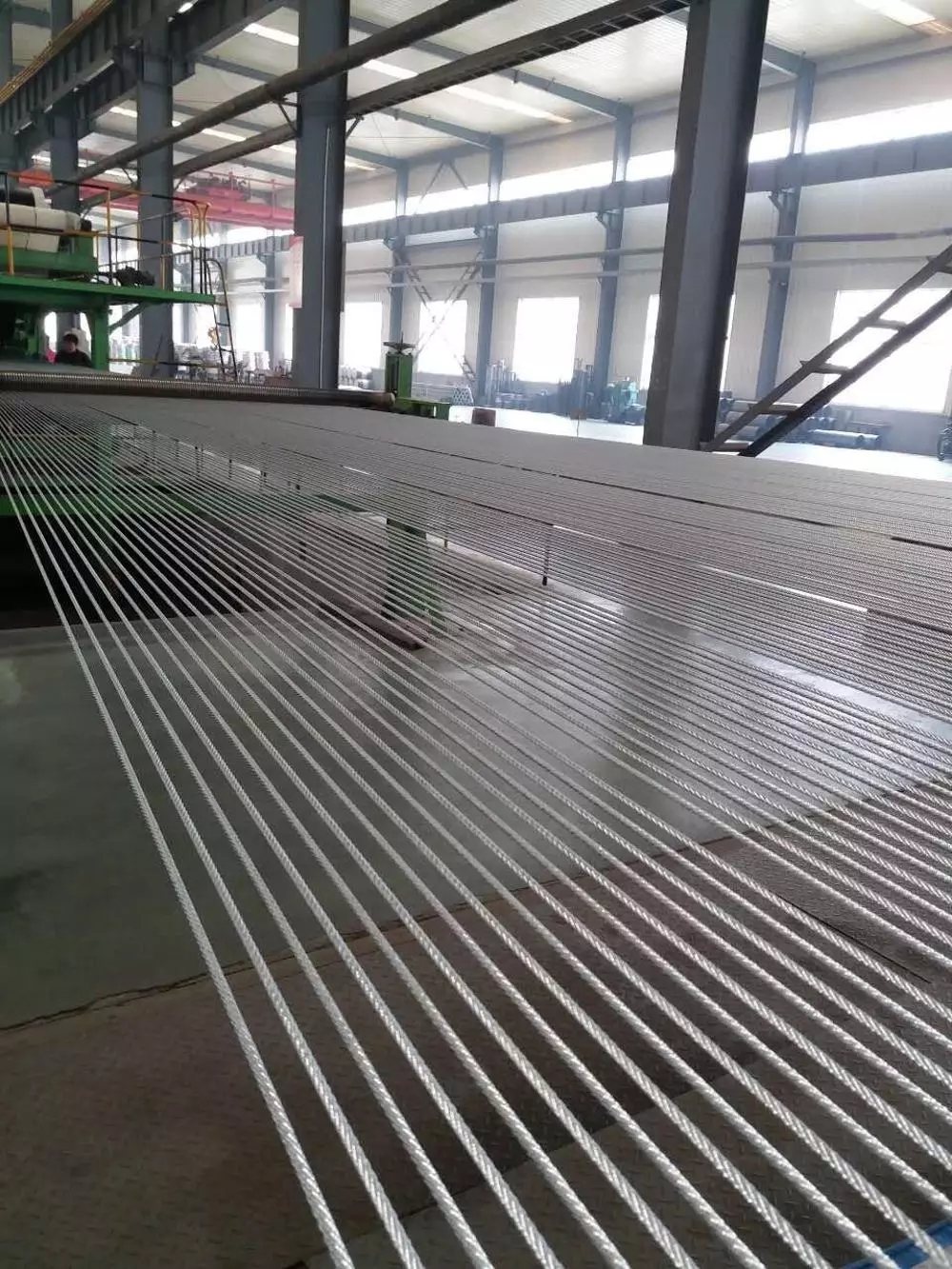

5. Even tension of steel cords: Because of advanced techniques in manufacturing, the steel cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run awry.

6. Steel cord conveyor belt construction with Good trough ability: As the belt body has no transverse skeleton, it is easy to form a deep trough, so the belts can load more materials and prevent the materials from escaping.

7. Inspection of the belt: Users can use X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happening.
