STEEL WIRE STRENGTHEN CONVEYOR BELT

Anti-tear steel wire conveyor belt

The Anti-tear steel wire conveyor belt of bucket elevator is suitable. It can be divided into the following aspects according to the different environment:

Cross Stabilized Conveyor Belts (1)
Cross Stabilized Conveyor Belts (1)

Heat resistant Anti-tear steel wire conveyor belt

The steel wire conveyor belt of bucket elevator is suitable. Features: the temperature of materials can reach 300 degrees and 500 degrees in an instant. Protect the steel wire rope. Because the steel wire rope has stronger heat resistance than ordinary canvas conveyor belt. Heat resistant steel wire core tape is used in the transportation of power plant, steel and other materials

Cold resistant type

Features: the cold resistance has its own unique characteristics. Our specially designed cold resistance formula can make the cold resistance of steel wire rope core conveyor belt reach the low temperature of minus 50. In the low temperature environment, the belt body and steel wire will still not be affected, so as to achieve stable operation. In high-dimensional areas, alpine areas have been used,

Specifications

Tape model
Minimum roller diameter/mm
Tape model
Minimum roller diameter/mm
ST500
500
ST25OO
1250
ST63O
500
ST28OO
1250
ST800
500
ST315O
1400
ST1000
630
ST4000
1600
ST125O
800
5T4500
1600
ST1400
1000
ST5000
1800
ST1600
1000
ST54OO
1800
ST1800
1000
ST63OO
1800
ST2000
1000
ST7000
2000
ST225O
1000
ST75OO
2200
Technical parameters of tear-resistant steel cord conveyor belt
Technology Project
unit
Specification
Longitudinal strength
N/mm
350/500 /630/800/1000/1250/1400/1600
Transverse strength
N/mm
90/90/90/125/125/175/175/175
Steel mesh thickness
mm
3.2/3.2/32/4.5/4.5/6.0/6.0/6.0
Cover thickness
mm
5/5/8/8/8/8/8/8
Under cover thickness
mm
4/4/4/4/5/5/5/5
Tape thickness
mm
13/13/16/16.5/17.5/19/19/19
Tape reference quality/Weight (wear-resistant cover glue)
kg/㎡
15.8/16.4/20.1/22.3/24.4/28/28.7/29.5

Type: Steel Wire Conveyor belt

steel cord belt joint

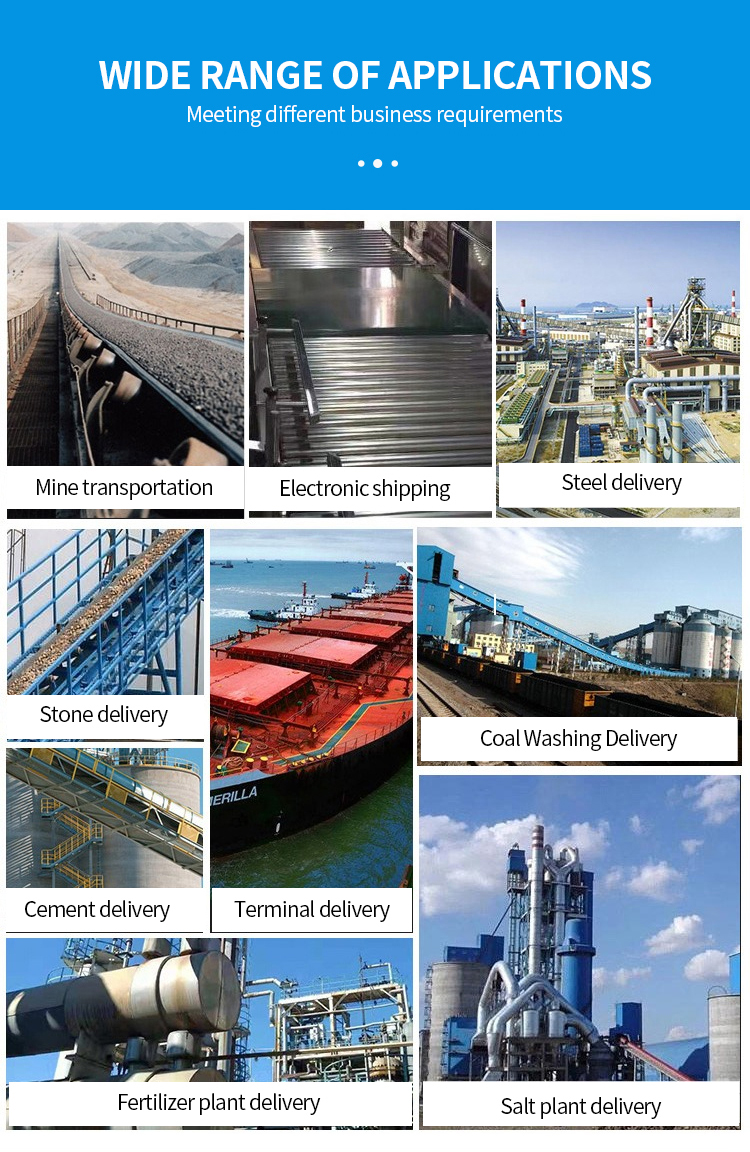

Application:Horizontal transport/mining/metallurgy/industry

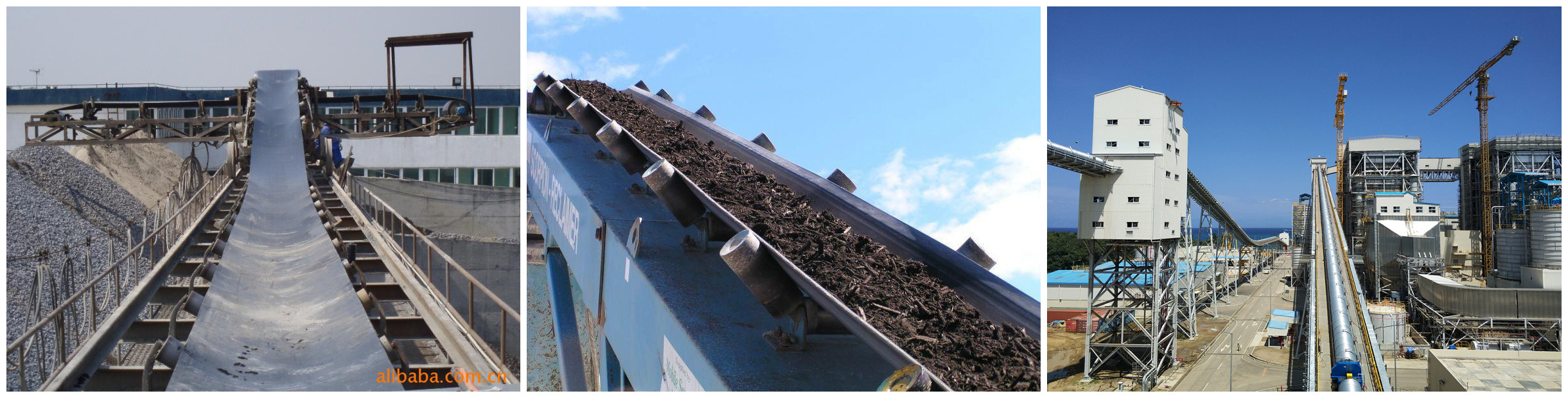

Bucket Elevator belt

General Parameters

Normal Standard:

We can produce all kinds of steel wire strengthen rubber belt according customers’ designation and design the most appropriate belt according to customers’ application. Detailed information please come to us and communicate.

 Main Features

1) Heat resistant—supply 4 types of heat resistant belt, they are T1 type (<100℃ or <212℉), T2 type (<125℃ or <257℉), T3 type (<150℃ or <302℉), and T4 type (>200℃ or >392℉). These types are wildly used in cement and steel industry.

2) Abrasion resistant—supply 2 types of abrasion resistant belt, they are  A1 type (abrasion value<90mm3) andA2 type(abrasion value<60mm3). These types are used for shape and hard material transportation, such as coal, copper, iron mine.

3) Oil resistant—supply oil resistant belt, which is specialized for wood, paper-making, grain transportation.

4) Acid/Alkali resistant—supply belt for chemical material transportation.

5) Cold resistant—supply special belt used in low temperature(>-50℃ or >-58℉) .

6) Fire resistant—supply special belt used in underground coal mine and other fields.

7) Heat & Abrasion resistant—supply special belt used in extreme environment, it can work at 125℃ and abrasion value below 150mm3

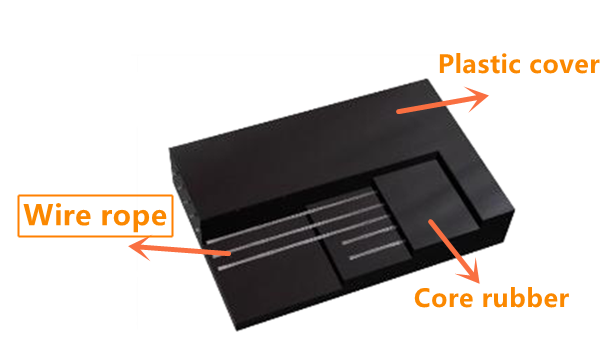

Steel wire conveyor belt

Using galvanized high-strength open steel wire ropes arranged at equal intervals as the skeleton material, the core rubber and cover rubber are added under constant tension and cold pressed, and then vulcanized.
Impact Resistant conveyor Belts
Impact Resistant conveyor Belts

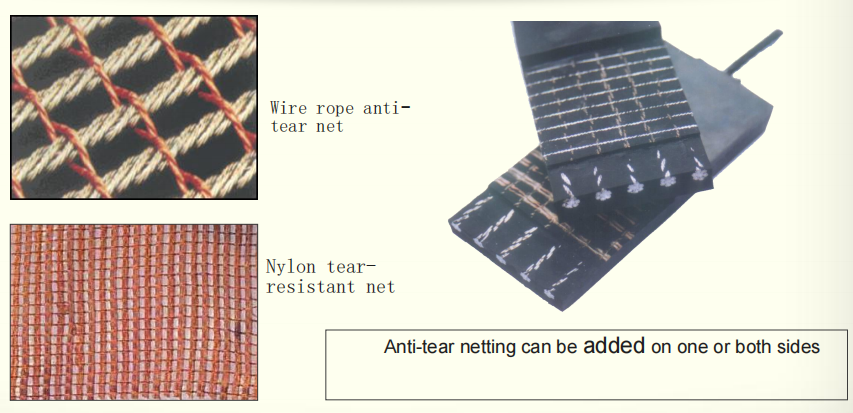

Anti-tear steel wire conveyor belt

The steel mesh of the overall woven structure is the skeleton layer, which can make the IW conveyor belt have good tear resistance and can effectively prevent foreign bodies from puncturing. Various covering rubber types can meet various conveying requirements. begging. IW steel mesh and heat-resistant glue can increase the operating temperature up to 300°C and reduce downtime for maintenance.
TRANSVERSELY RIGID conveyor belts
