Underground PVC/PVG Solid Woven Coal Mine

Underground PVC/PVG Solid Woven Coal Mine

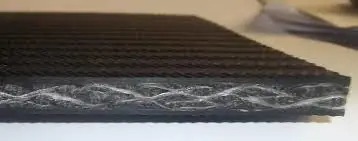

Underground PVC Solid Woven Coal Mine , Solid woven carcass use high-quality polyester filament which is high-strength, low-strength in the longitudinal direction, and the PVC-Pvg-Solid-Woven-Conveyor-Belt high-strength, medium-sized nylon filament in the transverse direction has high strength, small elongation, light body. Dipped with PVG or PVG compound, solid woven conveyor belt no problem of delamination, anti-shock and tear resistance character combined with good trough ability.

Special PVC cover compound has good static conductivity property, and fire retardant character. With cover thickness upto 4mm pressed PVC,  Monster solid woven conveyor belt is more suitable for toughest working condition with moisture or water, it can be used at envornment above -10°C.

PVG conveyor belt is upgrated cover compound to Nitrile rubber, which is more abrasion resistant and more suiable for steep angle conveying of wet material.

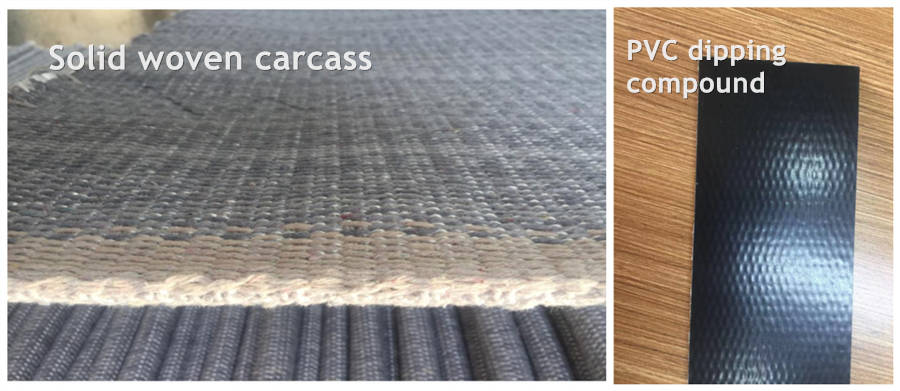

PVC solid woven dipping

Special PVC cover compound has good static conductivity property, and fire retardant character. With cover thickness upto 4mm pressed PVC,  Monster solid woven conveyor belt is more suitable for toughest working condition with moisture or water, it can be used at envornment above -10°C.

PVG conveyor belt is upgrated cover compound to Nitrile rubber, which is more abrasion resistant and more suiable for steep angle conveying of wet material.

TECHNICAL INFORMATION

Type: 680S, 800S, 1000S, 1250S, 1400S, 1600S

This kind of conveyor belt is divided into two types: PVC and PVG.

The table shows nominal figures for minimum warp & weft breaking strengths, belt thickness & weight for a selection of belt types, based on 1mm x 1mm PVC covers on either side. For every additional 1mm PVC, add 1.25kg/sq.mtr for PVC covers. Nominal values with 1+1 PVC covers.

PVG stands for the solid woven belt with PVG cover (nitrile rubber)

PVG type is covered with covers mainly composed of rubber, which further improves the troughability, resistance to wetness and slip, resistance to low temperature, elongation and wear resistance of the belt. Both top and bottom cover are PVG, the belt can be used to carry materials mixing some water at the slope no more than 20 degree,elongate life of belt

PRODUCT QUALITY

  • All-synthetic high tenacity centre warp yarns, for strength and minimum elongation.
  • All-synthetic pile warp yarns, to protect against impact damage, improve adhesion and give superb fastener bedding.
  • Composite weft yarn, to give optimum transverse rigidity and superb fastener holding.
  • Woven selvedge to reduce edge-ware and improve belt life.
  • Complete vacuum impregnation and consolidation of PVC compound through solid woven fabric, to improve tear strength and to reduce ingress of moisture.
  • Special PVC cover, to reduce abrasion and improve carrying capacity through the life of the belt.

PVG TABLE

Class
Rating
Min Tensile
Strength
N/mm
(Warp)
Min Tensile
Strength
N/mm
(Weft)
Carcass
Thickness
Carcass
Weight
Cover Grade
Recommended
Thickness
mm (PVG)
Min Pulley
Dia mm
680 680 265 6.5 8.5 1.5 x 1.5 400
800 800 320 5.9 9 1.5 x 1.5 500
1000 1000 350 7.5 9.7 2.0 x 2.0 630
1250 1250 350 8.5 11 2.0 x 2.0 750
1400 1400 450 9 11.5 2.0 x 2.0 750
1600 1600 450 9.5 12.3 2.0 x 2.0 800
1800 1800 450 9.5 12.3 2.0 x 2.0 800
2000 2000 450 10.5 13.6 3.0 x 3.0 1000
2500 2500 420 12.5 14.5 3.0 x 3.0 1200
3100 3100 420 17 17 3.0 x 3.0 1500

PRODUCT ADVANTAGES

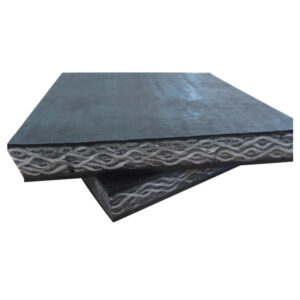

PVC-Pvg-Solid-Woven-Conveyor-Belt
  • Homogenous and integrated belt structure.
  • High tear/rip resistance.
  • High modulus belt, for low operating elongation.
  • Vastly superior fastener holding.
  • Optimum longitudinal flexibility, to allow use of lower pulley diameters.
  • Woven selvedge, to reduce rate of edge wear.
  • Trough ability, designed for belt to perfectly seat on the idlers.

APPLICATION OF PVC/PVG

Underground PVC Solid Woven Coal Mine Widely used in fiery mines i.e. underground coal mines, power stations, chemical and metallurgy industries. It is mainly applicable for the underground well haulage of coal mines, and also the conveyance of materials for metallurgical and chemical industries. it features largely in the high strength, large freight volume and stable conveyance performance.
