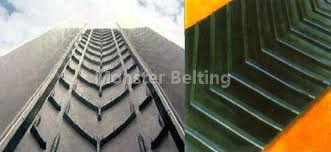

V profile chevron conveyor belt

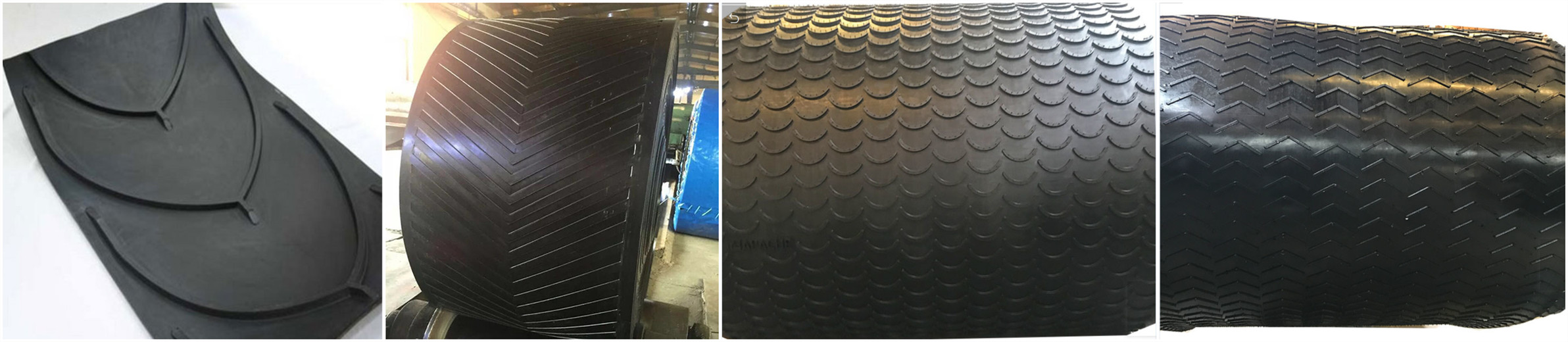

V profile chevron conveyor belt with Paddle Profile Fishbone Toothed Conveyor Belt
1. There is no joint in belt carcass
2. Long service life
3. Cleats and top cover rubber are vulcanized integrally
4. Cleat pattern, angle and pitch are designed elaborately
Types of Special V profile chevron conveyor belt:
1. Open V and closed V and other patterns
2. The depth of pattern is 15mm-25mm higher the surface
3. Each kind of pattern includes three types, high, medium and low
Pattern width: 500mm – 1400mm
We can also produce international standard rubber conveyor belts, such as DIN22102, AS1332, BS490, RMA, JISK6322, SANS1173, etc.
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
DIN 22102 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
(≤1.5mm) | (>1.5mm) | |||||
DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
Standards | Cover Rubber | Adhesion | ||||
Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
(≤1.9mm) | (>1.9mm) | |||||
AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
RMA | Mpa | % | mm3 | N/mm | N/mm | N/mm |
(≤1.6mm) | (>1.6mm) | |||||
RMA-I | 17 | 400 | 3 | 4.4 | 4 | |
RMA-II | 14 | 400 | 3 | 4.4 | 4 | |
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
SANS 1173 | Mpa | % | mm3 | N/mm | N/mm | |
A | 18 | 400 | 70 | 5 | 7 | |
C | 20 | 400 | 150 | 5 | 7 | |
M | 25 | 450 | 120 | 5 | 7 | |
N | 17 | 400 | 150 | 5 | 7 |
