Vertical Conveyor Belt
A vertical conveying belt is for the transportation of bulk materials at very high inclinations or even vertically requires special conveyer systems and solutions. These should be able to convey materials in all shapes and sizes quickly, safely and reliably.

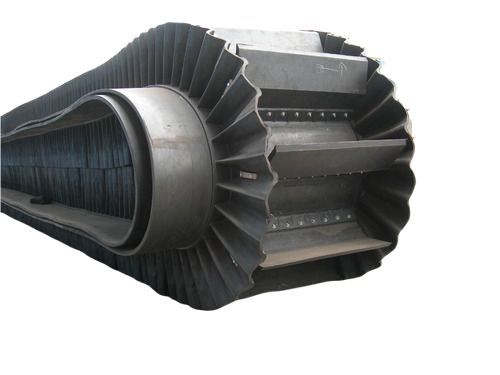

The overall characteristics of the sidewall belt: our company uses the cleats and skirt bolt fixed way, enhance the firmness of the cleats and impact resistance, the cleats with fiber cloth to increase the hardness of the cleats.
The characteristics of covering rubber: the surface covering rubber uses 20mpa high natural rubber mixed with high performance styrene butadiene rubber, carbon black and other synthesis, for the belt of high performance, anti-aging played a very key factors.
Vertical conveying belt/ belt composition: the corrugated sidewall cleat belt is divided into three parts: high performance base belt, high skirt, impact resistant partition. At the same time, it can increase the hardness and tear strength of high-performance baseband.
Solution

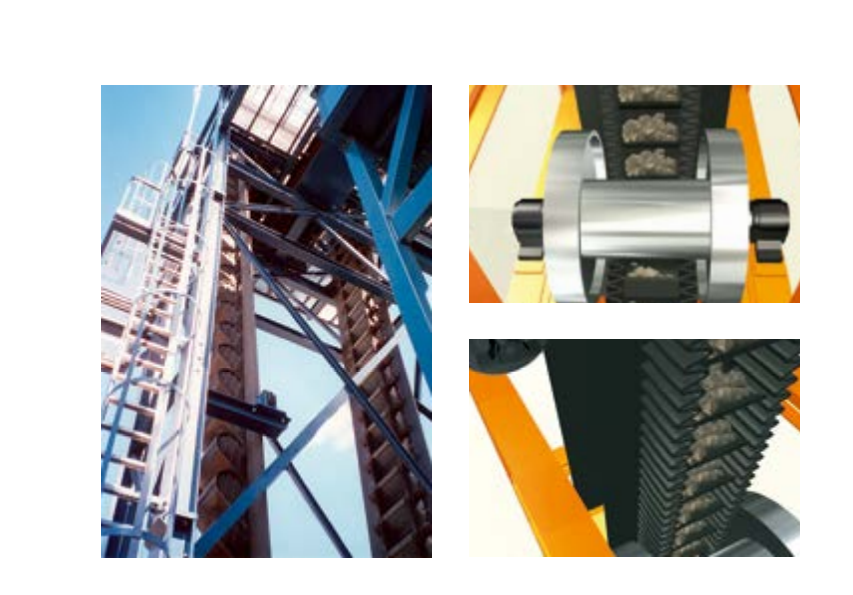

Maximum elevation single-flight conveyor belts
Monster technologies are the ideal solution for the transportation of materials at very high inclination angles or even
vertically. Sidewall conveyor belts are designed for the steep inclined or vertical handling of all kinds of bulk materials – from coarse-sized coal and ore to rock, sand or fertilizers with lump sizes from powdery to 400 mm. Materials can be carried over 500 m in vertical lifts with capacities up to 6,000 t/h.
The conveyor lifting system was developed for deep shaft underground applications in the mining and tunneling industry with a lifting height of up to 800 m in one flight.lifting system can handle capacities of up to 4,000 m3/h and transport bulk materials with lump sizes of up to 250 mm.
Challenge
Underground mining
Underground conveyor belts have to meet particularly strict national as well as international standards, as underground mining leaves no room for error. This is where the issue of fire prevention and extinguishing is of particular importance.
Monster conveyor products, designed for optimum availability and reliability, are utilized in some of the most productive material handling applications worldwide.
Monster terminals are designed and manufactured for the most grueling mining conditions. Critical items such as pulleys, shafts, and bearings are designed for your application by experienced engineers. Power train components, such as motors, gear reducers, and couplings are sized with ample service factors in mind. Our roof-mounted and floor-mounted systems use heavy-duty frames that are matched to your operations to provide the most robust system possible.
Solution
Solid woven conveyor belts for underground application

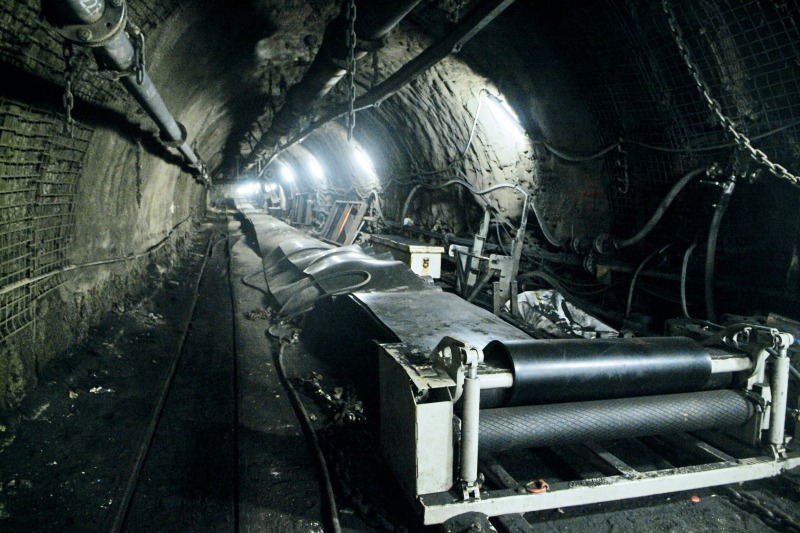

A continuous conveyor belt gradually carries coal from all levels of an underground mine to the surface where it can be loaded into rail ore cars. In a slope mine, the conveyor moves on a diagonal slant.
Monster supplies a wide range of special underground one or two-ply conveyor belts (e.g. standard PVG and PVC belts), one or two-ply fabric belts, which uses various fabric carcasses such as EP, E/P-P,Nylon. All these belts are manufactured with self-extinguishing rubber compounds (e.g. V, FRAS, A, B1, B2, C2, ШTC, etc.) and meet strict national and international standards for underground conveyor belts. MONSTER® combines all the advantages of standard fabric belts and PVG and PVC belts, has an excellent troughability as well as impact and slit-resistance, and fulfils the necessary tough requirements in terms of splice strength with detachable fasteners. However, monster® has none of the disadvantages of PVG and PVC belts, such as wet-slide behavior, a tendency to cracking or high wear. steel cord belts with self-extinguishing rubber compounds are also available in our portfolio.
